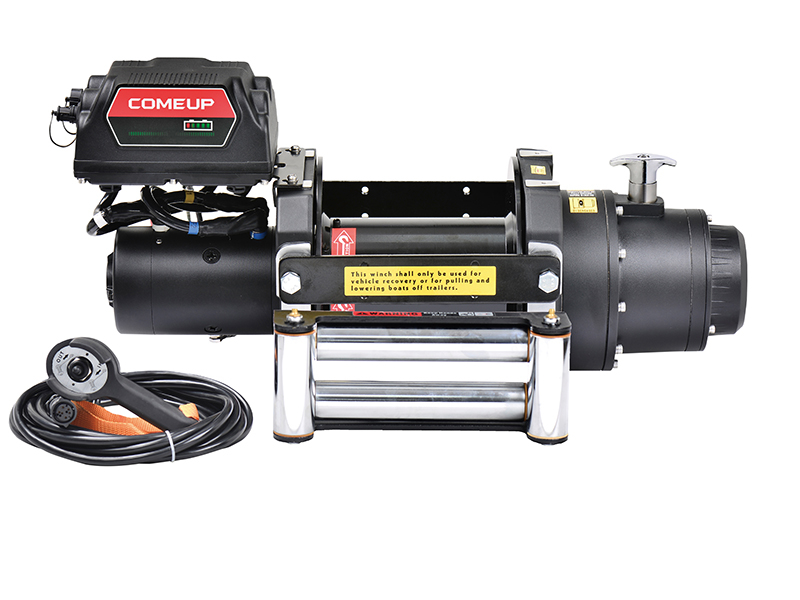

Rhino 15 Pro
6.8 Tonnes Electric Recovery Winch
- Reliable electric winch for commercial, industrial and severe duty applications
- 5,250w/24V series wound motor.
- 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
- Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
- LED Indicator displays detailed winch status while operating.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Easy to turn the T-handle for rapid wire rope payout.

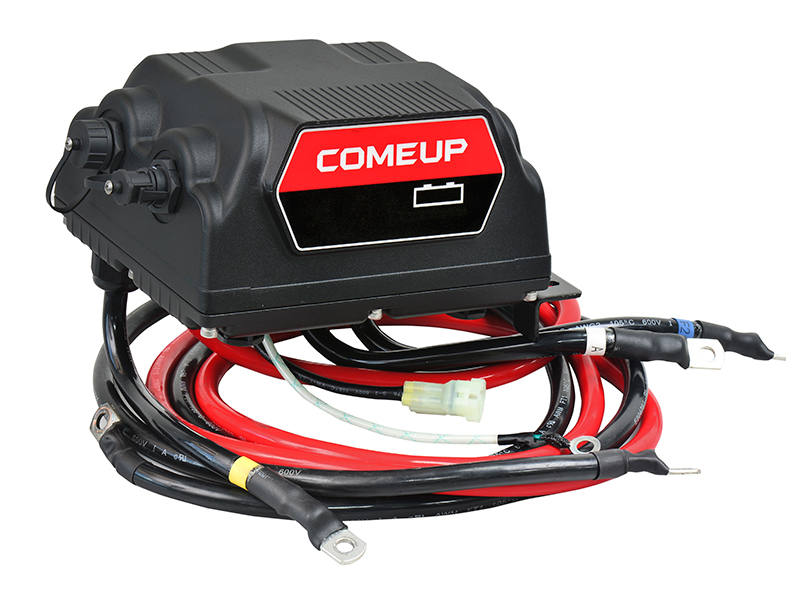

- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards
What's News Link: KAIZEN: Rhino Pro Series Electric Recovery Winches
SPECIFICATIONS
- Part number: PN 855126 (24V)
- Rated line pull: 6,804 kg / 15,000 lb single line (EN 14492-1 rating)
- Motor: 5,250 w / 7.0 hp 24V series wound
- Gear train: 3-stage planetary 315:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum

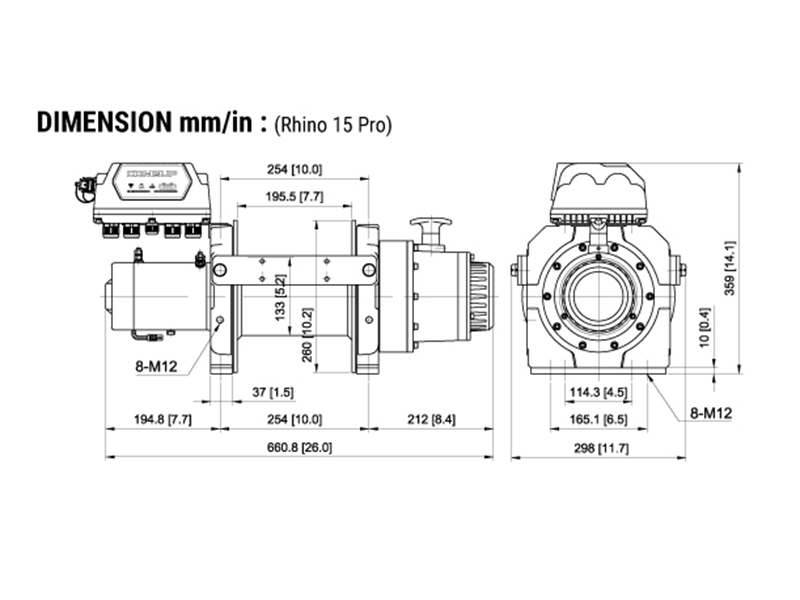

- Drum size: 133 x 195.5 mm ( 5.2” x 7.7” )
- Rotation of winch: Wire rope shall be under-wound orientation only
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Mounting bolt pattern: 254 x 114.3 mm (10” x 4.5”) ; 254 x 165.1 mm (10" x 6.5")
- Wire rope recommended: 14 mm x 22 m, 1,960N/mm2 grade with a minimum breaking strength of 137 KN required for EN 14492-1 rating
Compliant with EN 14492-1 requirements for recovery winches:
- The working coefficient for the first rope layer on the drum shall be at least 2.
- The D/d ratio to the center of the rope shall be at least 10 for the drum.
- Drum freeboard shall be at least 1.5 x rope diameter.
