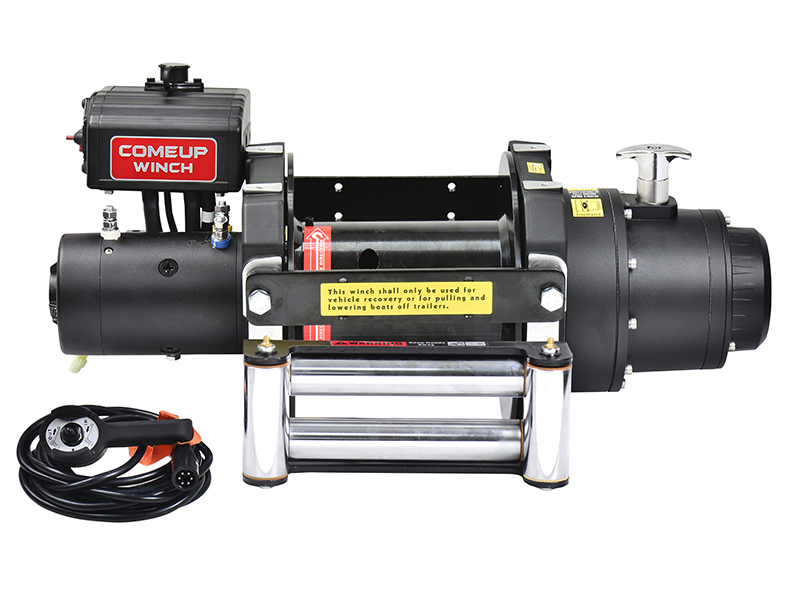

Rhino 15

Reliable electric winch for commercial, industrial and severe duty applications
5,250w/24V series wound motor.
10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation
Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Easy to turn the T-handle for rapid wire rope payout.

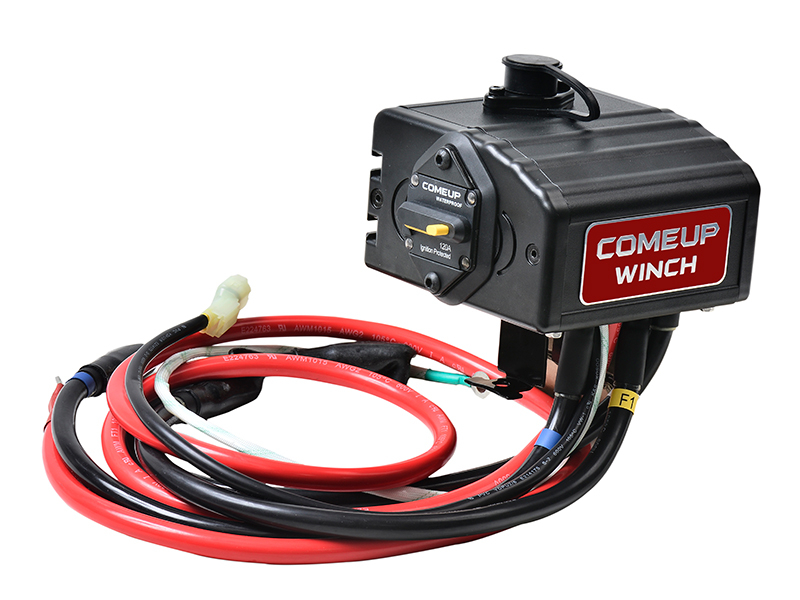

Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

Part number: PN 851540 (24V)
Rated line pull: 6,804 kg / 15,000 lb single line (EN 14492-1 rating)
Motor: 5,250 w / 7.0 hp 24V series wound
Gear train: 3-stage planetary 315:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum

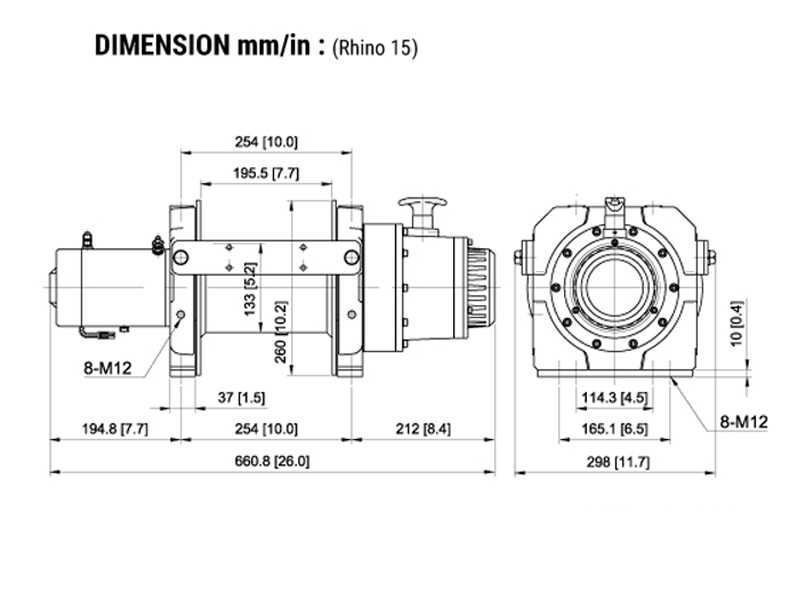

Drum size: 133 x 195.5 mm ( 5.2” x 7.7” )
Rotation of winch: Wire rope shall be under-wound orientation only
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Mounting bolt pattern: 254 x 114.3 mm (10” x 4.5”)
254 x 165.1 mm (10" x 6.5")
Wire rope recommended: 14 mm x 22 m, 1,960N/mm² grade with a minimum breaking strength of 137 KN required for EN 14492-1 rating

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.
