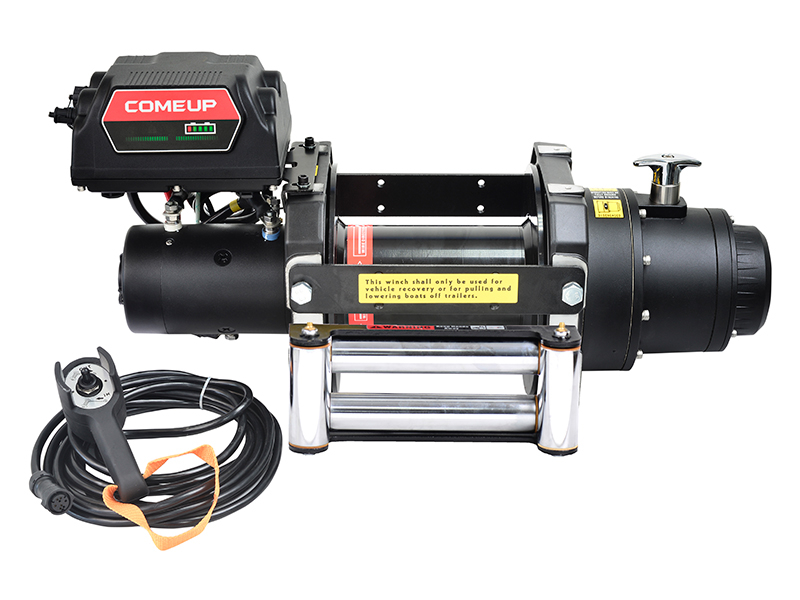

Rhino 12 Pro
5.1 Tonnes Electric Recovery Winch
- Reliable electric winch for commercial, industrial and severe duty applications
- 4,180w/12V or 2,690w/24V series wound motor.
- 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
- Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
- LED Indicator displays detailed winch status while operating.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Easy to turn the T-handle for rapid wire rope payout.

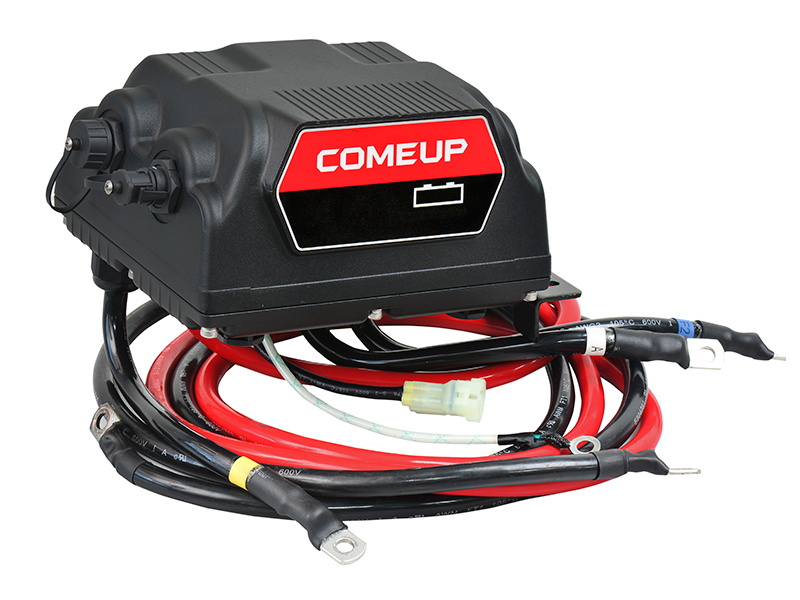

- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards
What's News Link: KAIZEN: Rhino Pro Series Electric Recovery Winches
SPECIFICATIONS
- Part number: PN 851105 (12V) / PN 851324 (24V)
- Rated line pull: 5,440 kg / 12,000 lb (SAE J706 rating)
5,100 kg (EN 14492-1 rating) - Motor: 4,180 w / 5.6 hp 12V series wound
2,690 w / 3.6 hp 24V series wound - Gear train: 3-stage planetary 315:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum

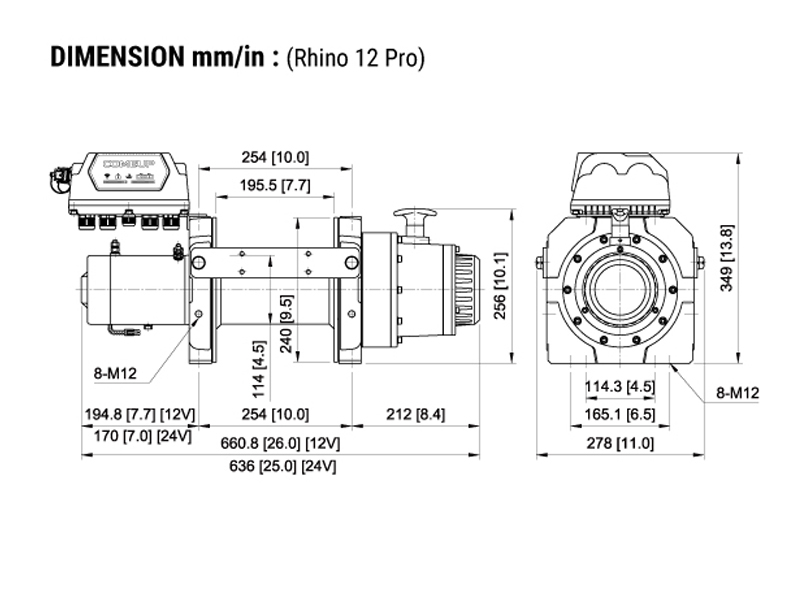

- Drum size: 114 x 195.5 mm (4.5” x 7.7")
- Rotation of winch: Wire rope shall be under-wound orientation only
- Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Mounting bolt pattern: 254 x 114.3 mm (10” x 4.5”)
254 x 165.1 mm (10" x 6.5") - Wire rope recommended:
* 12 mm x 21.4 m, 1,960 N/mm2 grade with a minimum breaking strength of 100.5 kN required for EN 14492-1 rating.
* 1/2" x 100', EIPS grade with a minimum breaking strength of 22,552 lbf required for SAE J706 rating
Compliant with EN 14492-1 requirements for recovery winches:
- The working coefficient for the first rope layer on the drum shall be at least 2.
- The D/d ratio to the center of the rope shall be at least 10 for the drum.
- Drum freeboard shall be at least 1.5 x rope diameter.
