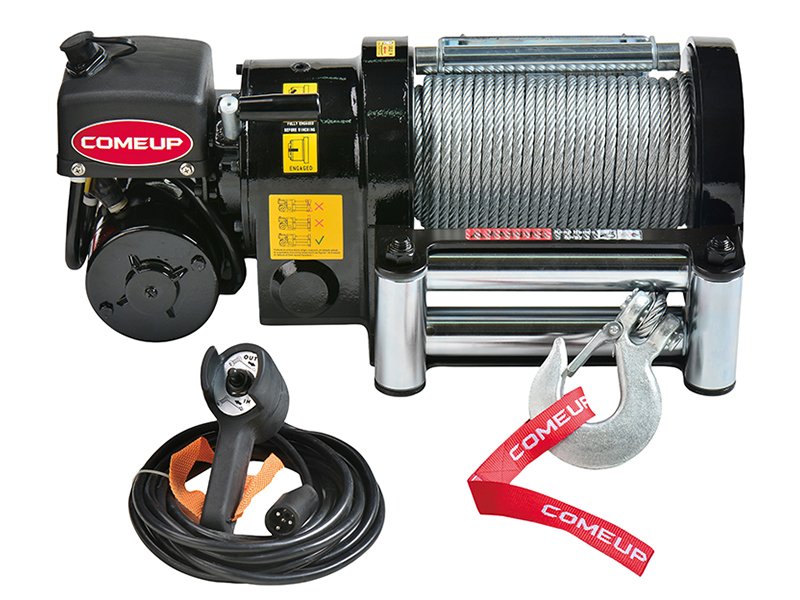

Wolf 12.0

Robust, extreme heavy duty worm drive
Heavy duty series wound motor for high torque output and fast line speed under extreme operating condition.
Detachable weather-resistant control box mounted elsewhere on the vehicle.
2 stages spur gears plus 1 exceptionally strong worm gear for reversing protection.
Irreversible worm gear brake as well as an auxiliary mechanism ratchet wheel brake performs instant braking and free slip.
Mechanism lever clutch for rapid wire rope payout.
Heavy duty sealed contactor gives better water resistance and lower amp. draw.
Higher D/d ratio (Drum dia./rope dia.) allows light commercial applications of car transporter, wrecker, tractor, lorry and fire/rescue engine.
Meets SAE J706, CE Machinery Directive 2006/42/EC and REMSA Standards.

Part number: PN 782478 (12V) / PN 783415 (24V)
Rated line pull: 5,443 kg / 12,000 lb
Motor: 3,430 w / 4.6 hp 12V series wound
2,240 w / 3.0 hp 24V series wound
Gear train: 2-stage spur gear PLUS worm gear 424:1
Clutch (freespooling): Mechanism lever
Brake: Irreversible worm gear brake PLUS mechanism ratchets wheel brake
Drum size: 89 x 229 mm (3.5” x 9")
Control: Waterproof remote control w/5 m (17') cord
Rope type: Galvanized aircraft A7 x 19
Rope size: 9.5 mm x 30.5 m (3/8" x 100')

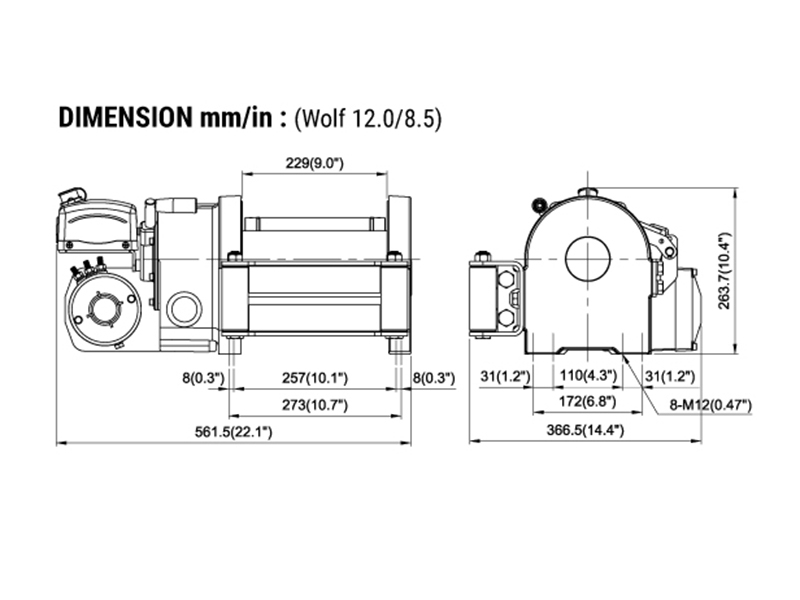

Mounting bolt pattern: 273 x 110 mm (10.7” x 4.3”)
257 x 172 mm (10.1" x 6.8")

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material for a period of twelve months from date of purchase. Wire ropes are not included under warranty.

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box Cable tensioner Wire rope with hook	Snatch block
