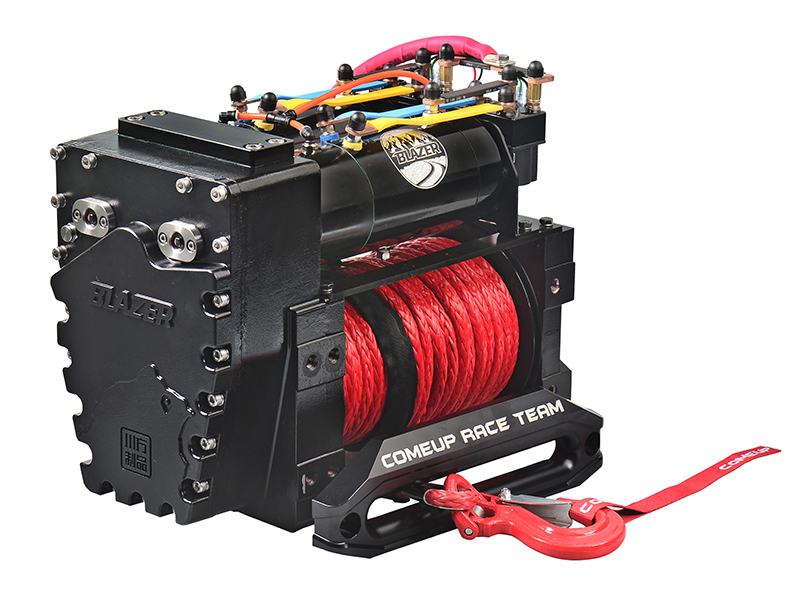

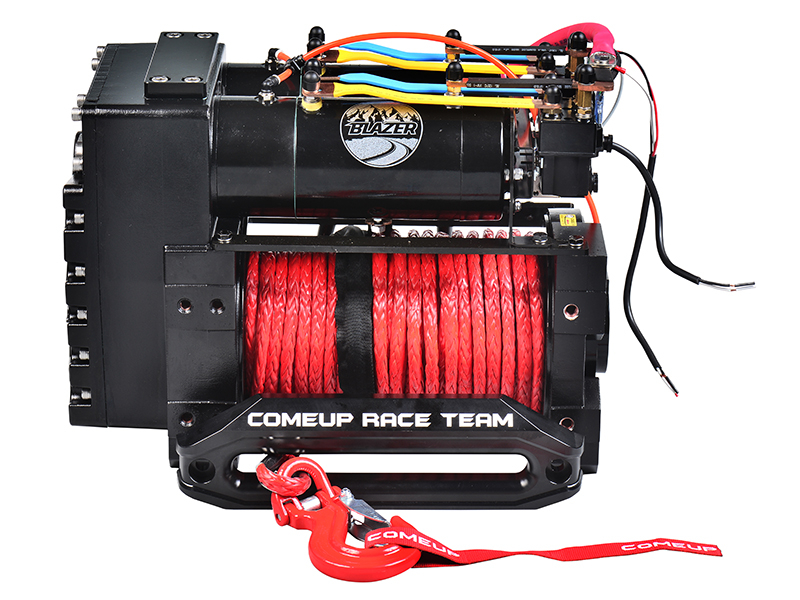

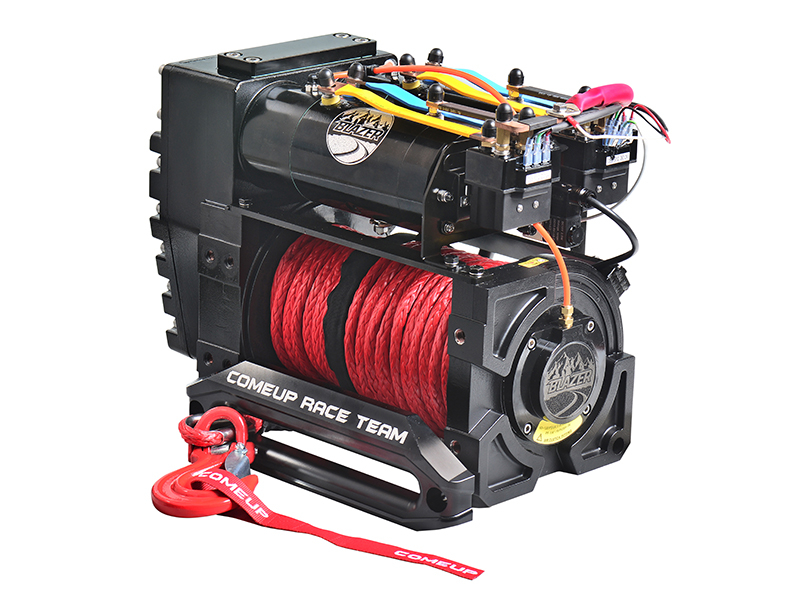

Blazer M2

Twin 8.0 hp 12V series wound motors for the ultimate in power and high speed line pull.
Two submersible sealed contactors w/silver-alloy contact pads for proven reliability in extreme conditions.
Rugged 3 stage spur gear train for maximum durability in competition use.
Dual braking system includes ratchet brake inside the gear box cover and air actuated brakes at each motor.
Air actuated clutch for driver controlled free spool allowing rapid rope pay-out.
Upgradable to the triple motor M3 with a bolt-on kit.
Long drum version available to hold up to 60m (197ft) of rope.
Retrieval speed of up to 70 mpm (229.7 fpm).
Standard 33.6:1 gear ratio with optional 28:1 and 41.5:1 gear sets available.

Blazer M2/M3 Webste: https://www.comeupwinch-blazer.com/

PN	STD	855941	855910	855923
	LD	855930	855905	855917
Rated line pull		2,722 kg / 6,000 lb	3,630 kg / 8000 lb	4,535 kg / 10,000 lb
Gear ratio		28.0:1	33.6:1	41.5:1
Line speed (no load)	(1^st layer)	70 mpm / 229.7 fpm 110A	60 mpm / 197 fpm 110A	48 mpm / 157.5 fpm 110A
	(5^th layer)	162 mpm / 531 fpm 110A	136 mpm / 446 fpm 110A	105 mpm / 344 fpm 110A
Motor		6,000 w / 8.0 hp 12V series wound x 2 pcs
Clutch (freespooling)		Air free-spooling
Brake (outside the drum)		Air brake system plus Ratchet brake
Winch construction		Aluminum die cast housing with steel drum

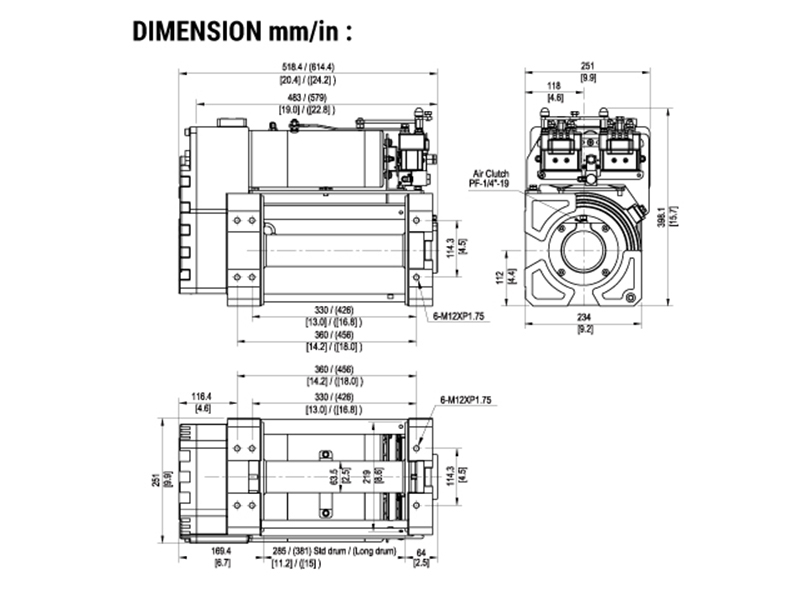

Drum size	STD	63.5 x 219 x 285 mm (2.5" x 8.6" x 11.2")
	LD	63.5 x 219 x 381 mm (2.5" x 8.6" x 15")
Synthetic rope		11 mm x 46 m (7/16" x 151') w/ Sling hook
Mounting bolt pattern	STD	330 mm x 114.3 mm (13" x 4.5") / 360 mm x 114.3 mm (14.2" x 4.5")
	LD	462 mm x 114.3 mm (16.8" x 4.5") / 456 mm x 114.3 mm (18" x 4.5")
Air pressure		120 psi (8.3 bar)
Battery lead		1.8 m (6') 2/0 gauge

Line Speed and Amp. Draw (1^st layer of synthetic rope on the drum):

Line Pull and Rope Capacity:

Warning:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
A minimum of 10 wraps of rope must remain on the drum during use.

Warranty:

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

Standard Accessories:	Option Accessories:
Synthetic rope 11 mm x 46 m (7/16” x 151’) w /sling hook. Hawse fairlead. 1.8 m (6’) 2/0 gauge battery lead	Remote control w/5 m (17’) cord Extra gear ratio kits

STD Drum:
- Winch weight : 80 kg / 176.4 lb
- Gross weight : 118 kg / 260.1 lb
- Box dimension (L x D x H) : 720 x 410 x 620 mm (28.3” x 16.1” x 24.4”)
LD Drum:
- Winch weight : 86 kg / 189.6 lb
- Gross weight : 128 kg / 282.2 lb
- Box dimension (L x D x H) : 790 x 410 x 620 mm (31.1” x 16.1” x 24.4”)
