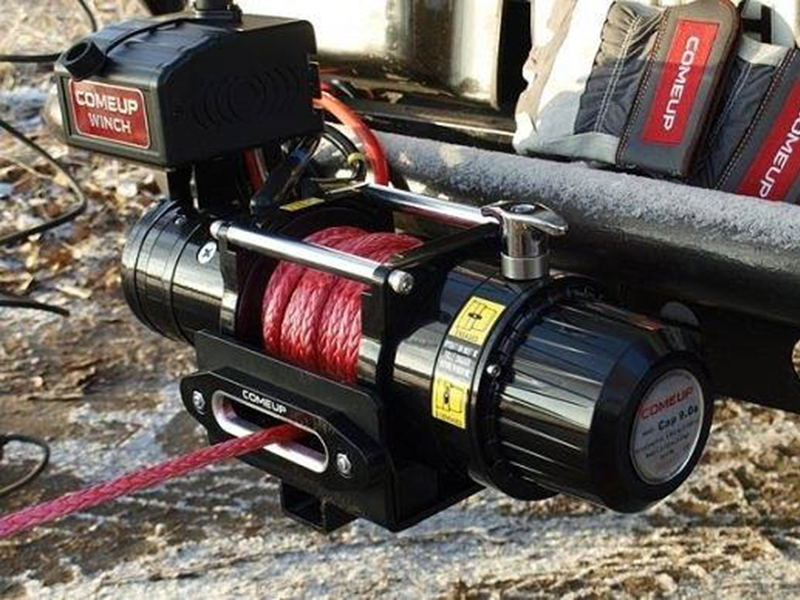

Cap 9.0s

Low-profile, compact, lightweight and fast line speed 9,000 lb of pulling power w/synthetic rope for rock sports.
3,400 w / 4.6 hp 12V series wound motor delivers superior torque output.
Silicone sealed at all motor and gear housing joint for waterproof construction
Submersible sealed contactor

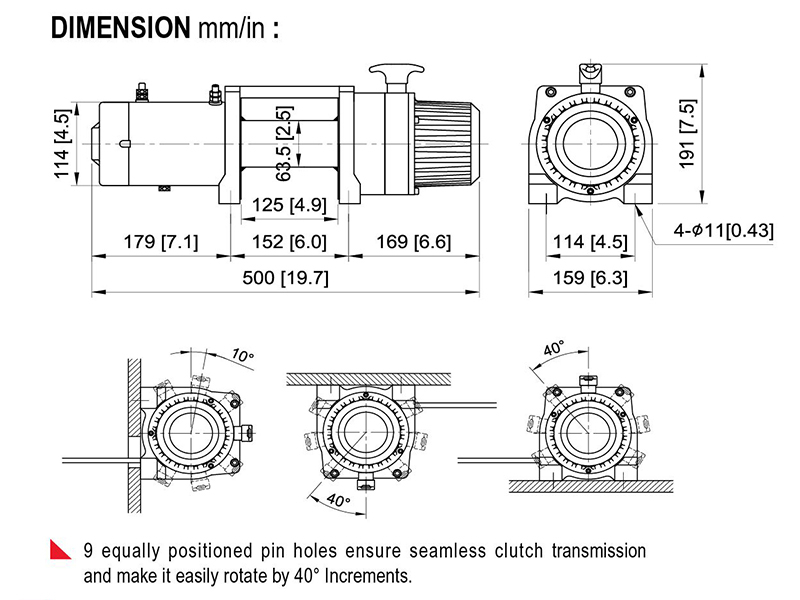

9 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 40 degree Increments.
12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
Water-proof remote control with thermometric LED indicator alerts when motor overheating.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.

Part number: PN 859312 (12V)
Rated line pull: 4,082 kg / 9,000 lb single line
Motor: 3,430 w / 4.6 hp 12V series wound
Gear ratio: 3-stage planetary 156:1
Clutch (freespooling): Rotating ring gear for manual rope unwinding
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 125L mm (2.5” x 4.9”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Synthetic rope
Rope size: 10 mm x 15.2 m (3/8” x 50’)
Mounting bolt pattern: 152 mm x 114 mm (6” x 4.5”)

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

Standard Accessories	Option Accessories

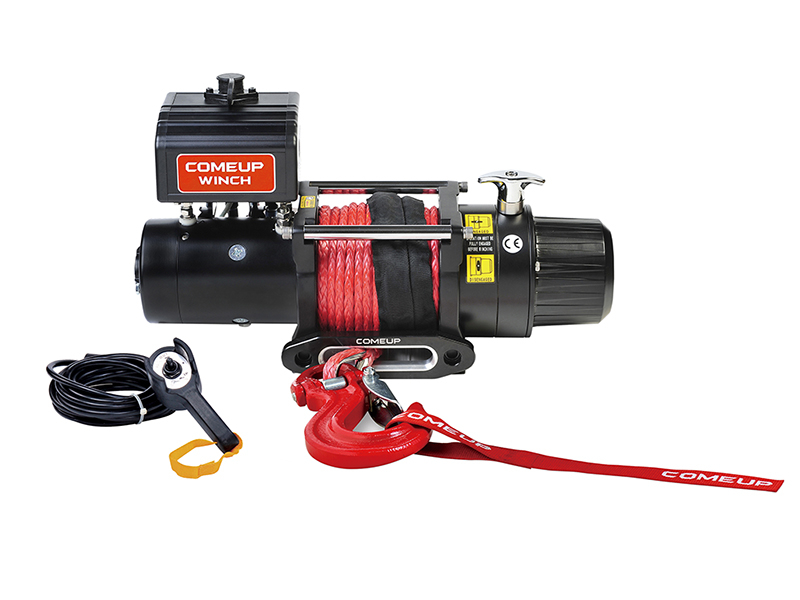

Synthetic rope 10 mm x 15.2 m w/sling hook Remote control w/5 m (17’) cord Hawse fairlead Detachable control box 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit
