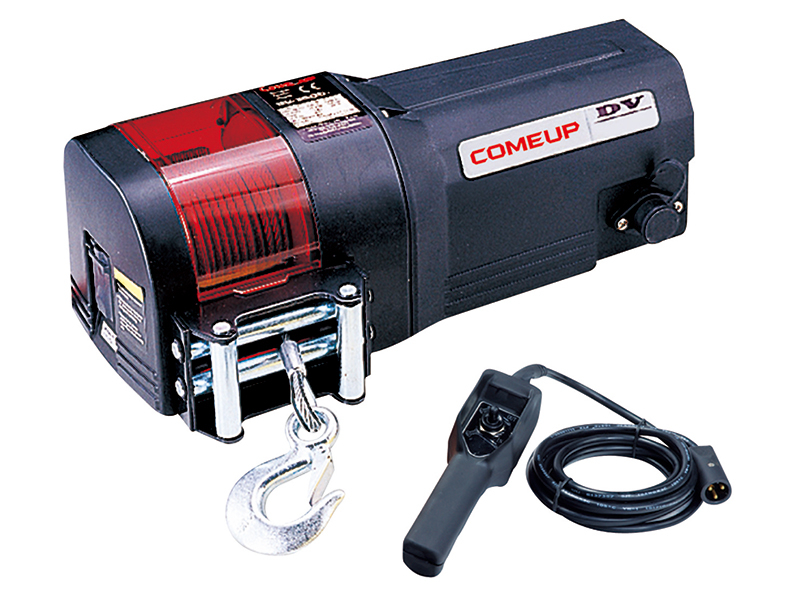

DV-2500i

2,500 lb Utility Duty Winch

Power in and power out
Sliding ramping clutch for rapid wire rope payout
Circuit breakers shut off winch to prevent overheating of motor
Weather-resistant plastic housing for extra durability
Dynamic and mechanical brake holds full load
Integrated contactor for complete protection of wirings
Compact and light weight allow a wide range of applications on trailers and boats

SPECIFICATIONS

Part number: PN 640333 (12V) / PN 640614 (24V)
Rated line pull: 1,134 kg / 2,500 lb single line
Motor: 600 w / 0.8 hp 12/24V permanent magnet
Gear train: 3-stage planetary 170:1
Clutch (freespooling): Sliding ramping
Brake (outside the drum): Automatic load-holding mechanical brake
Drum size: 54 mm x 83L mm (2.1” x 3.3”L)
Control: Handheld pendant switch remote control
Rope type: Galvanized aircraft A7 x 19
Rope size: 4.8 mm x 15.2 m (3/16” x 50’)

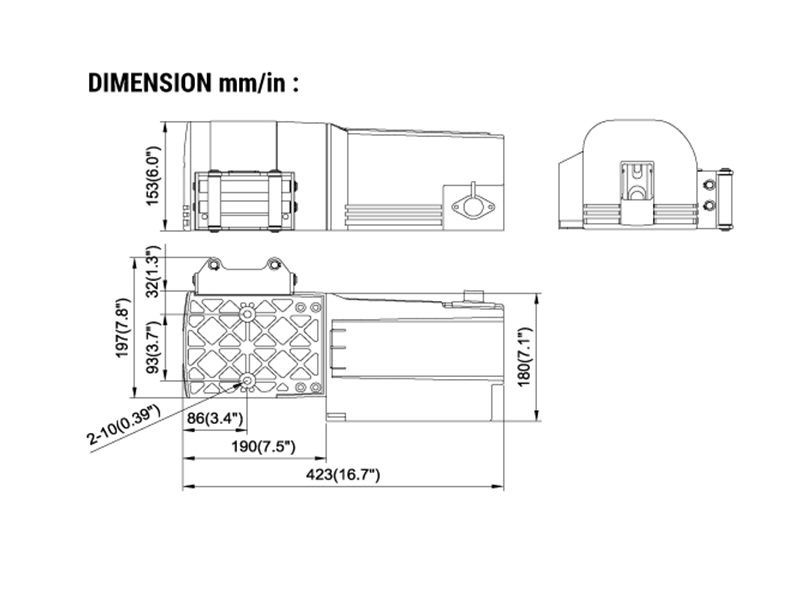

Mounting bolt pattern: 86 mm x 93 mm (3.4” x 3.7”)

PERFORMANCE DATA

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V	24V
No load	5.0 / 16.4	30	10
454 / 1,000	3.5 / 11.0	80	55
907 / 2,000	2.3 / 7.5	150	115
1,134 / 2,500	1.3 / 4.2	200	140

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	1,134 / 2,500	3.1 / 10.2
2^nd	975 / 2,149	6.7 / 22.0
3^rd	855 / 1,885	10.8 / 35.5
4^th	761 / 1,678	15.2 / 50

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.‧
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

ACCESSORIES

Standard Accessories	Option Accessories
Wire rope w/safety hook Remote control w/3 m cord 1.5 m (5') 6 gauge battery lead Roller fairlead Circuit breakers Handsaver strap	Snatch block Winch accessory kit Wireless remote control Gloves

PACKAGE

Winch weight (including rope) : 13.5 kg / 29.7 lb
Gross weight : 17.5 kg / 38.5 lb
Box dimension, (L x D x H) : 470 x 280 x 200 mm (18.5" x 11" x 7.9")

DOWNLOAD

DV-2500i Operation Manual

2022-04-29

PDF, 0.63 MB
