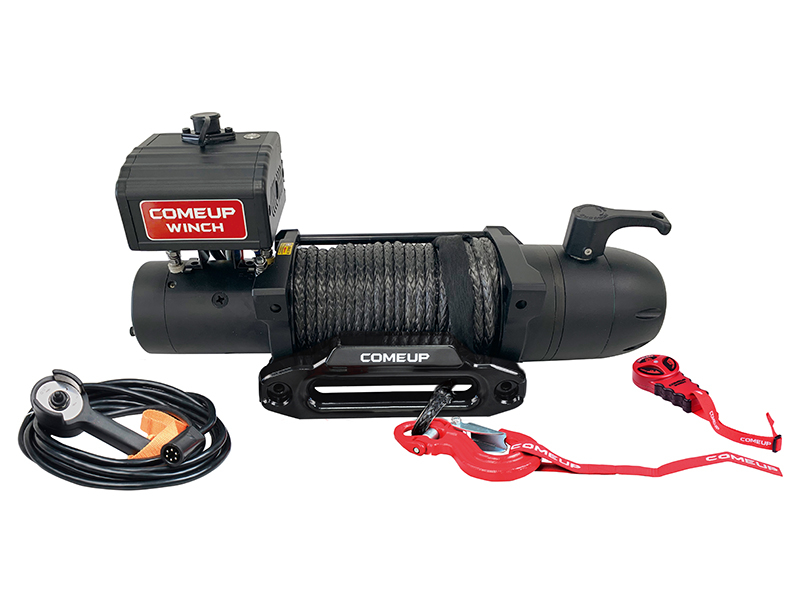

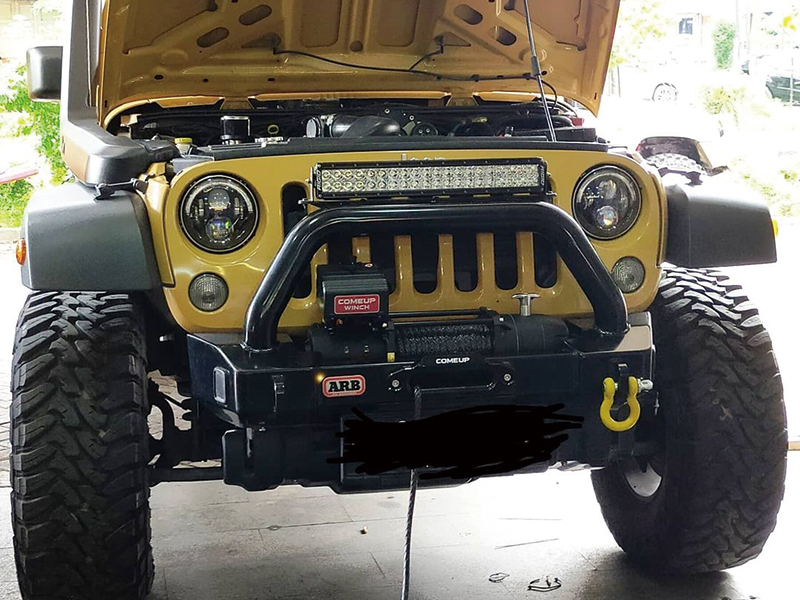

Seal Slim 12.5rs
5.6 Tonnes Severe Duty Winch
- 12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
- New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- Cutout switch prevents the vehicle battery from draining when no use.
- Both built-in digital two way signal wireless remote control and wired water-proof remote control.
- 12 strand construction synthetic rope coated to improve abrasion resistance.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
SPECIFICATIONS
- Part number: PN 295059 (12V)
- Rated line pull: 5,670 kg / 12,500 lb single line
- Line speed ( 1st layer): 7.7 mpm / 25.3 fpm 45 A at 12V no load
0.9 mpm / 3.0 fpm 470 A at 12V full load - Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 225:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
- Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
- Rope type: Synthetic rope
- Rope size: 11 mm x 25 m (7/16” x 82’)
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting : Foot forward mounting workable
- Finish : Matte black powder-coated
* Remark: Only foot forward mounting can meet SAE J706
PERFORMANCE DATA
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| 12V | ||
| No load | 7.7 / 25.3 | 45 |
| 907 / 2,000 | 3.4 / 11.2 | 75 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 230 |
| 3,629 / 8,000 | 1.7 / 5.6 | 300 |
| 5,670 / 12,500 | 0.9 / 3.0 | 470 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3,729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of synthetic rope on the drum.
- The synthetic rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

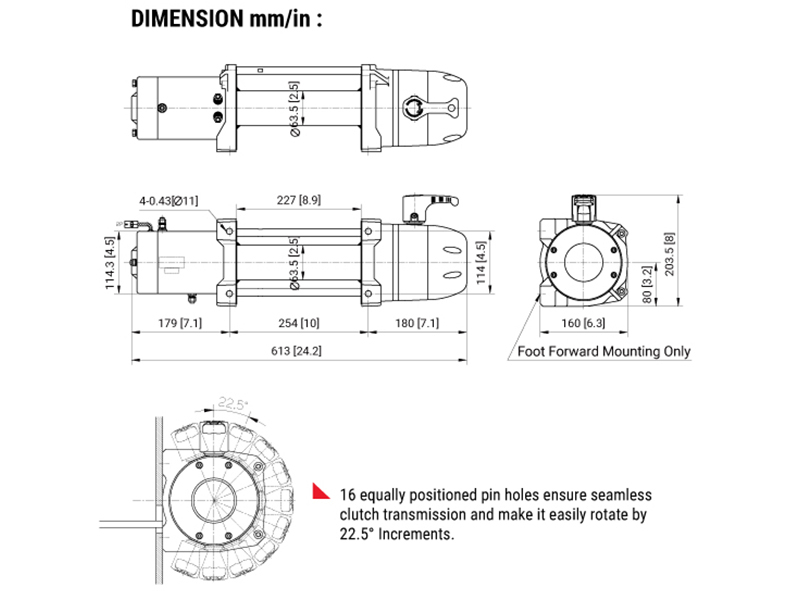

DIMENSION in mm/ in
ACCESSORIES
| Standard Accessories: | Option Accessories: |
|
|
PACKAGE
- Winch weight: 29.8 kg / 65.7 lb
- Gross weight: 40.8 kg / 90 lb
- Box dimension (L x D x H) : 682 x 209 x 430 mm (26.9” x 8.2” x 16.9”)
DOWNLOAD
| Seal Slim 12.5rs Operation Manual | 2023-12-18 | PDF, 0.58 MB | Download |
| [QUICK START GUIDE] Seal Slim Series - Pairing the wireless transmitter with the winch wireless receiver module | 2023-09-01 | PDF, 0.60 MB | Download |
| [QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type) | 2021-07-31 | PDF, 0.34 MB | Download |
