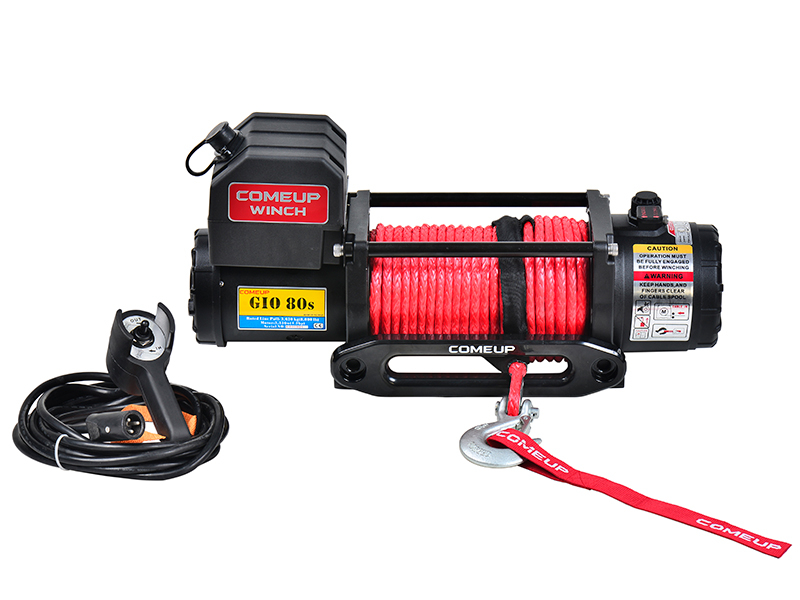

GIO 80s

3.6 Tonnes Self-Recovery Winch

12V DC reliable recovery winch rated at 8,000 lb. pulling exceeds your expectations.
Series-wound motor for power and fast line speed.
Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
Exclusive brake design with No. 37C device for better winching control.
Durable, smooth, and reliable three-stage planetary gear train.
Fine powder coated finish provides better weather resistance.
Waterproof rated IP 68.

SPECIFICATIONS

Part number: PN 853818
Rated line pull: 3,630 kg / 8,000 lb single line
Motor: 3,356 w / 4.5 hp 12V series wound
Gear train: 3-stage planetary 234.6:1
Clutch (freespooling): Rotating ring gear
Brake (inside the drum): Exclusive brake design with No. 37C device
Winch construction: Aluminum die cast housings with steel drum

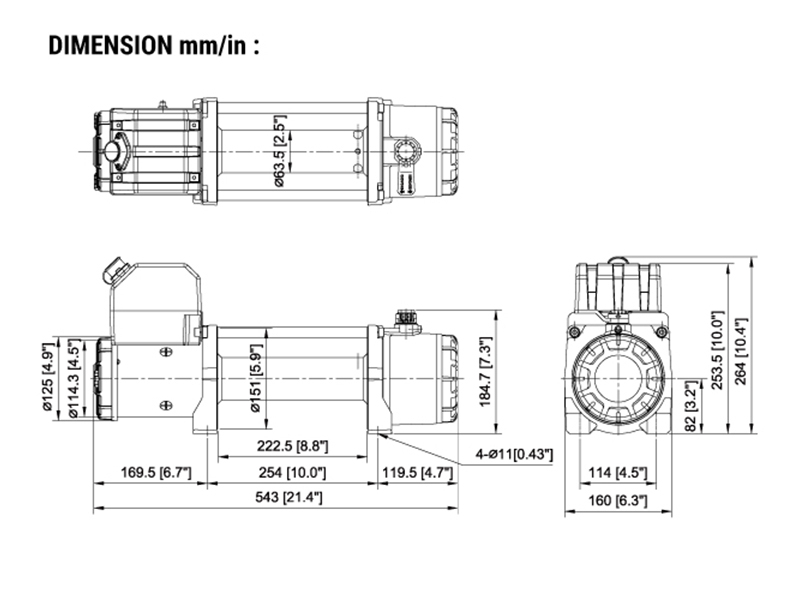

Drum size: 63.5 mm x 222.5L mm (2.5” x 8.8”L)
Control: Waterproof reomte w/ 5 m (17') cord
Rope size: Synthetic rope, 8 mm x 30.5 m (5/16" x 100')
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting: Foot forward or foot down mounting workable
Finish: Matte black powder-coated

PERFORMANCE DATA

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V
No load	8.3 / 27.2	45
907 / 2,000	4.1 / 13.6	110
1,814 / 4,000	3.3 / 10.7	165
2,722 / 6,000	3.0 / 9.8	220
3,630 / 8,000	1.4 / 4.6	270

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	3,630 / 8,000	6.1 / 20.0
2^nd	2,948 / 6,500	13.6 / 44.6
3^rd	2,482 / 5,472	22.5 / 73.8
4^th	2,143 / 4,725	30.5 / 100

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.

ACCESSORIES

Standard Accessories:

Hawse fairlead
Remote control w/5 m (17’) cord
Synthetic rope w/clevis hook
1.8 m (6’) 2 gauge battery lead
Handsaver strap

PACKAGE

Winch weight: 31 kg / 68.3 lb
Gross weight: 43.3 kg / 95.5 lb
Box dimension (L x D x H) : 650 x 195 x 415 mm (25.6” x 7.7” x 16.3”)

DOWNLOAD

GIO 80s Operation Manual

2022-04-29

PDF, 0.48 MB
