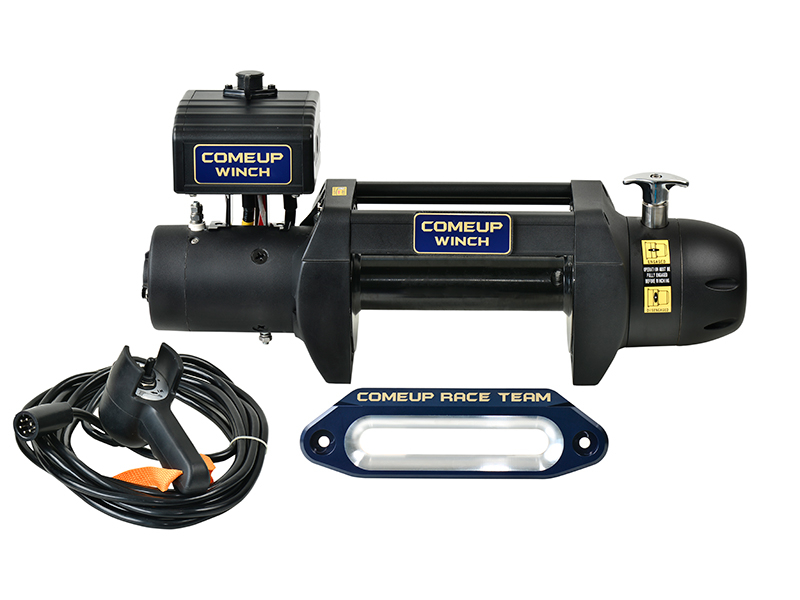

Seal MadX 8.0s LD

12V DC severe duty winch rated at 8,000 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree Increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism
Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Part number: PN 296060
Rated line pull: 3,630 kg / 8,000 lb single line
Motor: 5,250 w / 7.0 hp 12V series wound
Gear ratio: 3-stage planetary 67:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum

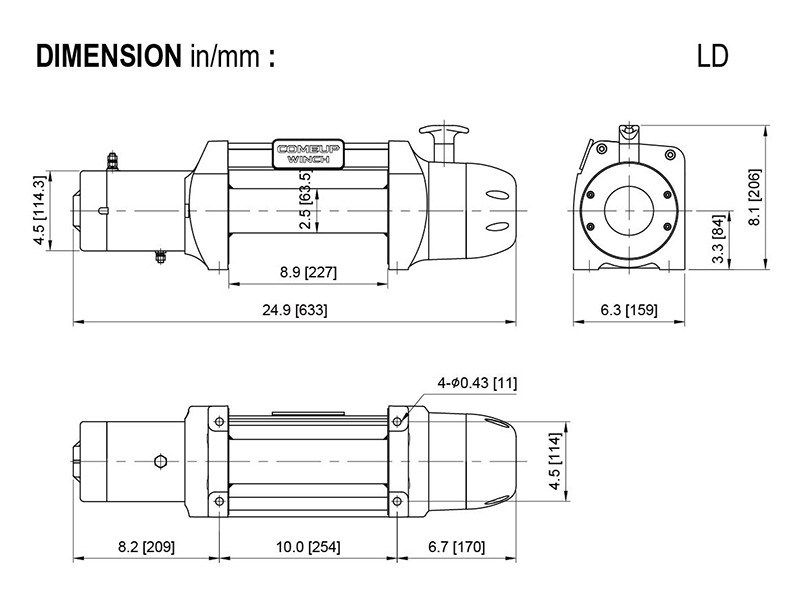

Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Recommended battery : 650 CCA minimum for winching
Battery lead : 1.8 m (6') 2 gauge battery lead
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

Standard Accessories	Option Accessories

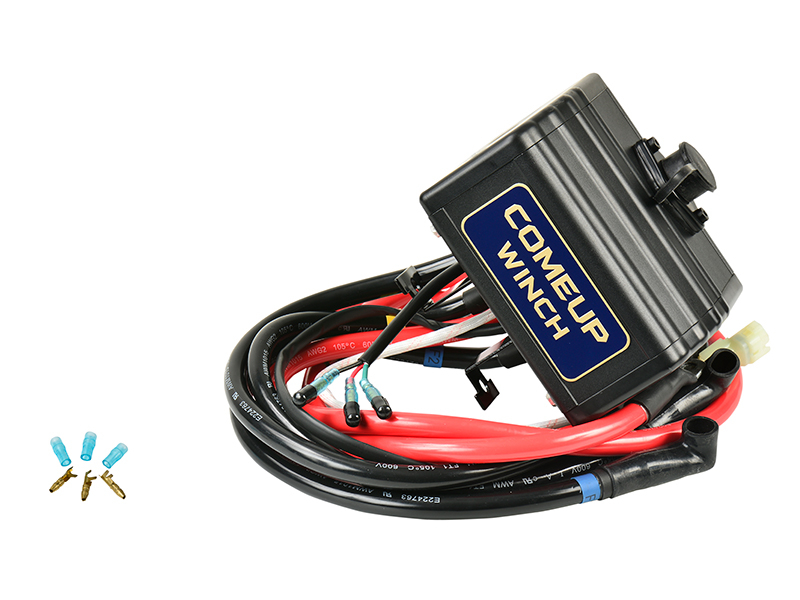

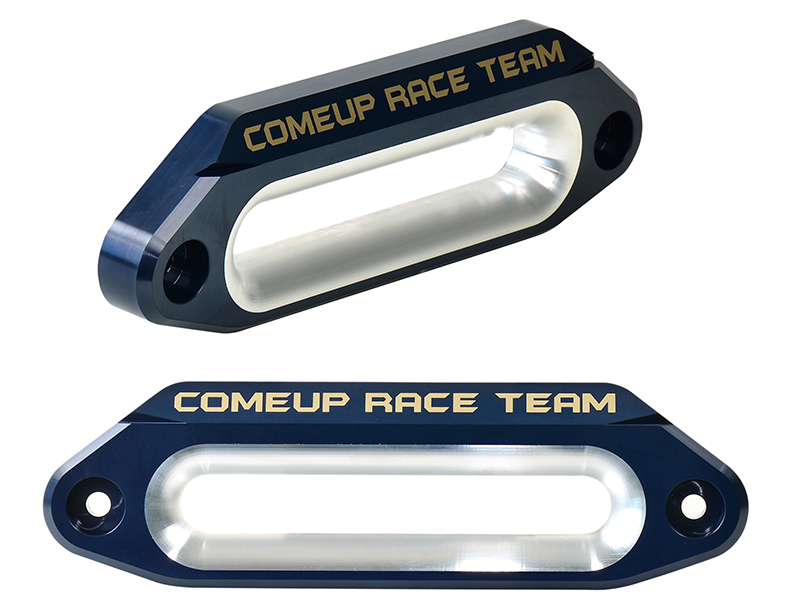

Hawse fairlead, PN 883067 Remote control w/5 m (17’) cord Detachable control box, PN 883070 1.8 m (6’) 2 gauge battery lead	Winch accessory kit Air Clutch
