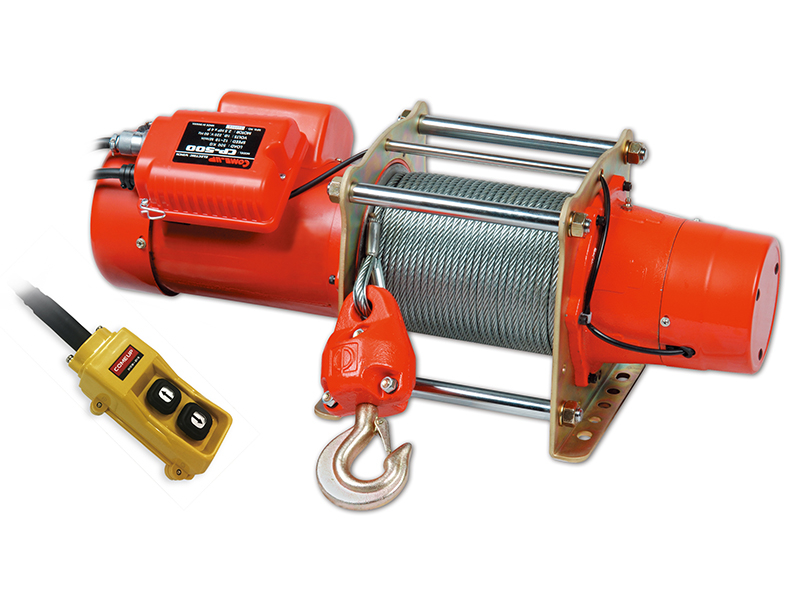

CP-500

Lightweight and compact design for easy installation
Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates
Steel plate foot mountings
Quiet running
Emergency stop function switch is available upon request
Low voltage control ass'y is available upon request

Lifting capacity: 500 kg at wire rope top layer
Lifting speed: 10 – 15 m/min
Power source: 1 phase, 200V / 220V / 230V / 240V
Motor rating IP44: 1.8 kw x 4 poles induction motor
Gear ratio: 48:1
Maximum lifting height: 58 m
Braking methods: Electromagnetic
Wire rope: 7 mm x 60 m

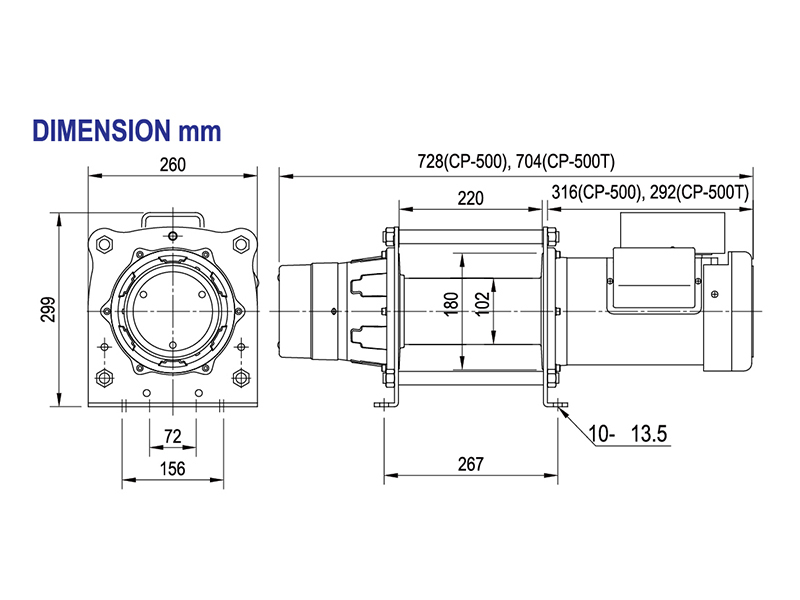

Drum length: 220 mm
Drum dia.: 102 mm
Drum flange dia.: 180 mm
Mounting bolt pattern: 267 mm x 156 mm ; 267 mm x 72 mm
*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Lifting Capacity, Lifting Speed and Rope Capacity:

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Model	Level Surface	Gradient % inclines / angle in degrees
Model	Level Surface	10% 6°	20% 11°	40% 22°	60% 31°	80% 39°
CP-500	4,170	2,230	1,620	1,040	810	690

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Standard Accessories	Option Accessories
Wire rope 7 mm x 60 m Weight hook, CHW-0005 Remote control, HOB-213 - Switch cord 3.5 mm² x 5C x 6 m - Pendant switch HOB-213	Remote Control, PB-331 - Switch cord 3.5 mm² x 5C x 6 m - Pendant switch PB-331 w/an emergency stop button Low voltage control ass'y LV-320 - Remote control, PB-306 * Switch cord 1.25 mm² x 3C x 3m * Pendant switch PB-306 w/an emergency stop button - Low voltage control, LV-320
