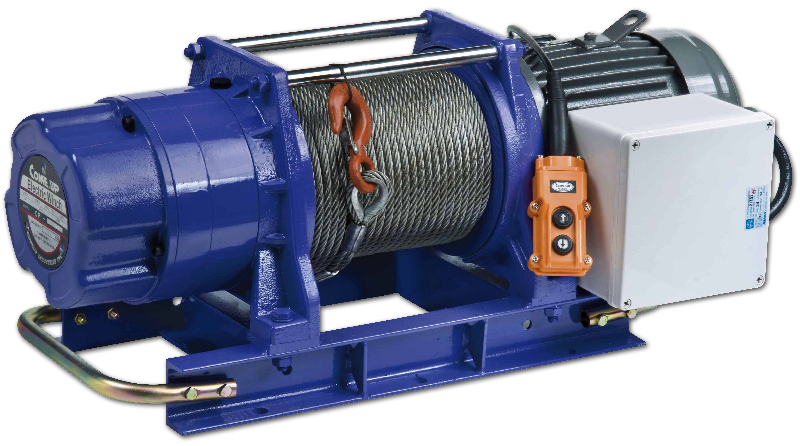

CWG-500TH

Lightweight and compact design is ideal for easy installation.
Electromagnetic spring-applied failsafe brake.
Planetary gears for maximum mechanical efficiency.
Cast steel foot mountings.
Heavy duty high efficiency ball bearings on al running surfaces
Enclosed drum flanges to prevent rope becoming trapped between drum and support castings
24 VAC low voltage control comes as standard
Rated capacity limiter limits driving power of motor to prevent overloading of the winch

Lifting capacity: 500 kg at wire rope top layer
Lifting speed: 19 – 34 m/min
Power source: 3 phase, 220V / 380V / 400V / 415V / 440V
Motor rating IP54: 3.7 kw x 2 poles induction motor
Maximum lifting height: 127 m
Braking methods: Electromagnetic spring-applied failsafe brake
Wire rope: 8 mm x 130 m, 6 x 19, with 2,970 breaking strength

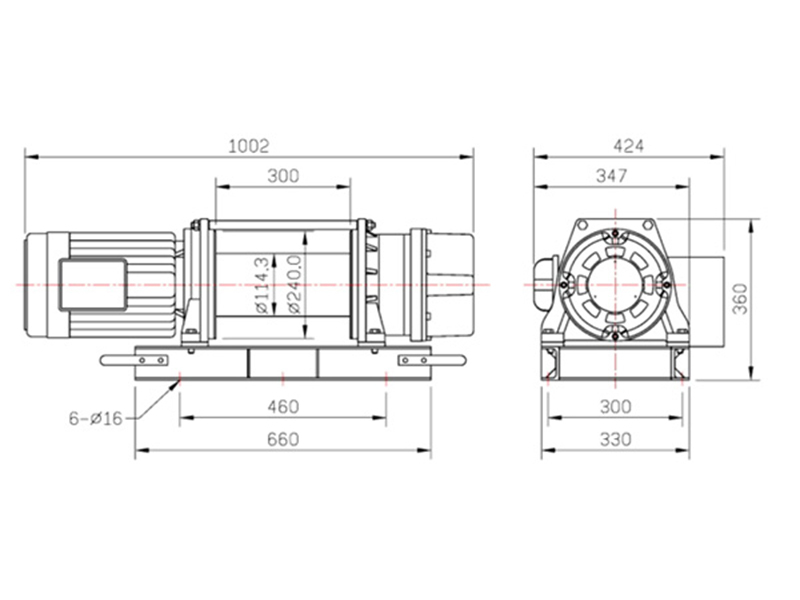

Drum length: 300 mm
Drum dia.: 114.3 mm
Drum flange dia.: 240 mm
Mounting bolt pattern: 460 mm x 300 mm
Compliant with EN 14492-1 requirements :
* For hoisting application:
The working coefficient for the first rope layer on the drum shall be at least 5.
The D/d ratio to the center of the rope shall be at least 15 for the drum.
A switch with emergency stop and limit functions are requested.

* For pulling application:
The working coefficient for the first rope layer on the drum shall be at least 3.
The D/d ratio to the center of the rope shall be at least 12 for the drum.
A switch with emergency stop and limit functions are requested

Lifting Capacity, Lifting Speed and Rope Capacity:

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Standard Accesspries	Option Accessories
Wire rope 8 mm x 130 with safety-latch hook Remote control, CPB-161 * Switch cord 1.25 mm² x 3C x 3m * Pendant switch CPB-161 Low voltage control, LV-320 Base plate	Remote control, PB-306 assembly (switch with an emergency stop button)
