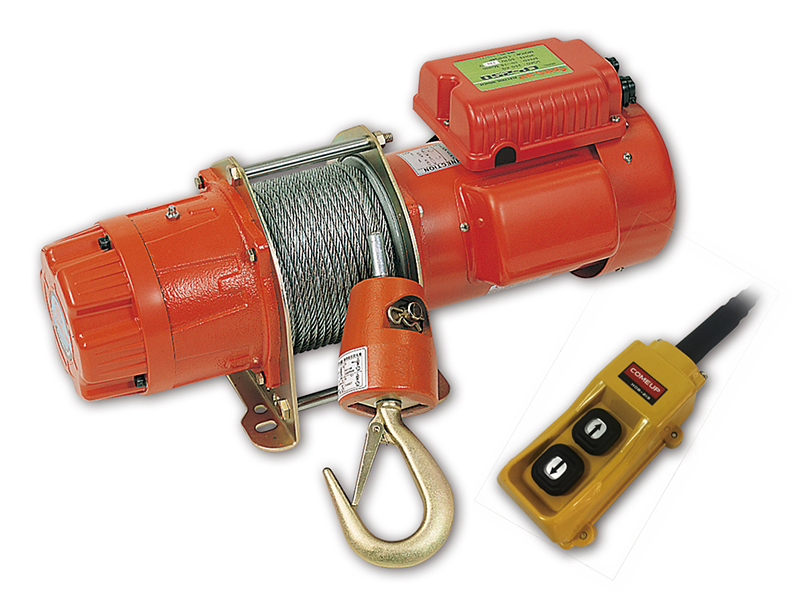

CP-250
- Positive retention of wire rope on to drum
- Electromagnetic spring-applied failsafe brake
- Heavy duty high efficiency ball bearing on all running surfaces
- Planetary gears for maximum mechanical efficiency
- Enclosed drum flanges to prevent rope becoming trapped between drum and support steel plates
- Quiet running
- Emergency stop function switch is available upon request
- Low voltage control ass'y is available upon request
SPECIFICATIONS
- Lifting capacity: 250 kg at wire rope top layer
- Lifting speed: 10 – 15 m/min
- Power source: 1 phase, 110V / 220V / 230V / 240V
- Motor rating IP44: 0.75 kw x 4 poles induction motor
- Gear ratio: 43:1
- Maximum lifting height: 29 m
- Braking methods: Electromagnetic
- Wire rope: 6 mm x 30 m

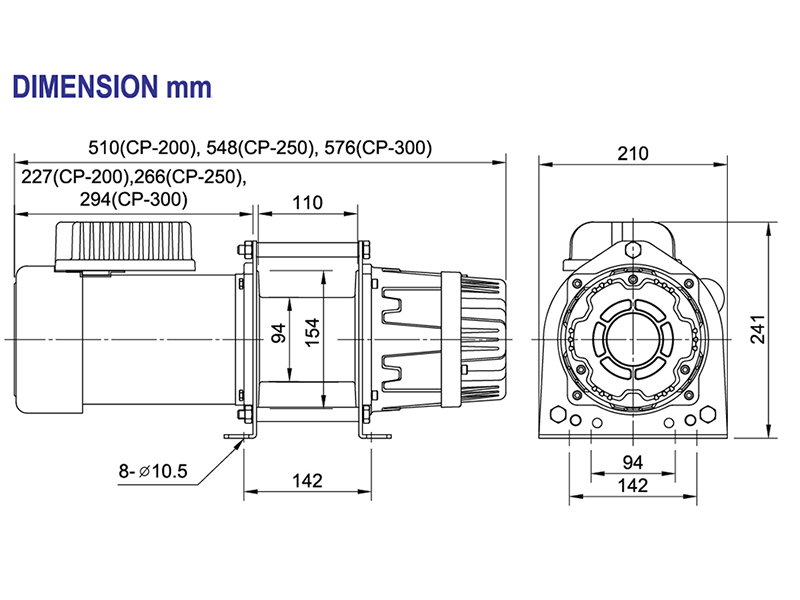

- Drum length: 110 mm
- Drum dia.: 94 mm
- Drum flange dia.: 154 mm
- Mounting bolt pattern: 142 mm x 142 mm 142 mm x 94 mm
*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%
PERFORMANCE DATA
Lifting Capacity, Lifting Speed and Rope Capacity:
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m/min | Total Rope on the Drum, m |
| 1st | 370 | 10 | 5.4 |
| 2nd | 330 | 11.3 | 11.5 |
| 3rd | 298 | 12.5 | 18.3 |
| 4th | 272 | 13.8 | 25.7 |
| 5th | 250 | 15 | 30 |
Note: Above performance ratings are based on 50Hz supply.
Pulling Load Capacity for Various Inclines in kg
| Model | Level Surface | Gradient % inclines / angle in degrees | ||||
| 10% 6° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
| CP-250 | 2,080 | 1,120 | 810 | 520 | 400 | 350 |
Note:
- All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
- Use a snatch block for double line operation, to increase line pull by approximately 85%
- The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)\
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated lifting capacity shown is based on the top rope layer on the drum
- The rope winding on the drum shall remain 5 wraps from the drum
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
ACCESSORIES
| Standard Accessories | Option Accessories |
|
|
PACKAGE
- Net weight (standard version) : 34 kg
- Gross weight : 36.5 kg
- Body dimension, (L x D x H) : 548 x 210 x 241 mm
- Box dimension, (L x D x H) : 630 x 285 x 285 mm
