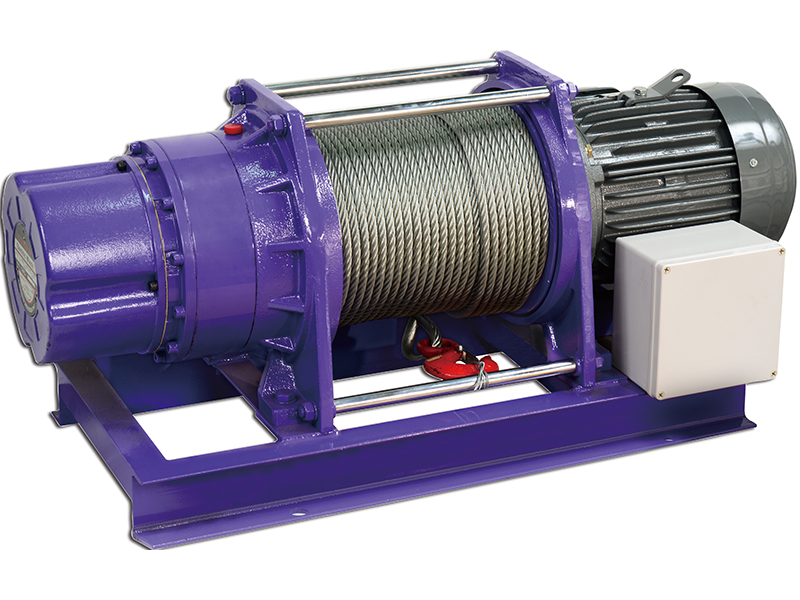

CWG-30565
220V / 380V / 415V / 440V x 3ph AC
- Electromagnetic spring-applied failsafe brake
- Heavy duty high efficiency ball bearing on all running surfaces
- Planetary gears for maximum mechanical efficiency
- Cast steel foot mountings
- Fabricated steel drum
- Supplied on steel base plate ready to mount
- Rated capacity limiter limits driving power of the motor to prevent overloading of the winch
- Quiet running
- Low voltage control ass'y comes as standard
- Emergency stop function switch is available upon request.
SPECIFICATIONS
- Lifting capacity: 1,100 kg at wire rope top layer
- Lifting speed:
Option A: 14 – 25 m/min
Option B: 9.2 – 16.4 m/min - Power source: 3 phase, 220V / 380V / 415V / 440V
- Motor rating IP54:
Option A: 5.5 kw x 4 poles induction motor
Option B: 3.8 kw x 6 poles induction motor - Gear ratio: 50:1
- Maximum lifting height: 97 m
- Braking methods: Electromagnetic
- Wire rope: 12 mm x 100 m
- Drum length: 312 mm
- Drum dia.: 140 mm
- Drum flange dia.: 320 mm

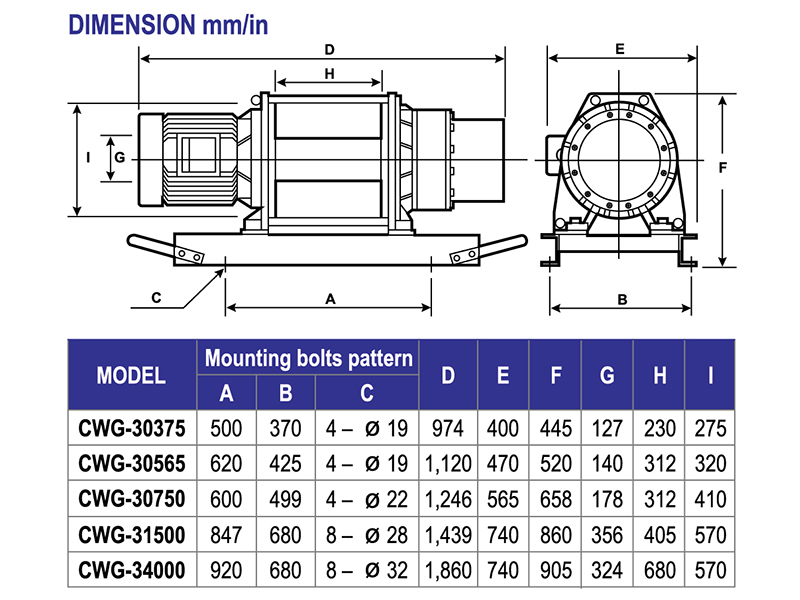

- Mounting bolt pattern: 620 mm x 425 mm
* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%
PERFORMANCE DATA
Lifting Capacity, Lifting Speed and Rope Capacity:
| Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m / min | Total Rope on the Drum, m | |
| A | B | |||
| 1st | 1,968 | 14 | 9.2 | 12 |
| 2nd | 1,700 | 16.2 | 10.6 | 26 |
| 3rd | 1,496 | 18.4 | 12.1 | 42 |
| 4th | 1,336 | 20.6 | 13.5 | 59 |
| 5th | 1,207 | 22.8 | 15 | 79 |
| 6th | 1,100 | 25 | 16.4 | 100 |
Note:.Above performance ratings are based on 50Hz supply.
Pulling Load Capacity for Various Inclines in kg
| Model | Level Surface | Gradient % inclines / angle in degrees | ||||
| 10% 6° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
| CWG-30565 | 9,170 | 4,910 | 3,560 | 2,280 | 1,780 | 1,520 |
Note:
- All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
- Use a snatch block for double line operation, to increase line pull by approximately 85%
- The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated lifting capacity shown is based on the top rope layer on the drum
- The rope winding on the drum shall remain 5 wraps from the drum
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
ACCESSORIES
| Standard Accessories | Option Accessories |
|
|
PACKAGE
- Net weight (standard version) : 293 kg
- Gross weight : 340 kg
- Body dimension, (L x D x H) : 1,120 x 470 x 520 mm
- Box dimension, (L x D x H) : 1,290 x 650 x 750 mm
