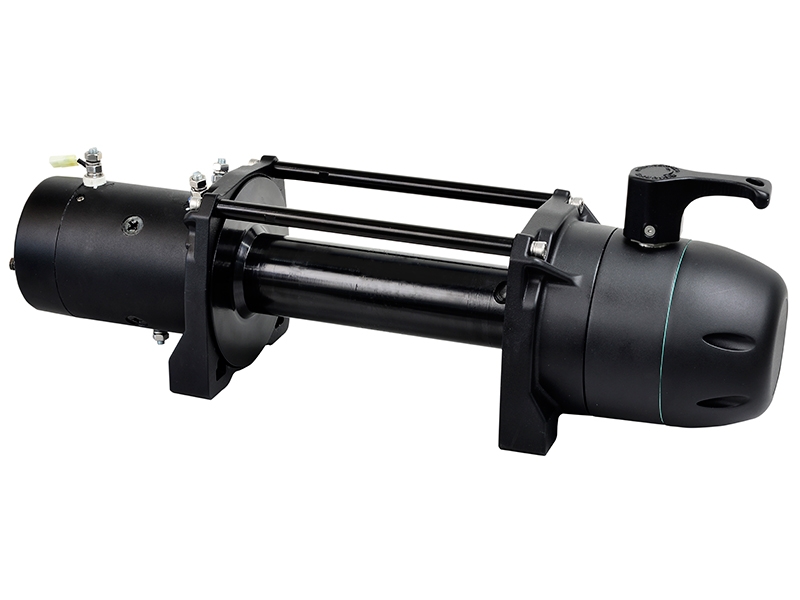

Seal Slim 9.5s

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

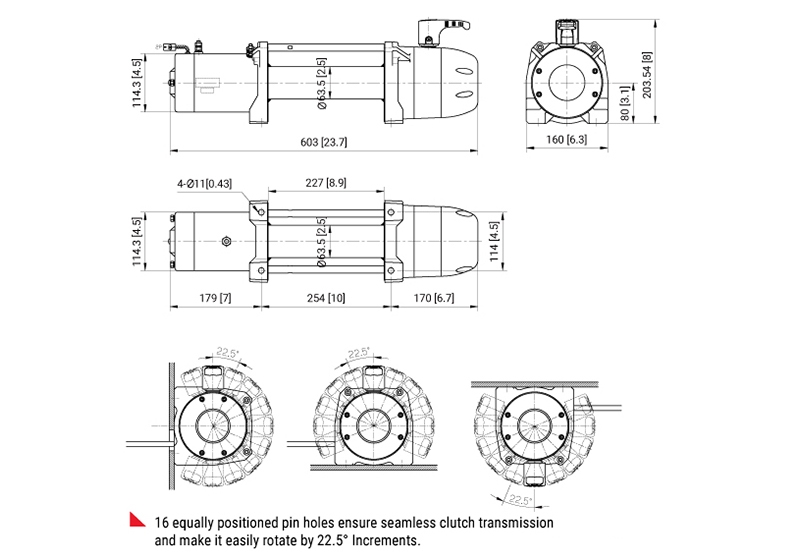

16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degreeIncrements.
Water-proof remote control with thermometric LED indicator w/5 m cord
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.

Part number: PN 295014 (12V)
Rated line pull: 4,309 kg / 9,500 lb single line
Line speed ( 1^st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load
2.2 mpm / 7.2 fpm 380 A at 12V full load
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Synthetic rope
Rope size: 10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of synthetic rope on the drum.
The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

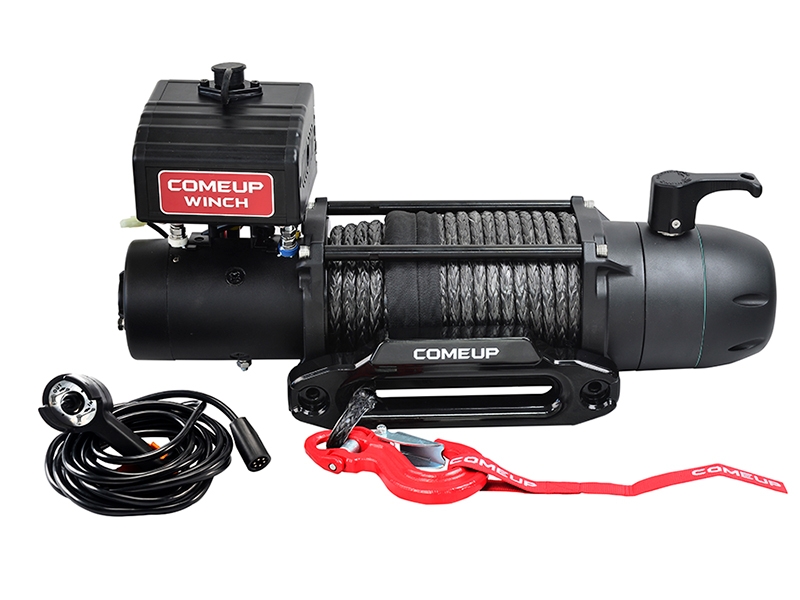

Standard Accessories	Option Accessories
Hawse fairlead Remote control w/5 m (17’) cord Detachable control box Synthetic rope w/sling hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit
