Seal 16.5rsi Trail Edition

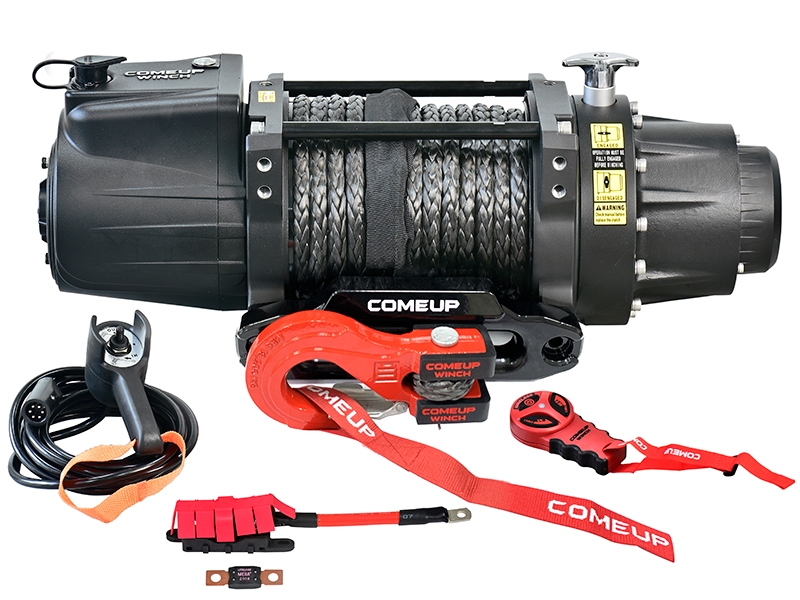

Trail Edition: Includes a BossHook-L and a 200A fuse kit

Introducing the COMEUP Seal 16.5rsi Trail Edition, the ultimate winching solution designed for unparalleled ease of installation and equipped with exclusive Trail Edition features for enhanced functionality.
Firstly, as a control box integrated winch, the Seal 16.5rsi sets a new standard for simplicity in installation. By integrating the control box directly into the winch design, installation becomes a breeze, streamlining the setup process and saving you valuable time and effort.
Secondly, the Seal 16.5rsi proudly bears the distinction of being the Trail Edition, which includes our innovative BossHook-L and a specialized winch fuse kit. The BossHook-L revolutionizes recovery operations with its advanced design, providing superior attachment points for secure and efficient winching. Additionally, the inclusion of the winch fuse kit ensures optimal performance and protection for your winch system, enhancing reliability and peace of mind on the trail.
With its robust construction, powerful performance, and exclusive Trail Edition features, the COMEUP Seal 16.5rsi stands out as the ultimate winch choice for Overland full-size pickup trucks. Engineered to meet the demanding needs of off-road enthusiasts, this winch offers unparalleled convenience, functionality, and reliability specifically tailored for full-size trucks navigating challenging terrains. Enjoy peace of mind on your solo expeditions, knowing that the Seal 16.5rsi is there to provide reliable assistance whenever you need it most, making it the best winch companion for your Overland adventures.

Inquiry Now

SPECIFICATIONS

Part number: PN 298341 (12V)
Rated line pull: 7,484 kg / 16,500 lb single line
Line speed ( 1^st layer): 5.6 mpm / 18.4 fpm 50A at 12V no load
1.4 mpm / 4.6 fpm 355A at 12V full load
Motor: 4,325 w / 5.8 hp 12V series wound
Gear train: 3-stage planetary 343:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 89 mm x 204L mm (3.5" x 8"L)
Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope type: Synthetic rope
Rope size: 12.7 mm x 25 m (1/2” x 82’)
Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
Mounting: Foot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

FEATURES

12 DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degreeIncrements.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
On/Off switch prevents the vehicle battery from draining when no use.
Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load.
BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
Meet international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

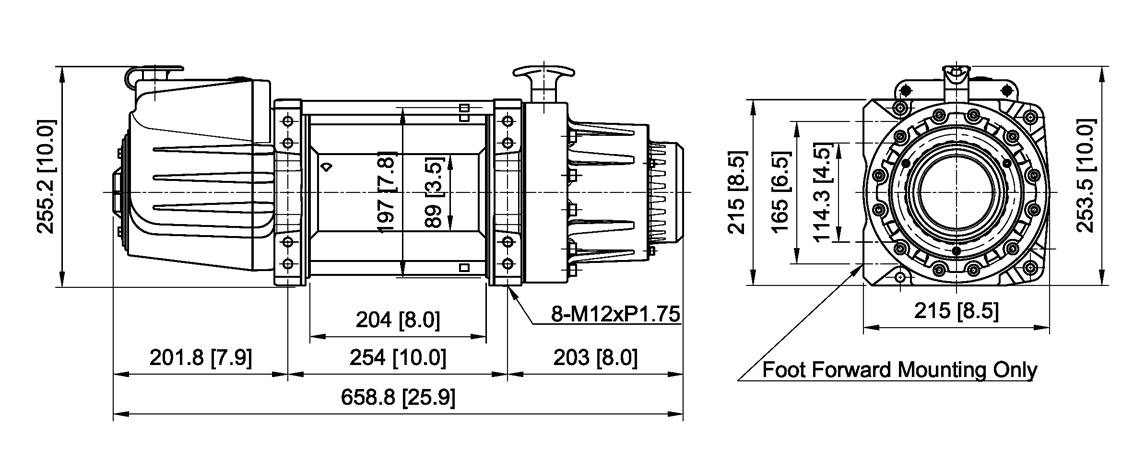

DIMENSION in mm/in

PERFORMANCE DATA

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm
Line Pull, kg / lb	Line Speed, mpm / fpm	Line Speed, mpm / fpm
No load	5.6 / 18.4	50
1,814 / 4,000	3.0 / 9.8	90
3,629 / 8,000	2.5 / 8.2	180
4,536 / 10,000	1.9 / 6.2	230
7,484 / 16,500	1.4 / 4.6	355

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	7,484 / 16,500	5.2 / 17.1
2^nd	6,125 / 13,503	11.6 / 38.1
3^rd	5,184 / 11,429	19.2 / 63.0
4^rd	4,494 / 9,908	25.0 / 82.0

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
