Slim 12.5rsi Trail Edition

Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection.

12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.
The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
New clutch lever kit is easy to engaged and disengaged. 16 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 22.5 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
On/Off switch prevents the vehicle battery from draining when no use.
Both built-in digital two way wireless remote control and wired waterproof remote control.
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load

Part number: PN 295073 (12V)
Rated line pull: 5,670 kg / 12,500 lb single line
Line speed ( 1^st layer): 7.7 mpm / 25.3 fpm 60 A at 12V no load
0.9 mpm / 3.0 fpm 380 A at 12V full load
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 225:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Synthetic rope
Rope size: 11 mm x 21 m (7/16” x 69’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of synthetic rope on the drum.
The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

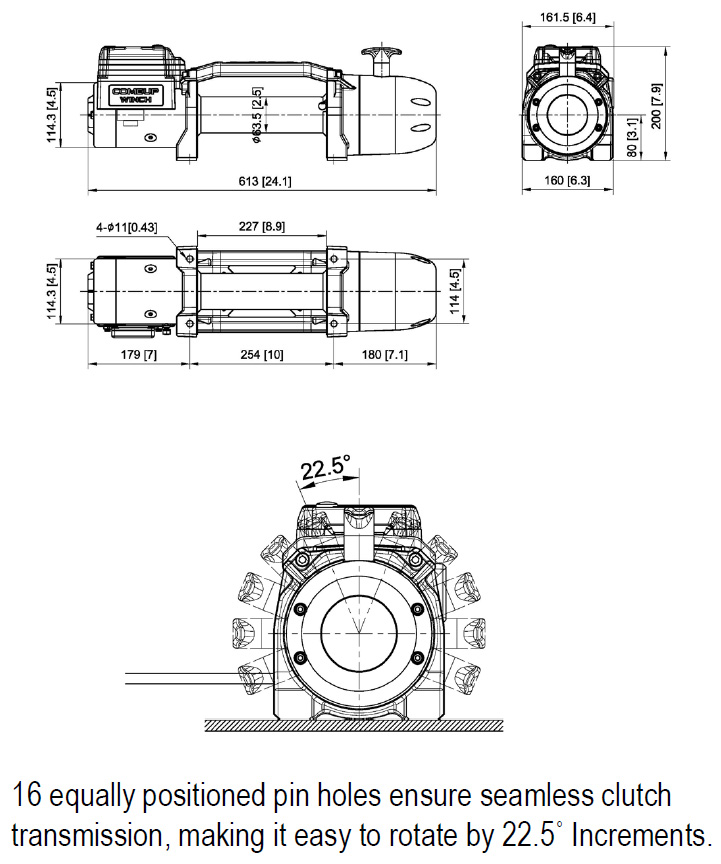

Slim 9.5rsi Trail Edition Dimension

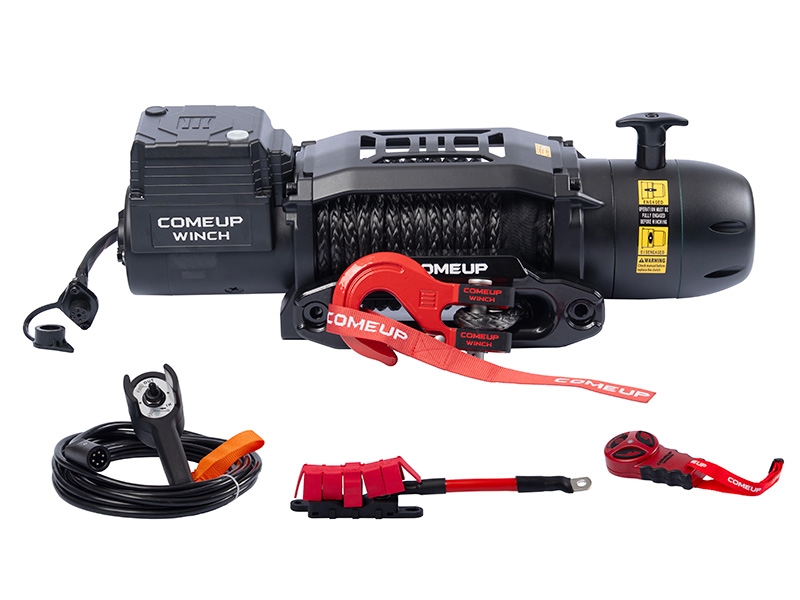

Standard Accessories:	Option Accessories:
Hawse fairlead Built-in wireless remote control modules Remote control w/5 m (17’) cord Bridge control box w/ 300A fuse Synthetic rope w/ BossHook M 1.8 m (6’) 2 gauge battery lead Handsaver strap	Winch accessory kit
