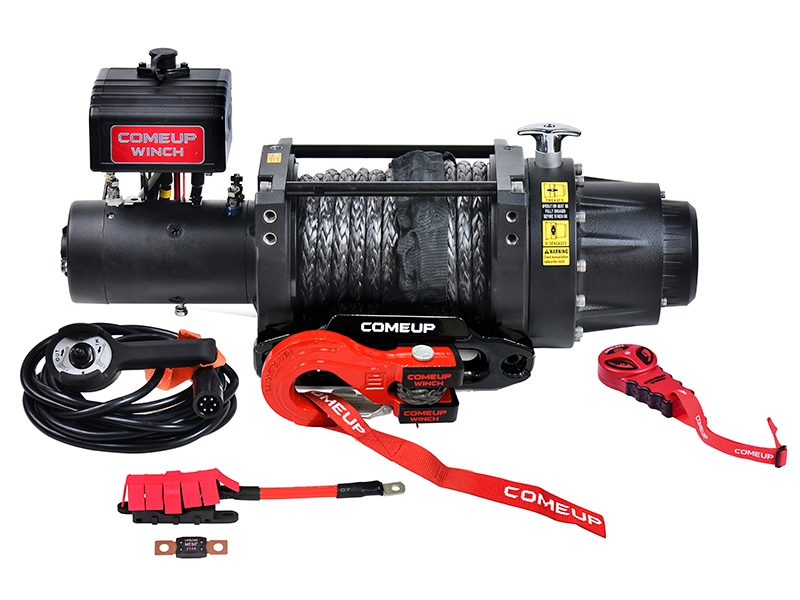

Seal 20.0rs Trail Edition

Trail Edition: Includes a BossHook-L and a 250A fuse kit

12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etcpatented mechanical cone brake holds the full load.
BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
Meet international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.

Inquiry Now

SPECIFICATIONS

Part number: PN 298210 (12V)
Rated line pull: 9,072 kg / 20,000 lb single line
Line speed ( 1^st layer): 4.5 mpm / 14.8 fpm 60A at 12V no load
0.4 mpm / 1.3 fpm 410A at 12V full load
Motor: 5,220 w / 7.0 hp 12V series wound
Gear train: 3-stage planetary 343:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 89 mm x 204L mm (3.5" x 8"L)
Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope type: Synthetic rope
Rope size: 14 mm x 16.7 m (9/16" x 55’)
Mounting bolt pattern: 254 mm x 114.3 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
Mounting: Foot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

PERFORMANCE DATA

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
Line Pull, kg / lb	Line Speed, mpm / fpm	12V
No load	4.5 / 14.8	60
1,814 / 4,000	2.1 / 6.9	150
3,629 / 8,000	1.8 / 5.9	190
4,536 / 10,000	1.4 / 4.6	260
7,484 / 16,500	1.1 / 3.6	340
9,072 / 20,000	0.4 / 1.3	410

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1^st	9,072 / 20,000	4.6 / 14.9
2^nd	7,133 / 15,725	10.3 / 33.9
3^rd	5,877 / 12,956	16.7 / 55.0

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three(3) years warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

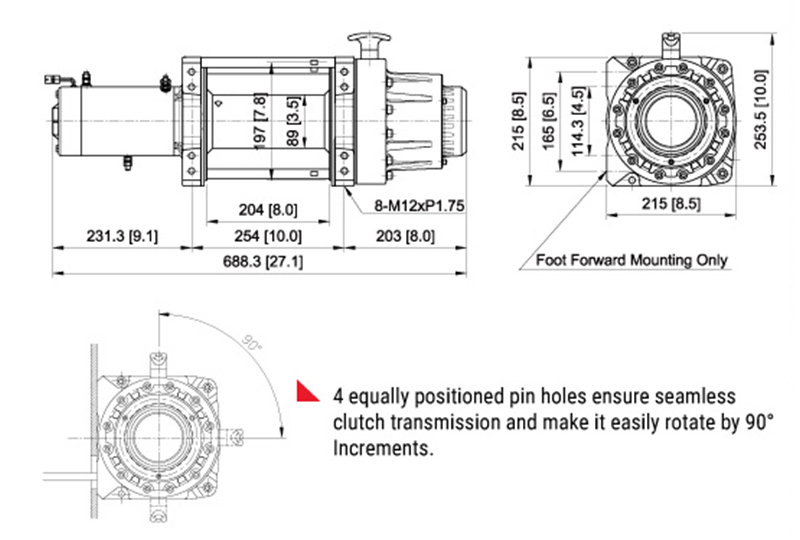

DIMENSION in mm/ in

ACCESSORIES

Standard Accessories:

• Hawse fairlead
• Built-in wireless remote control modules
• Remote control w/5 m (17’) cord
• Detachable control box w/ 250A fuse
• Synthetic rope w/ BossHook L
• 1.8 m (6’) 2 gauge battery lead
• Handsaver strap
