HV-15

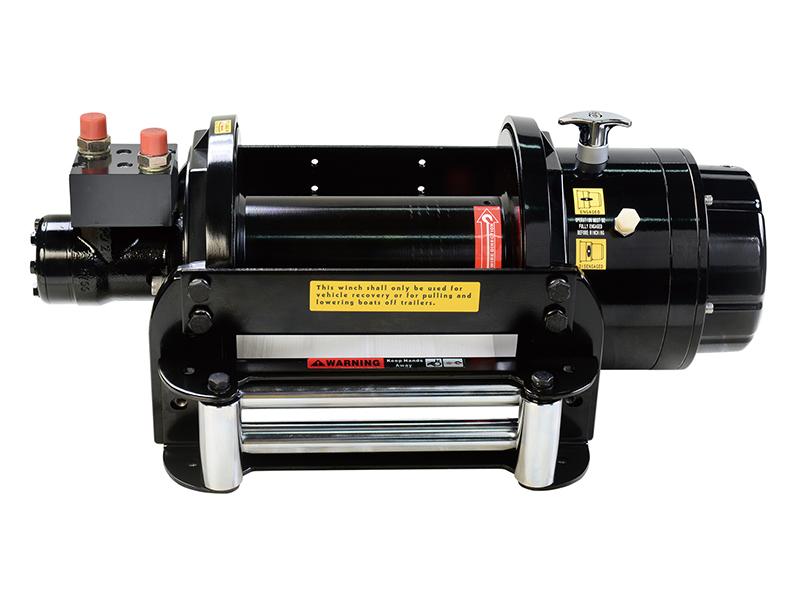

15,000 lb Hydraulic Recovery Winch
  • Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
  • 9.5 in3 / rev highly efficient and constant operating torque motor with 15,000 lb capacity.
  • Hardened 2 stage planetary gear train with 19.4:1 gear ratio provides faster line speed.
  • Turn clutch by a ergonomic T-handle for rapid wire rope payout.
  • Drag brake and over-center valve provided for holding full load.
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application.
  • Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.
