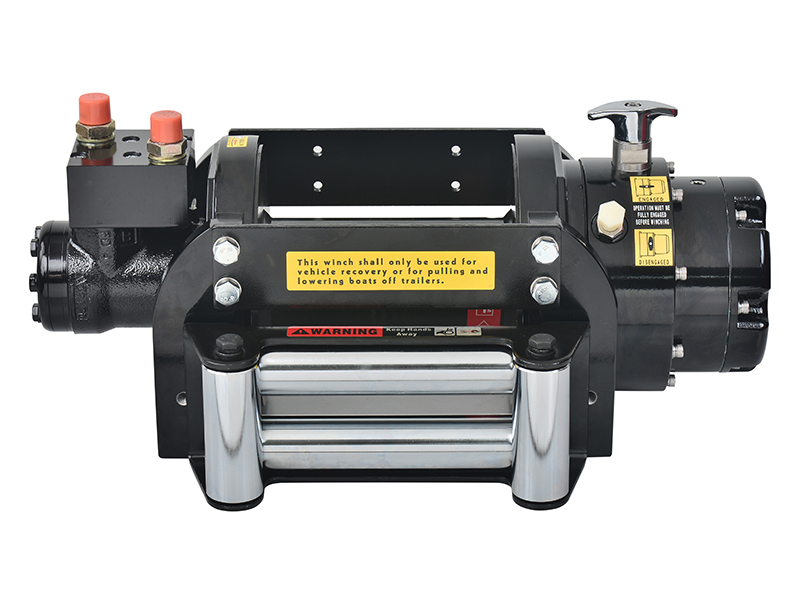

HV-8

Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
4.7 in³ / rev highly efficient and constant operating torque motor with 8,000 lb capacity.
Hardened 2 stage planetary gear train with 16:1 gear ratio provides faster line speed.
Turn clutch by a ergonomic T-handle for rapid wire rope payout.
Drag brake and over-center valve provided for holding full load.
Great for severe duty trailers, roll-back carriers, and commercial recovery application.
Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

Part number: PN 680816 (Std. drum) / PN 681091 (Long drum)
PN 681123 (Std. drum - Clutch in left side) / PN 681347 (Long drum - Clutch in left side)
Rated line pull: 3,630 kg / 8,000 lb (SAE J706 rating)
3,560 kg (EN 14492-1 rating)
Line speed (at 1^st layer of rope) : 15 mpm at 60 l/min (49 fpm at 15.9 g/min)
Operation pressure: 150 bar / 2,175 psi
Max oil flow: 60 l/min (15.9 g/min)
Hydraulic motor: 77.8 cm³/rev (4.7 in³/rev)
Gear ratio: 2-stage planetary gear 16:1
Winch construction: Aluminum die cast housings with steel drum
Clutch (Freespooling): Rotating ring gear
Brake: Spring applied drag brake together with over-center valve supplied
Rotation of winch: Wire rope shall be under-wound orientation only
Drum barrel diameter: 90 mm (3.5")
Drum flange diameter: 201.5 mm (7.9”)
Distance between flanges: 190 mm (7.5") - Std. drum
253 mm (10") - Long drum

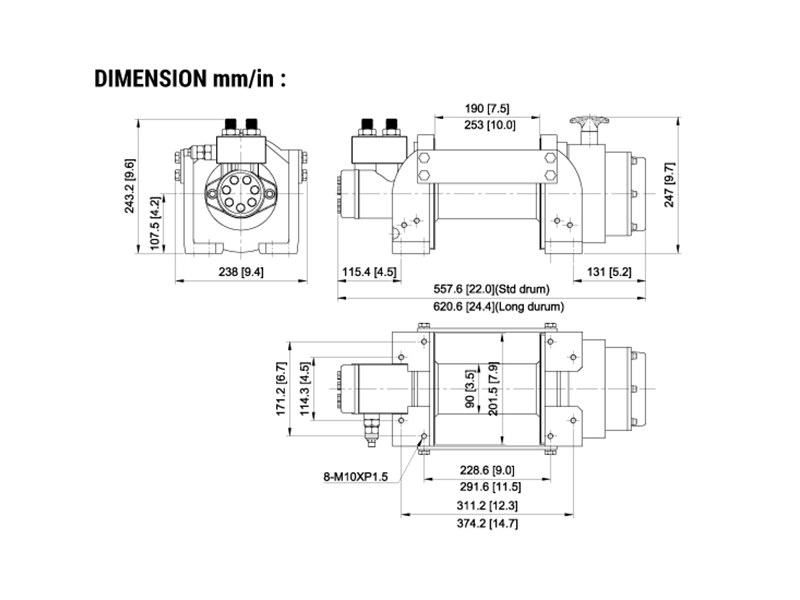

Mounting bolt pattern: 228.6 x 171.2 mm (9” x 6.7”) ; 311.2 x 114.3 mm (12.3" x 4.5") - Std. drum
291.6 x 171.2 mm (11.5” x 6.7”) ; 374.2 x 114.3 mm (14.7" x 4.5") - Long drum
Wire rope recommended:
10 mm x 30.5 m (3/8" x 100') for Std. drum and 40 m (131') for Long drum, 1,960 N/mm² (EIPS) grade with a minimum breaking strength of 69.8 kN (15,663 lbf) required.for SAE J706 and EN 14492-1 ratings

The working coefficient for the first rope layer on the drum shall be at least 2.
The D/d ratio to the center of the rope shall be at least 10 for the drum.
Drum freeboard shall be at least 1.5 x rope diameter.

Line Pull and Rope Capacity

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Standard Accessories

Winch weight: 35.5 kg / 78.1 lb - Std. drum
37.5 kg / 82.7 lb - Long drum
Gross weight: 43.3 kg / 95.3 lb - Std. drum
45.3 kg / 99.9 lb - Long drum
Box dimension (L x D xH) : 615 x 380 x 300 mm (24.2” x 15” x 11.8”) - Std. drum
680 x 380 x 300 mm (26.8” x 15” x 11.8”) - Long drum
