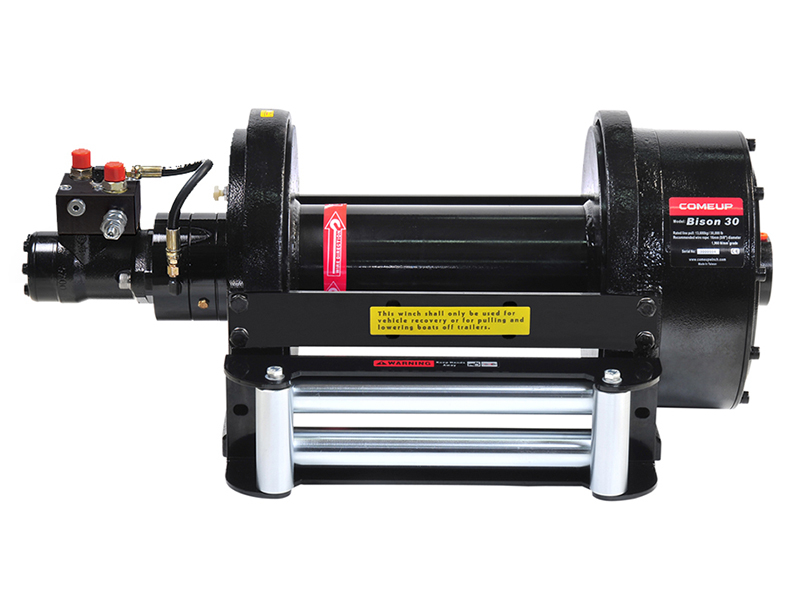

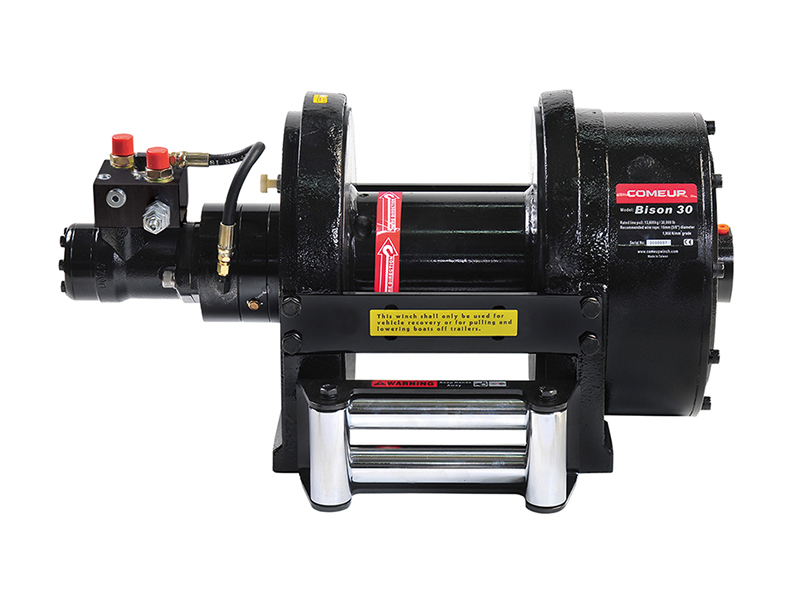

Bison 30

13.6 Tonnes Hydraulic Recovery Winch

Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
155.7 cm³/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
Built-in air clutch for rapid wire rope payout
The Multi-Disc Brake (MDB) patented for holding full load

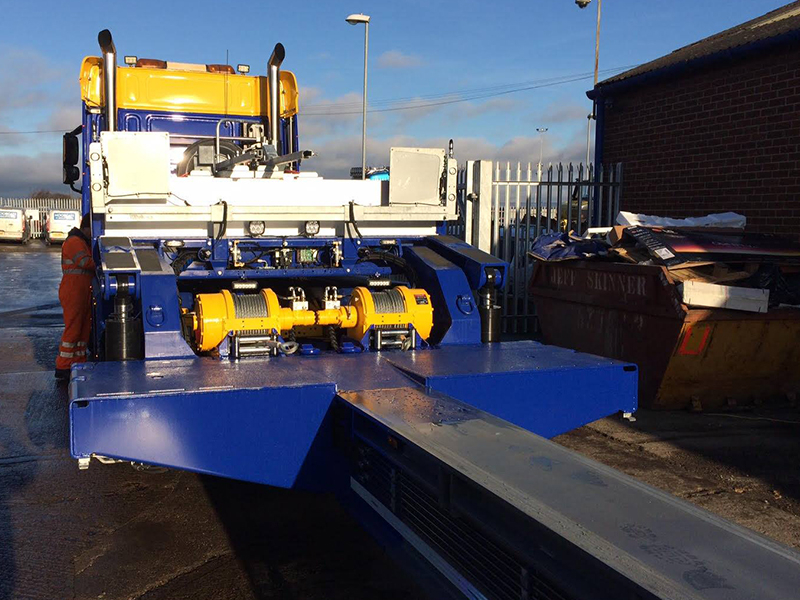

Great for severe duty trailers, roll-back carriers, and commercial recovery application
Roller fairlead, cable tensioner and two ways counterbalance valve supplied
Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC.

Remark: EN Version is available upon request.

SPECIFICATIONS

Part number: PN 683030 (Std. drum) / PN 683352 (Long drum)
Rated line pull: 13,600 kg / 30,000 lb (SAE J706 rating)
Line speed (at 1^st layer of rope) : 5 mpm at 60 l/min (16 fpm at 15.9 g/min)
Operation pressure: 175 bar / 2,540 psi
Max oil flow: 60 l/min (15.9 g/min)
Hydraulic motor: 155.7 cm³/rev (9.5 in³/rev)
Gear ratio: 2-stage planetary gear 41:1
Winch construction: Cast housings with steel drum
Clutch (Freespooling): Output shaft disengaged
Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
Rotation of winch: Wire rope shall be under-wound orientation only

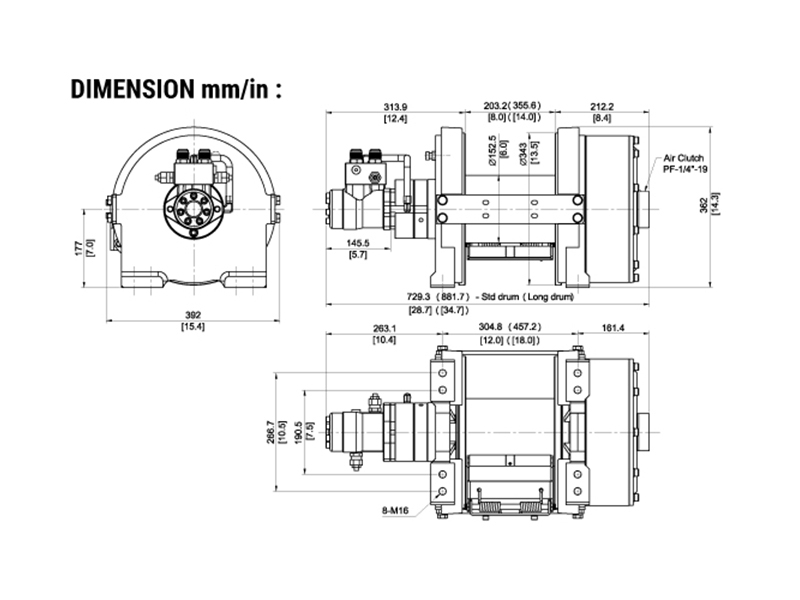

Drum barrel diameter: 152.5 mm (6")
Drum flange diameter: 343 mm (13.5”)
Distance between flanges: 203 mm (8") - Std. drum
355.6 mm (14") - Long drum
Mounting bolt pattern: 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mm (10.5” x 18”) - Long drum
Wire rope recommended: 16 mm x 43 m ( 5/8” x 141’) - Std. drum
16 mm x 75 m ( 5/8” x 246’ ) - Long drum
1,960 N/mm²(EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 rating

PERFORMANCE DATA

Line Pull and Rope Capacity

Layer of Wire Rope	Pull by Layer, kg / lb	Total Rope on the Drum, m / ft		Line Speed
Layer of Wire Rope	Pull by Layer, kg / lb	Std . drum	Long drum	at 60 l/min (15.9 g/min ), mpm / fpm
1^st	13,600 / 30,000	6 / 20	11 / 36	5.0 / 16
2^nd	11,438 / 25,216	14 / 44	25 / 82	5.9 / 19
3^rd	9,864 / 21,745	22 / 73	40 / 131	6.9 / 23
4^th	8,670 / 19,115	32 / 104	58 / 190	7.8 / 26
5^th	7,735 / 17,052	43 / 141	75 / 246	8.8 / 29

* Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor or EN version, please contact your sales representative now for further information.

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

ACCESSORIES

Standard Accessories

Roller fairlead
Counterbalance valve
Cable tensioner

PACKAGE

Winch weight : 175 kg / 386 lb - Std. drum
197 kg / 434 lb - Long drum
Gross weight : 198 kg / 437 lb - Std. drum
235 kg / 518 lb - Long drum
Box dimension : 900 x 510 x 530 mm (35.4” x 20.1” x 20.9”) - Std. drum
1,040 x 620 x 510 mm (40.9” x 24.4” x 20.1”) - Long drum
