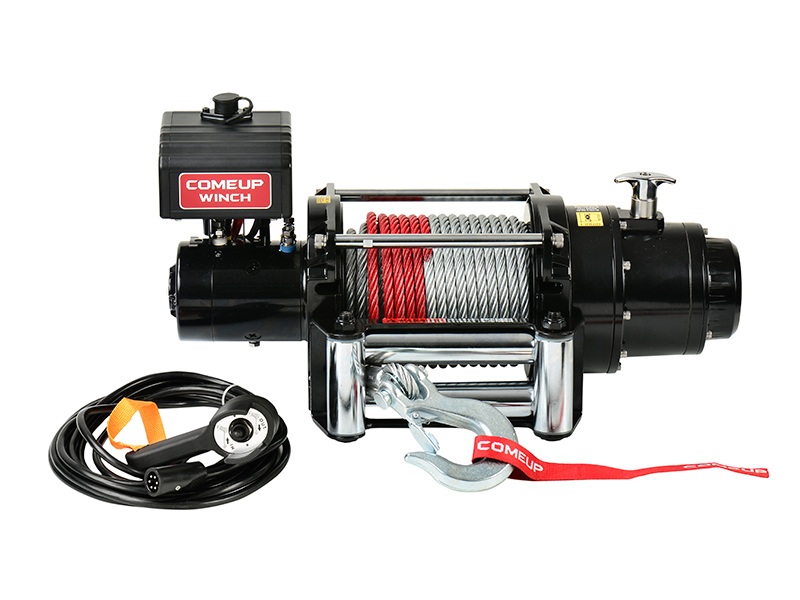

DV-12

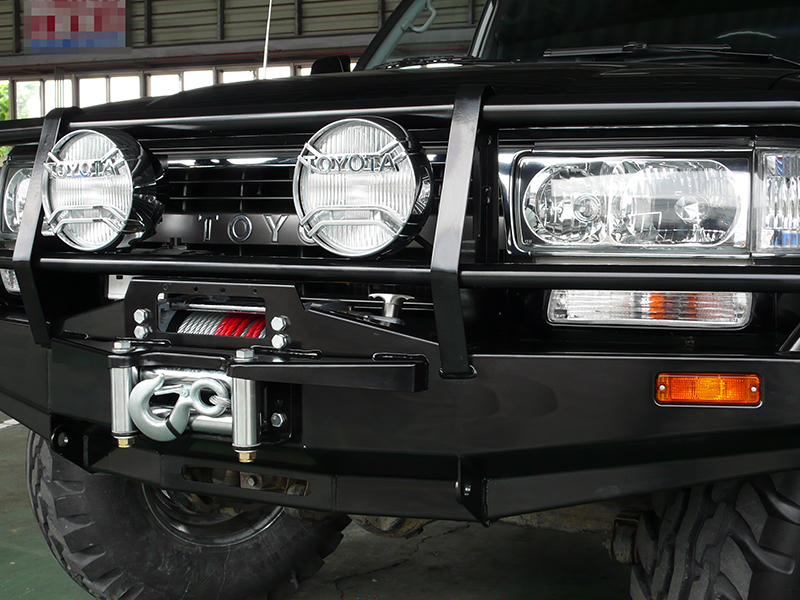

Reliable electric winch for working and playing in off-road environments.
4,180 w/12V or 2,690 w/24V or 4,180 w /48V series wound motor.

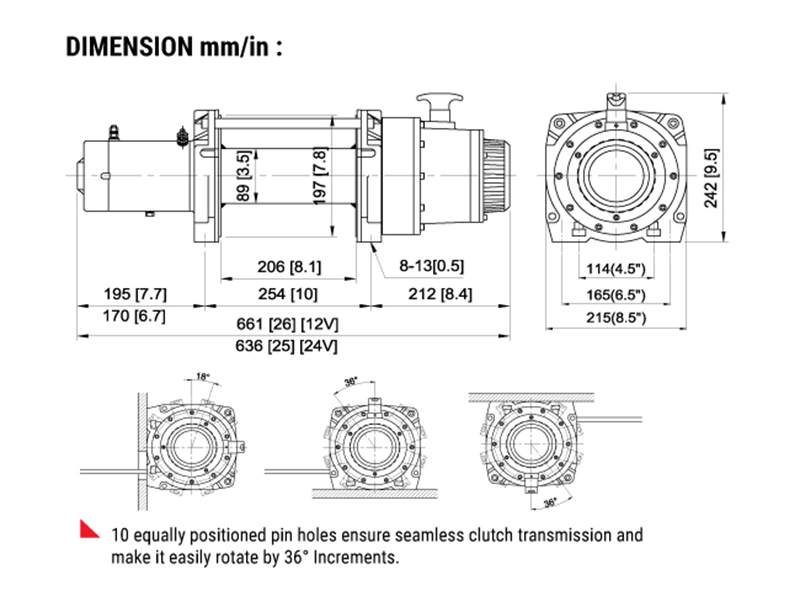

10 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 36 degree Increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation
Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Submersible sealed contactor handles high amps and allows higher duty cycle.
Meets international standards such as SAE J706, CE Machinery Directive 2006/42/EC and CE EMC directive 2014/30/EU

Part number: PN 857130 (12V) / PN 857228 (24V) / PN 857270 (48V)
Rated line pull: 5,443 kg / 12,000 lb single line
Line speed (1^st layer) : 8.3 mpm / 27.2 fpm 60 A at 12V or 50A / 24V or 15A / 48V at no load
1.2 mpm / 4.0 fpm 440 A at 12V or 290A / 24V or 100A / 48V at full load
Motor: 4,180 w / 5.6 hp 12V series wound
2,690 w / 3.6 hp 24V series wound
4,180 w / 5.6 hp 12V series wound
Gear train: 3-stage planetary 261:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 89 mm x 206L mm (3.5” x 8.1”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x 19
Rope size: 9.5 mm x 38 m (3/8” x 125’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box Wire rope w/safety hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Mounting channel Snatch block Winch accessory kit

DV-12 Operation Manual	2022-04-28	PDF, 0.70 MB	Download
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)	2021-07-31	PDF, 0.34 MB	Download
