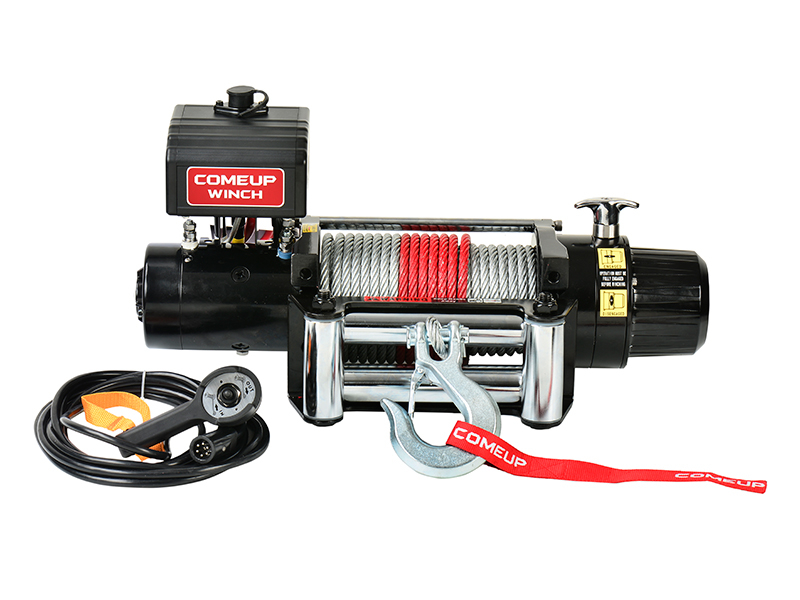

DV-12 lite

Reliable electric winch for working and playing in off-road environments.
3,430w/12V or 1,940w/24V or 3,430w/48V series wound motor.

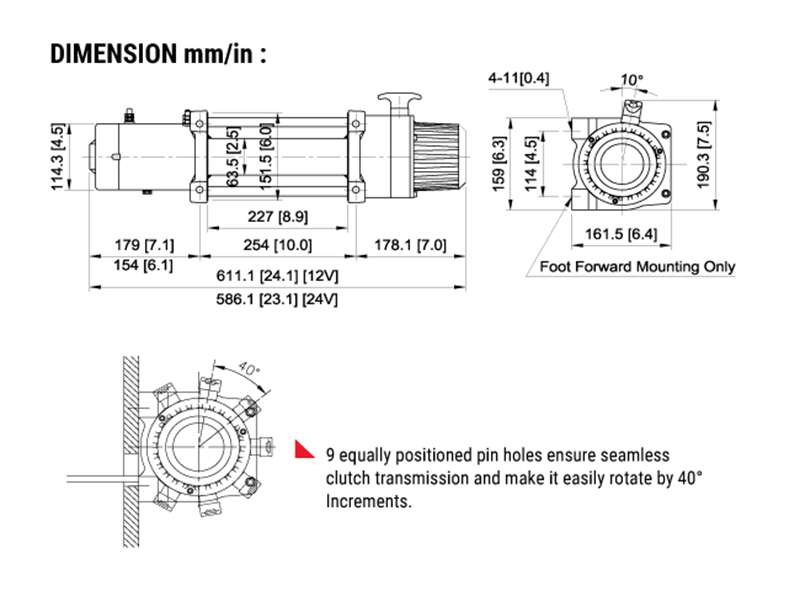

9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation
Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Part number: PN 850012 (12V) / PN 850124 (24V) / PN 850134 (48V)
Rated line pull: 5,443 kg / 12,000 lb single line
Line speed (1^st layer) : 8.0 mpm / 26.2 fpm 50 A at 12V or 30A / 24V or 15A / 48V at no load
1.0 mpm / 3.3 fpm 350 A at 12 V or 210A / 24V or 95A / 48V at full load
Motor: 3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound
3,430 w / 4.6 hp 48V series wound
Gear train: 3-stage planetary 211:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5mm x 227L mm (2.5” x 8.9”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x 19
Rope size: 9.5 mm x 25 m (3/8” x 82’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting: Foot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories	Option Accessories
Roller fairlead Remote control w/5 m (17’) cord Detachable control box Wire rope w/clevis hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Mounting channel Snatch block Winch accessory kit
