DV-6

Heavy duty series wound motor delivers superior torque output and faster line speed.

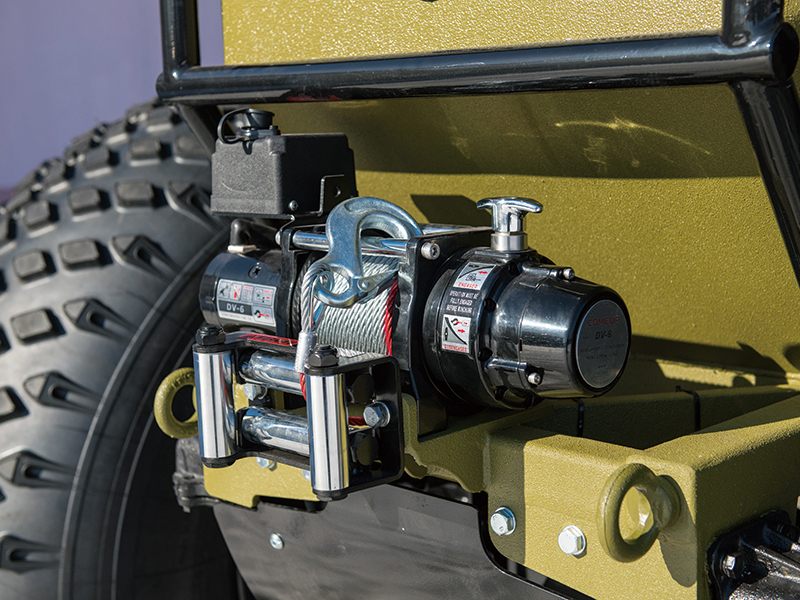

Lightweight and compact design is easy for front of vehicle.
Submersible sealed contactor handles high amps and allows higher duty cycle
An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout.
The U.S Germany, U.K. France, etc patented automatic, full load cone brake structure outside the drum holds the full load without slippage.
Meets international standards of CE Machinery Directive 2006/42/EC, and CE Electromagnetic Compatibility Directive 2014/30/EU.
2” rear receiver and quick connector wiring kits for rear of vehicle as option

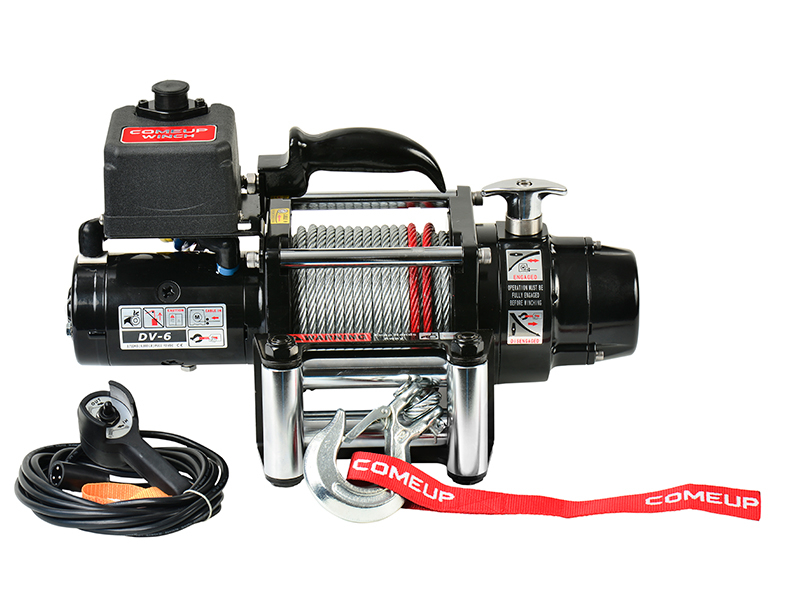

Part number: PN 854750 (12V) Std. drum / PN 854760 (12V) Long drum
Rated line pull: 2,722 kg / 6,000 lb single line
Motor: 2,390 w / 3.2 hp 12V series wound
Gear ratio: 3-stage planetary 216:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum

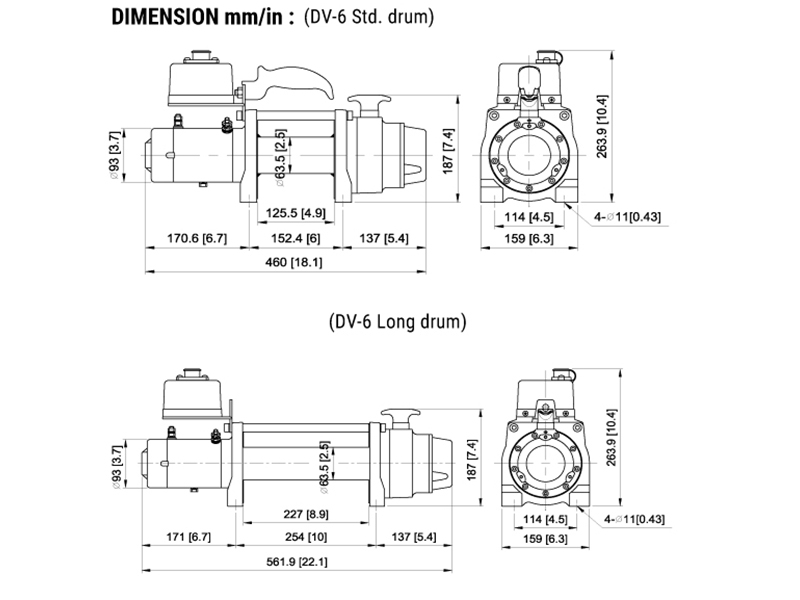

Drum size: Std. drum : 63.5 mm x 125.5L mm (2.5” x 4.9”L)

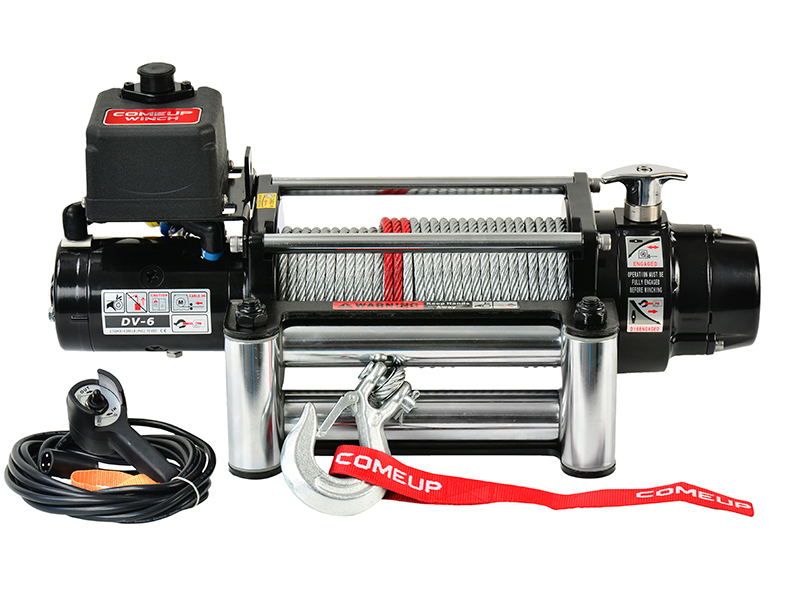

Long drum : 63.5 mm x 227L mm (2.5" x 8.9"L)
Control: Waterproof remote w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x 19
Rope size: Std. drum : 7.1 mm x 24.4 m (9/32” x 80’)
Long drum : 7.1 mm x 30.5 m (9/32" x 100')
Mounting bolt pattern: Std. drum : 152.4 mm x 114 mm (6” x 4.5”)
Long drum : 254 mm x 114 mm (10" x 4.5")

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories:

Winch weight ( including rope) :
- Std. drum : 22.8 kg / 50.3 lb
- Long drum: 25.2 kg / 55.6 lb
Gross weight :
- Std. drum : 28.4 kg / 62.6 lb
- Long drum: 32.8 kg / 72.3 lb
Box dimension( L x D x H) :
- Std. drum : 505 x 210 x 340 mm (19.9” x 8.3 ” x13.4”)
- Long drum : 672 x 210 x 390 mm (26.5”x8.3”x15.4”)
