NEW

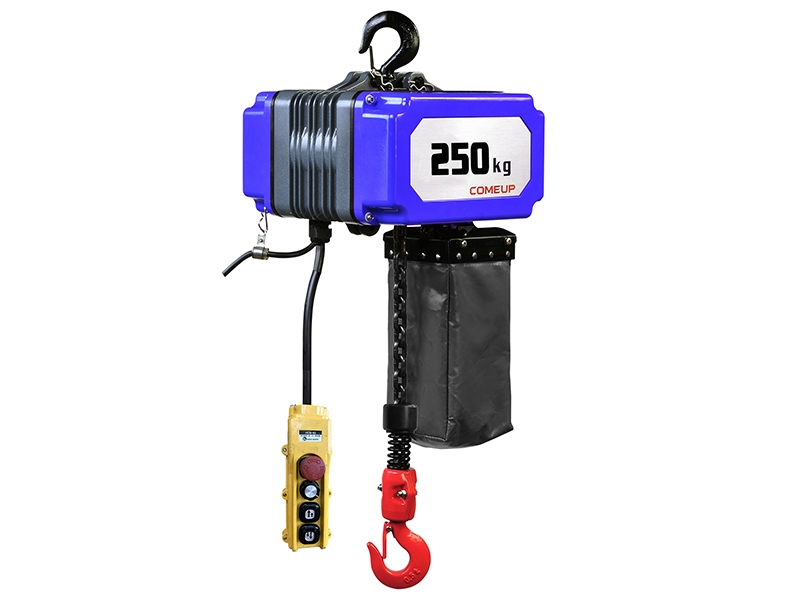

BMC-250

Brushless DC Motor Chain Hoist for versatile lifting tasks - 250 kg lifting load

The Brushless Motor Chain Hoist is a cutting-edge solution designed for industries requiring precise and efficient lifting capabilities. This advanced energy-saving hoist utilizes a brushless motor that eliminates carbon dust and sparks, ensuring a long lifespan and minimal maintenance. Its energy efficiency is enhanced by DC variable frequency control, which offers low startup and rated current, delivering smooth and stable operation. This makes it ideal for precision tasks such as molding hoist applications and vertical carrying in logistics, where accuracy and reliability are paramount.
Safety is a top priority with the Brushless Motor Chain Hoist, which is equipped with six major safety features. These include auto power-off on motor overheating, crane overload, abnormal input voltage, and motor stall. Additionally, a safety torque limiter prevents the hook from getting stuck, while upper and lower limit switches protect against chain over-wrapping. The emergency stop pendent switch with two-stage, dual-speed control further enhances safety, allowing precise alignment and feeding at low speeds, critical for precision molding operations.
Built to last, this energy-saving hoist features an IP55-rated aluminum alloy housing, providing durability and protection against dust and water. The brake system, driven by a motor dynamic brake and mechanical ratchet pawls, ensures maximum safety during operation. Compliance with international standards, including CE Machinery Directive, CE EMC Directive, EN 14492-2, JIS B8815, ISO 4301-1, and ASME B30.7, guarantees the highest level of performance and safety.
The Brushless Motor Chain Hoist is also easy to install, equipped with an industrial-grade plug that connects directly to a single-phase 200-240V power supply. This makes it a versatile and reliable choice for various industries looking for an energy-efficient, high-performance hoist solution. Whether for precision molding or general lifting tasks, this hoist delivers unmatched performance and safety, making it an essential tool in any industrial setting.

3D Viewer Inquiry Now

SPECIFICATIONS

Model	BMC-250
Duty Cycle	30% ED
Machinery Directive	1Am(FEM), M4(ISO)
Power	AC200-240V 50/60Hz, single phase
Lifting Load	25 kg
Lifting Height	3 m
Type of Fall	Single
Motor Output	500w, 6.6A Brushless DC motor
Line Speed (220V 60Hz)	0.4~3.6 / 13.1 m/min
Brake	Dual brakes of motor dynamic brake, paired with mechanical ratchet pawls
Gear Ratio	35.2 :1
Load Chain	Grade FC80– Links 6.3 mm dia. x 19 mm long

The lifting height shown is the maximum using the standard chain storage bag. For further options are also available upon request

Warning:

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The fixing point for baby hoist shall be capable of supporting the load required.

Warranty:

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Chain are not included under warranty.

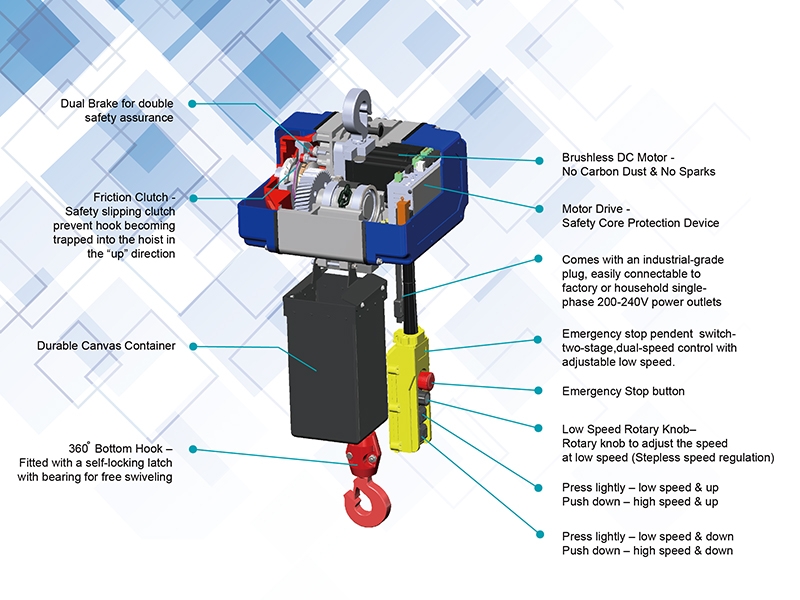

FEATURES

Brushless motor generates no carbon dust or sparks, and has long lifespan.
Excellent energy-saving efficiency using DC variable frequency control, which provides low startup and rated current, and ensures smooth operation.
Emergency stop pendent switch has two-stage, dualspeed control. At low speeds, rotary knob provides precise alignment/feeding, ideal for precision-first industries, e.g. precision-molding, vertical carrying in logistics.
Equipped with 6 major safety features:
1. Auto power-off on motor overheating.
2. Auto power-off for crane overload.
3. Auto power-off for abnormal input voltage (too high /too low).
4. Auto power-off for motor stall.
5. Safety torque limiter to prevent hook from getting stuck.
6. Upper and lower limit switches to prevent chain over-wrapping
Brake System driven by motor dynamic brake, paired with mechanical ratchet pawls for maximum safety
IP55 rating.
Aluminum alloy housing provides durability to overall structure.
Comes with an industrial-grade plug, which can be directly inserted into a single-phase 200-240V power.
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7.
