NEW
BMC-1000

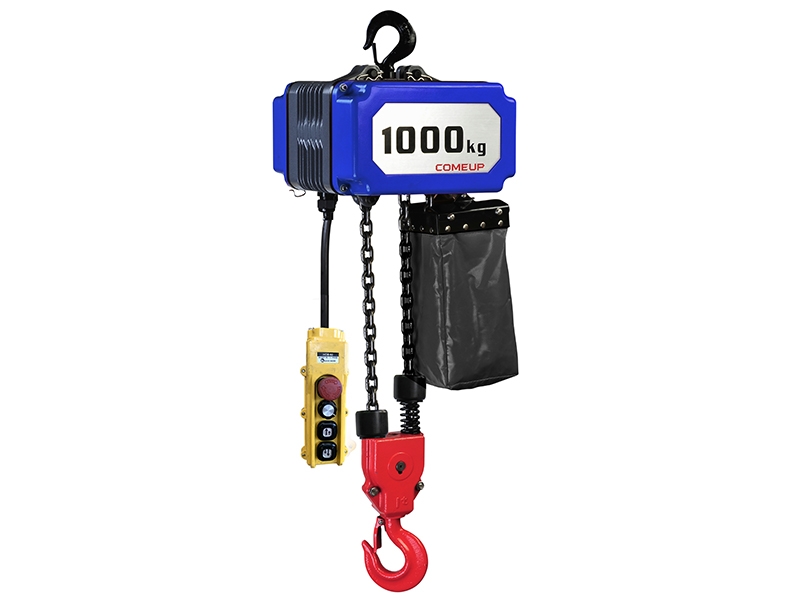

Brushless DC Motor Chain Hoist - 1,000 kg lifting load
- Brushless motor generates no carbon dust or sparks, and has long lifespan.
- Excellent energy-saving efficiency using DC variable frequency control, which provides low startup and rated current, and ensures smooth operation.
- Emergency stop pendent switch has two-stage, dualspeed control. At low speeds, rotary knob provides precise alignment/feeding, ideal for precision-first industries, e.g. precision-molding, vertical carrying in logistics.

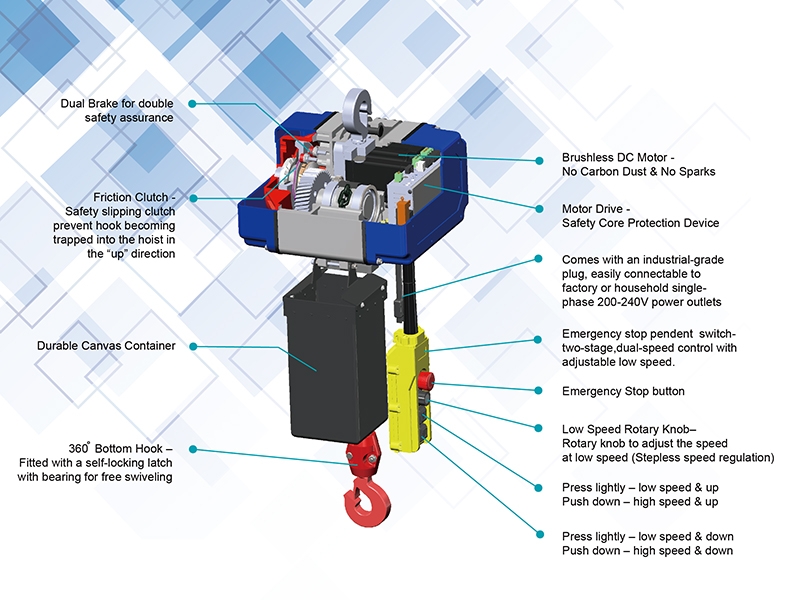

- Equipped with 6 major safety features:
1. Auto power-off on motor overheating.
2. Auto power-off for crane overload.
3. Auto power-off for abnormal input voltage (too high /too low).
4. Auto power-off for motor stall.
5. Safety torque limiter to prevent hook from getting stuck.
6. Upper and lower limit switches to prevent chain over-wrapping
- Brake System driven by motor dynamic brake, paired with mechanical ratchet pawls for maximum safety
- IP55 rating.
- Aluminum alloy housing provides durability to overall structure.
- Comes with an industrial-grade plug, which can be directly inserted into a single-phase 200-240V power.
- Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7.
