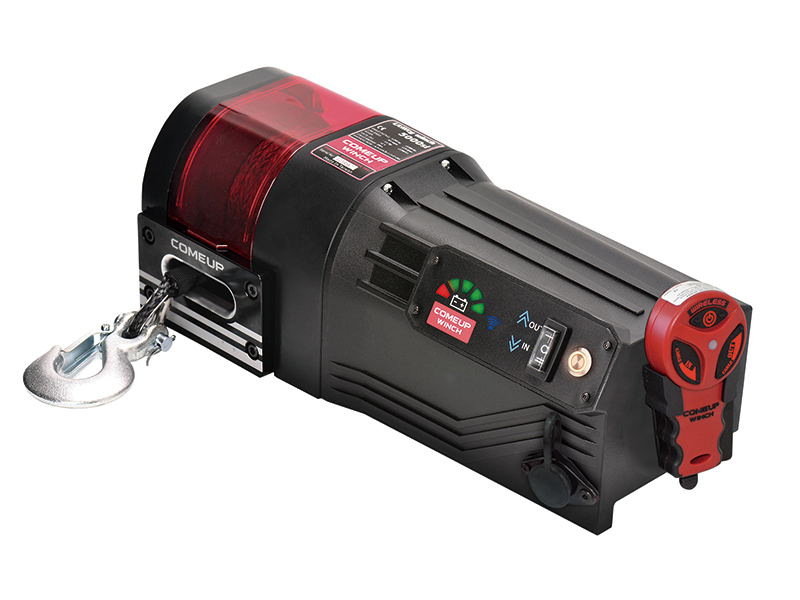

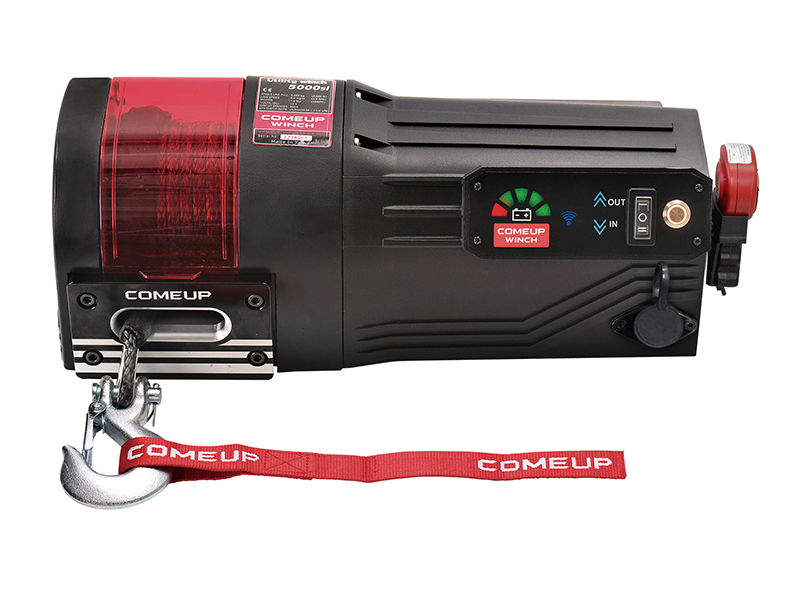

Utility Winch 5000si

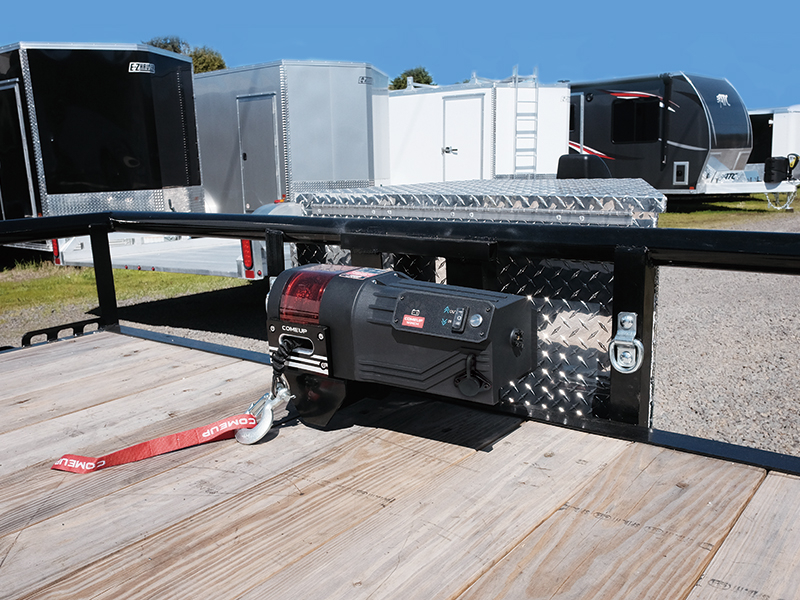

Compact and light weight allows a wide range of application on trailers and boats.
High torque permanent magnet motor enables high line pull at lower amp and slip free dynamic brake.
3-stage planetary gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
Sliding pin and ring gear clutch for rapid rope payout.
Automatic load-holding mechanical brake plus motor dynamic brake ensure holding the load without slippage.
With circuit breakers to prevent motor overheating.
Both built-in digital signal two way wireless remote control and on board rocker switch (IN/OUT) control.

Intelligence Dashboard (IDB) functions:

Part number: PN 645010
Rated line pull: 2,268 kg ( 5,000 lb ) single line
Motor: 1,300 w / 1.7 hp, 12V permanent magnet
Gear train / ratio: 3-stage planetary 170:1
Clutch (freespooling): Sliding ramping
Brake: Mechanical spring applied brake plus permanent magnet motor dynamic brakes
Drum size: 54 mm x 83L mm (2.1” x 3.3”L)
Control: Wireless remote control and on board rocker switch control
Synthetic rope size: 6.3 mm x 15.2 m (1/4” x 50’ )

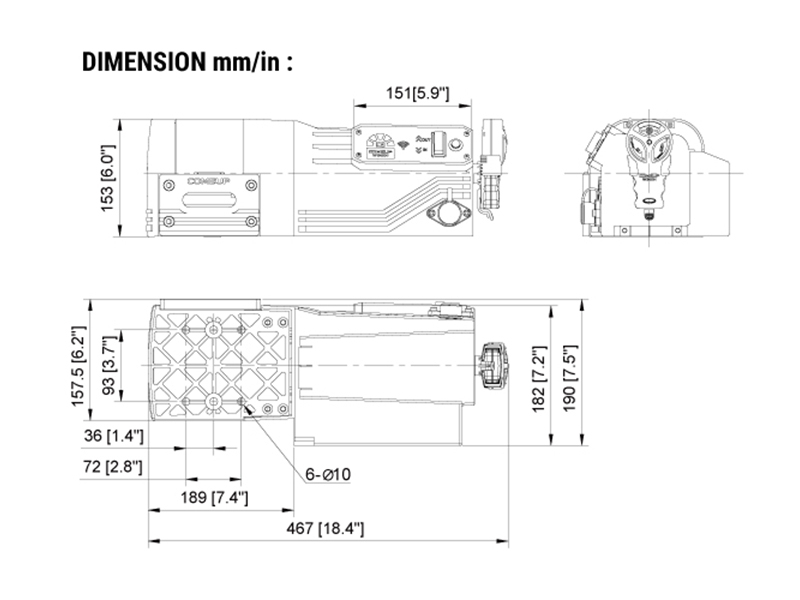

Mounting bolt pattern: 72 mm x 93 mm (2.8” x 3.7”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty
