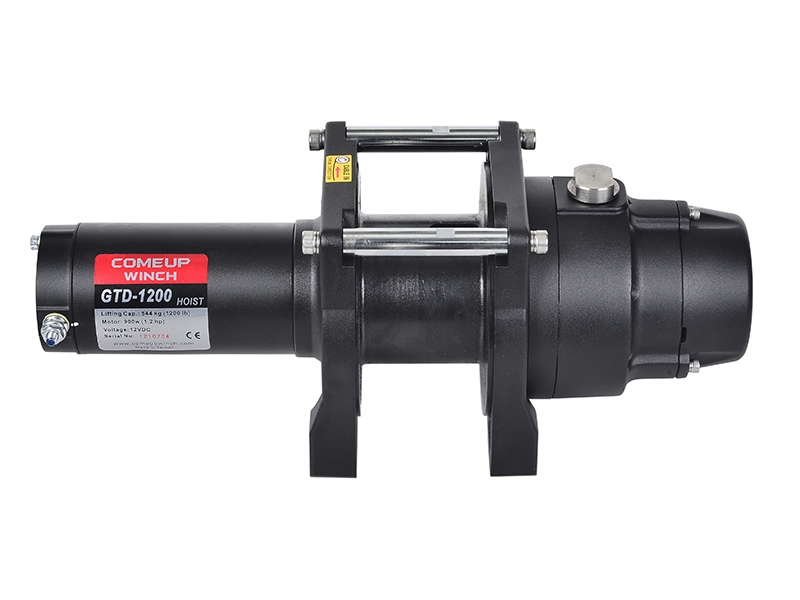

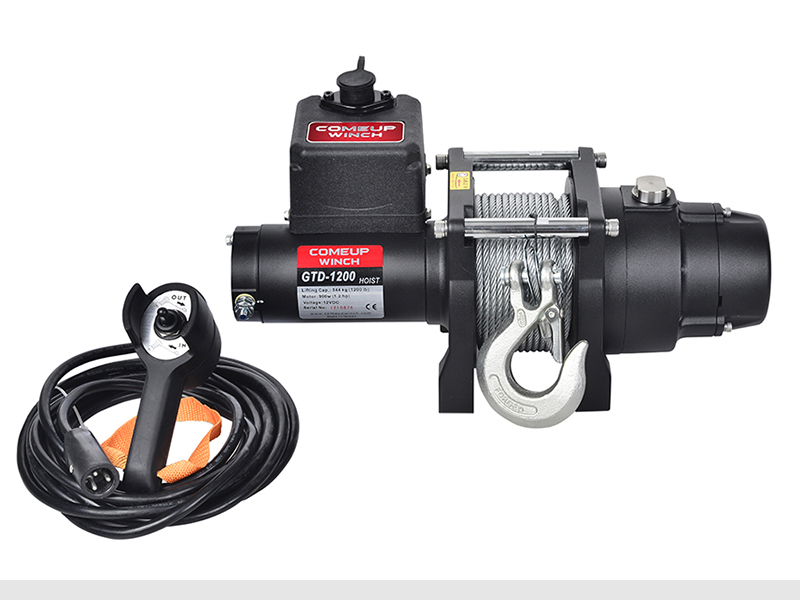

GTD-1200

Provides an answer to the health and safety recommendations for manual lifting.
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
Waterproof industrial remote control with 5 m lead.
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Part number:
PN 751321 (12V) / PN 751375 (24V)
PN 751220 (12V) w / o controls and rope assembly
PN 751265 (24V) w / o controls and rope assembly
Rated load: 544 kg / 1,200 lb
Line speed (at 1^st layer of rope):
12V : 7.4 mpm / 24.3 fpm 30A at no load
5.5 mpm / 18.0 fpm 130A at full load
24V : 5.9 mpm / 19.4 fpm 15A at no load
5.0 mpm / 16.4 fpm 50A at full load
Motor: 900 w / 1.2 hp 12/24V permanent magnet
Gear ratio: 3-stage planetary gear 216:1
Brake (outside the drum): Mechanical cone brake and permanent motor dynamic brakes together
Hoist construction: Aluminum die cast housings with cast iron drum

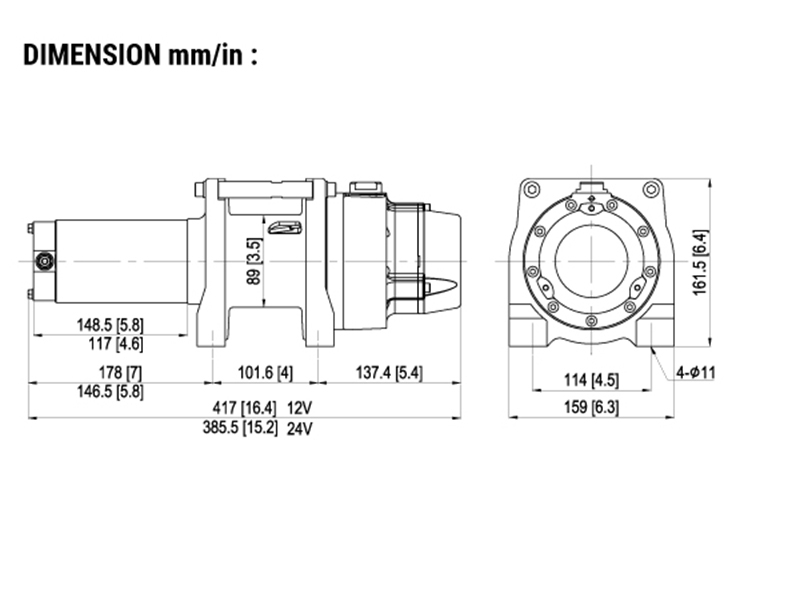

Drum size: 89 x 73 mm (3.5” x 2.9")
Control: Remote control with 5 m (17') lead
Rope type: Galvanized aircraft A7 x 19
Rope size: 4.8 mm x 18.3 m (3/16" x 60')
Mounting bolt pattern: 114 x 101.6 mm (4.5” x 4”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU
- ASME B30.5

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
