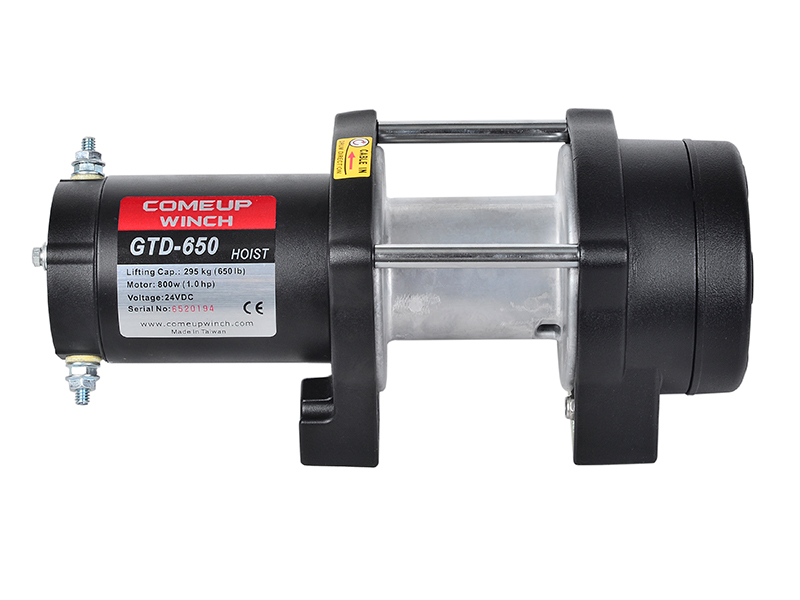

GTD-650

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation..
Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load.

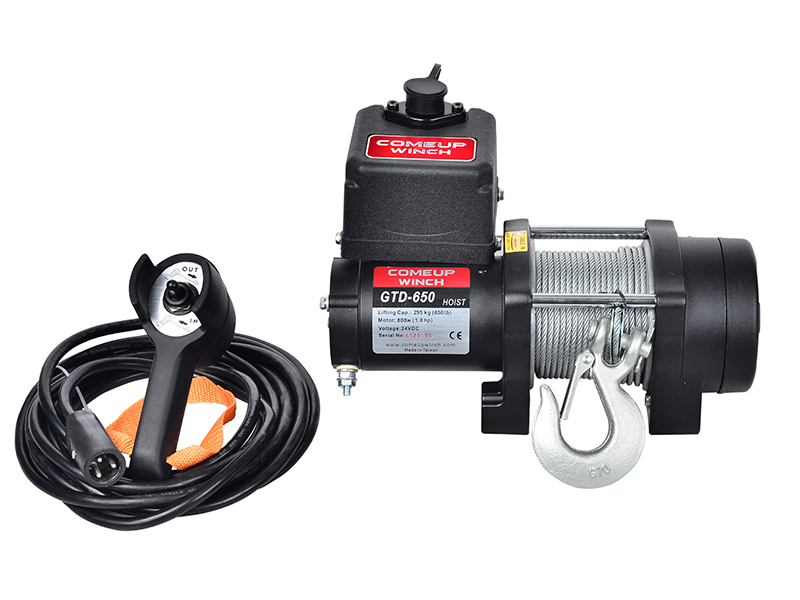

Waterproof industrial remote control with 5 m lead
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Part number:
PN 750265 (12V) / PN 750280 (24V) / PN 750300 (48V)
PN 750160 (12V) w / o controls and rope assembly
PN 750188 (24V) w / o controls and rope assembly
Rated line lift: 295 kg / 650 lb
Line speed (at 1^st layer of rope):
12V : 6.1 mpm / 20.0 fpm 20A at no load
4.4 mpm / 14.4 fpm 55A at full load
24V : 7.0 mpm / 23.0 fpm 15A at no load
5.3 mpm / 17.4 fpm 30A at full load
48V : 4.8 mpm / 15.7 fpm 6A at no load
4.6 mpm / 15.1 fpm 15A at full load
Motor: 800 w / 1.0 hp 12/24V/48V, permanent magnet
Gear ratio: 3-stage planetary gear 138.5:1
Brake: Mechanical spring applied and permanent motor dynamic brakes together

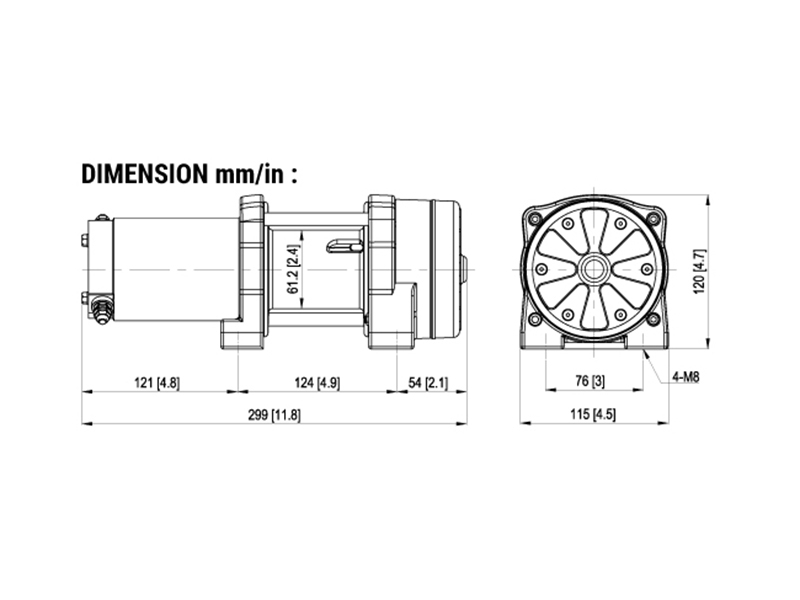

Hoist construction: Aluminum die housings and drum
Drum size: 61.2 x 105 x 75 L mm ( 2.4 “ x 4.13 ” x 3.0 “ L )
Control: Remote control with 5 m (17') lead
Rope type: Galvanized aircraft A7 x 19
Rope size: 3.6 mm x 18.3 m (9/64" x 60')
Mounting bolt pattern: 124 x 76 mm (4.9” x 3”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU
-ASME B30.5

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull,	Line Speed, mpm / fpm			Amp Draw, A			Percentage Duty Cycle, Min / 10 min
kg / lb	12V	24V	24V	12V	24V	48V	12V	24V	48V
No load	6.1 / 20.0	7.0 / 23.0	4.8 / 15.7	20	15	6	con	con	con
147 / 320	5.0 / 16.4	6.0 / 19.7	4.7 / 15.4	40	22	10	5.0	4.0	5.0
295 / 650	4.4 / 14.4	5.3 / 17.4	4.6 / 15.1	55	30	15	3.5	3.0	3.5

Line Pull and Rope Capacity:

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.
