SPECIFICATIONS
|
Model number |
Three phase |
CEP-3001- |
||||
|
Double fall load |
kg |
3,000 |
||||
|
Double fall speed |
M/min |
5.8 |
||||
|
Motor |
hp x P |
7.5 hp x 4 P |
||||
|
Power Source |
3ø 50Hz |
380/400/415V |
||||
|
Lifting height |
M |
5 |
8 | 14 | ||
|
Wire rope |
ø mm x M |
12 x 16 |
12 x 22 | 12 x 34 | ||
|

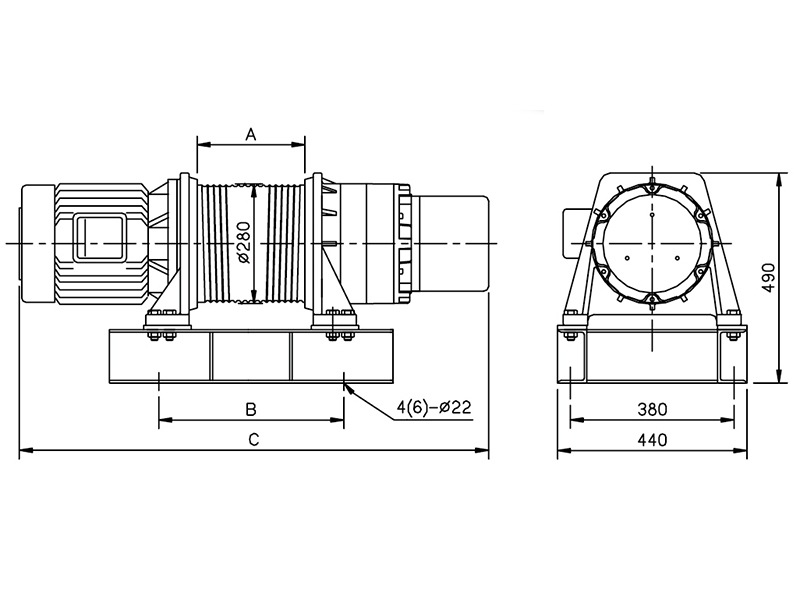

Dimension |
A mm |
460 |
610 | 970 | ||
|
B mm |
640 |
790 |
970 |
|||
|
C mm |
1300 |
1450 |
1630 |
|||
|
Net weight |
kg |
239 |
252 | 283 | ||
|
Gross weight |
kg |
289 |
307 | 348 | ||
Means Lifting Height
Note:
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- 60 Hz motor is available upon request.
- Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.
