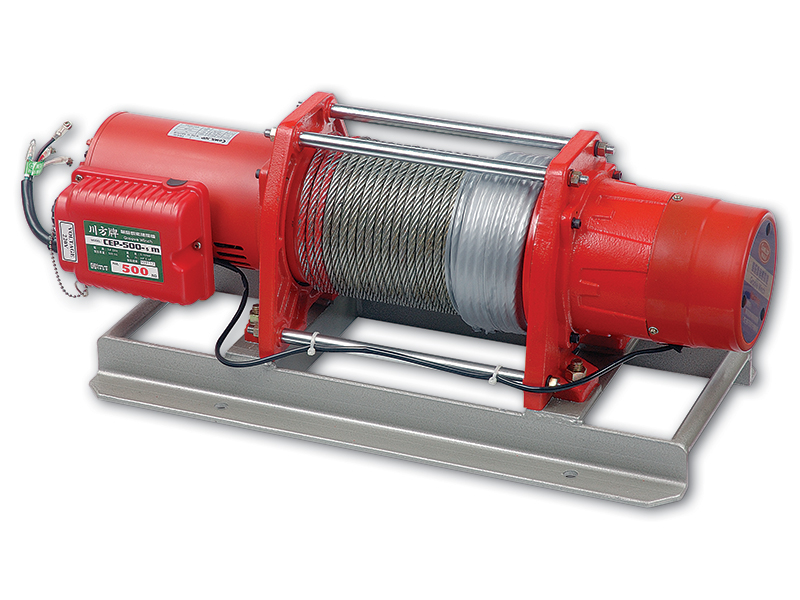

CEP-500(S)
- Single Rope
SPECIFICATIONS
|
Model number |
Single phase |
CEP-500S- |
||
|
Three phase |
CEP-500- |
|||
|
Double fall load |
kg |
500 |
||
|
Double fall speed |
M/min |
8.3 |
||
|
Motor |
hp x P |
1 hp x 4 P |
||
|
Power Source |
1ø 50Hz |
220/230/240V |
||
|
3ø 50Hz |
380/400/415V |
|||
|
Lifting height |
M |
5 |
8 |
|
|
Wire rope |
ø mm x M |
8 x 16 |
8 x 22 |
|
|

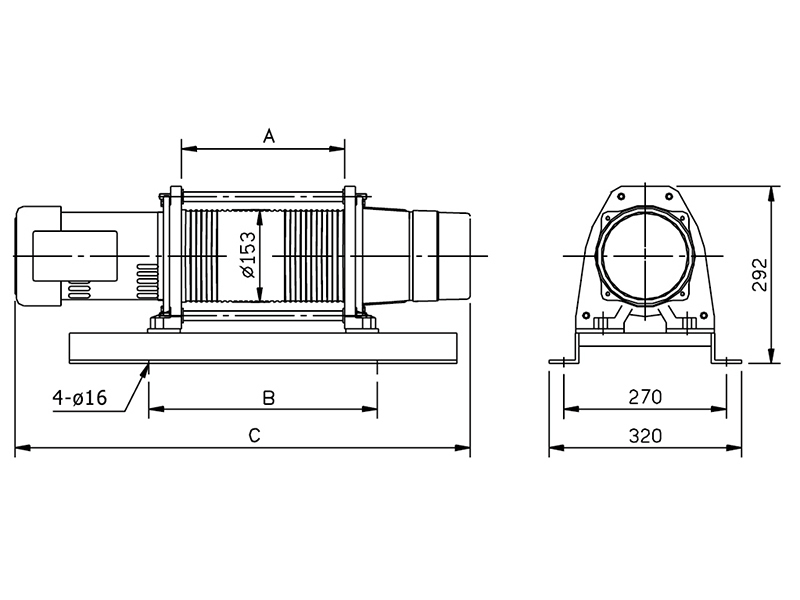

Dimension |
A mm |
265 |
365 |
|
|
B mm |
380 |
480 |
||
|
C mm |
770 |
870 |
||
|
Net weight |
kg |
68 |
73 |
|
|
Gross weight |
kg |
86 |
94 |
|
Means Lifting Height
Note:
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- 60 Hz motor is available upon request.
- Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%
