CWS-80

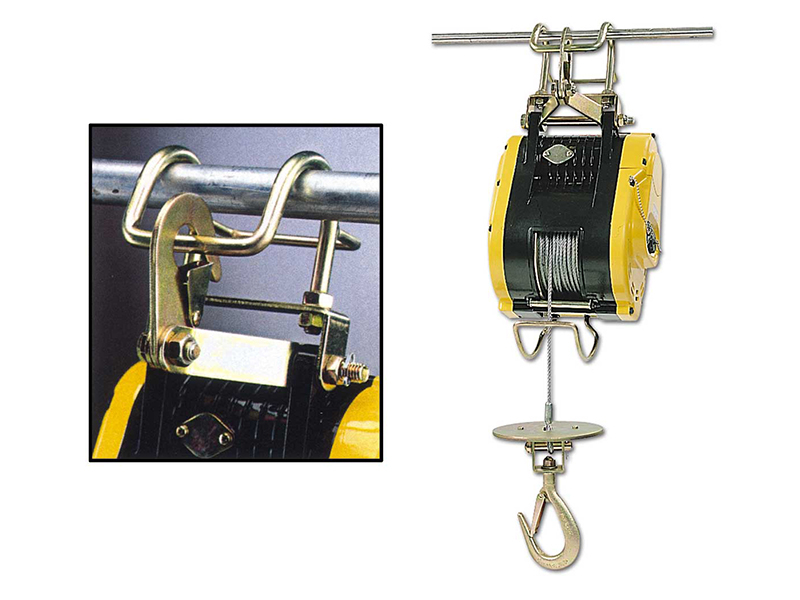

Lightweight and compact design
Allows easy installation
Upper hoisting limit switch
When rope touches the limit arm, hoisting is automatically stopped
Lower hoisting limit switch
Sensor arm automatically stops motor if the wire rope is under-wound
Dynamic and mechanical ratchet brake
Double ratchet pawl brakes provide instant and safe braking
Can operate on standard domestic power supply
Wire rope comes with a safety-latch weight hook
Emergency stop function switch is available upon request

Lifting capacity: 80 kg at wire rope top layer
Lifting speed: 18 – 30 m/min
Motor rating IP44:
1 phase, 110V : 0.8 kw x 8 A series wound
1 phase, 220V / 230V / 240V : 0.8 kw x 4 A weries wound
Gear ratio: 92:1
Maximum lifting height: 23 m
Braking methods:
for motor: Electromagnetic
for gear: mechanical ratchet

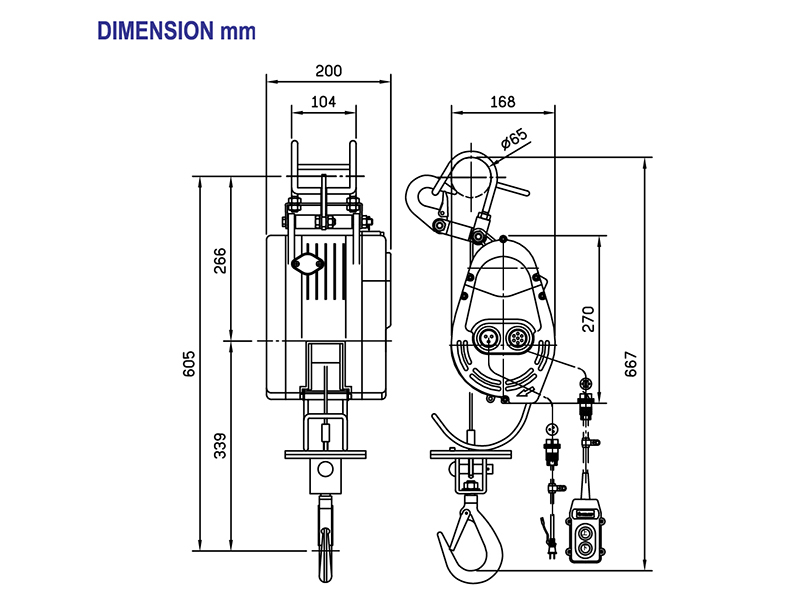

Wire rope: 4 mm x 24 m
Drum length: 46 mm
Drum dia.: 70 mm
Drum flange dia.: 158 mm
* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Lifting Capacity, Lifting Speed and Rope Capacity:

Note: Above performance ratings are based on 50Hz supply.

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
Keep hands, clothing, jewelry, etc. away from wire rope, drum and other moving parts

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Standard Accessories	Option Accessories
Wire rope 4 mm x 24 m Weight hook CHW-0032 Remote control, CPB-313 * Switch cord 1.25 mm² x 6C x 10 m * Pendant switch CPB-313 Power lead 1.5 mm x 3C x 5 m and industry plug	Remote control, PB-417 * Switch cord 1.25 mm² x 6C x 10 m * Pendant switch PB-417 w/an emergency stop button Crane CRH-0710 for compact winch ratings 250 kg
