APE 12

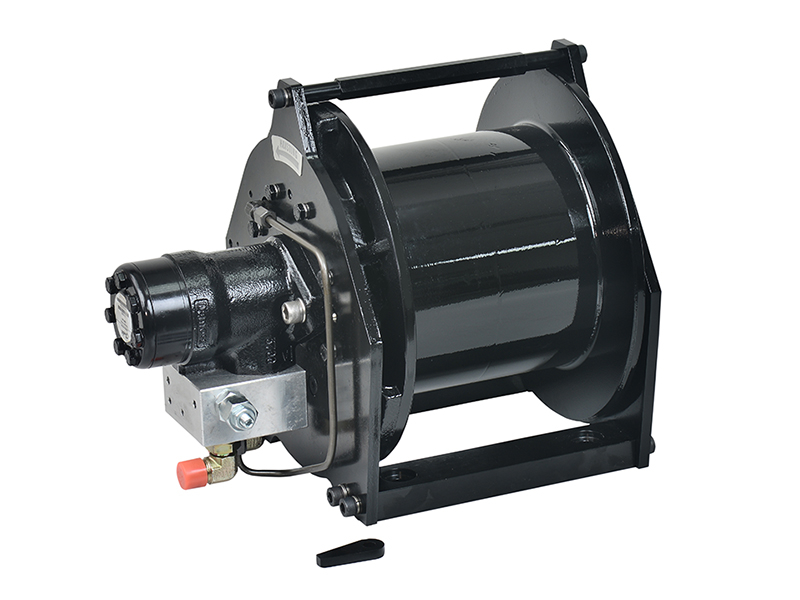

1,200 kg Hydraulic Hoist
- Internally lubricated for reliable power and an exceptionally long service life.
- Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
- Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
- The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
- The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
- The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
- Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC
PERFORMANCE DATA
Line Lift and Rope Capacity
| Layer of Wire Rope | Lift by Layer, kg / lb |
Line Speed, mpm/fpm |
Total Rope on the Drum, m / ft |
| 1st | 1,535 / 3,384 | 27.8 / 91 | 12.2 / 40 |
| 2nd | 1,404 / 3,094 | 30.4 / 100 | 25.6 / 84 |
| 3rd | 1,294 / 2,853 | 33 / 108 | 40 / 131 |
| 4th | 1,200 / 2,645 | 35.5 / 116 | 55 / 180 |
The total rope on the drum may vary from figures stated elsewhere
 |

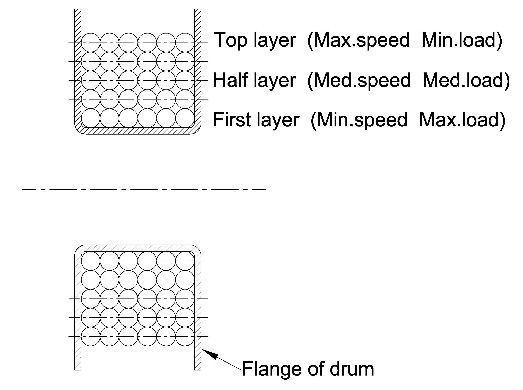

►Load Rated Load and speed vary according to how much wire rope is on the Leave two free layers below the top of the drum flanges to meet Leave a minimum of ½ inch ( 13 mm ) below the tope of the drum |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the top layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
