APE 9

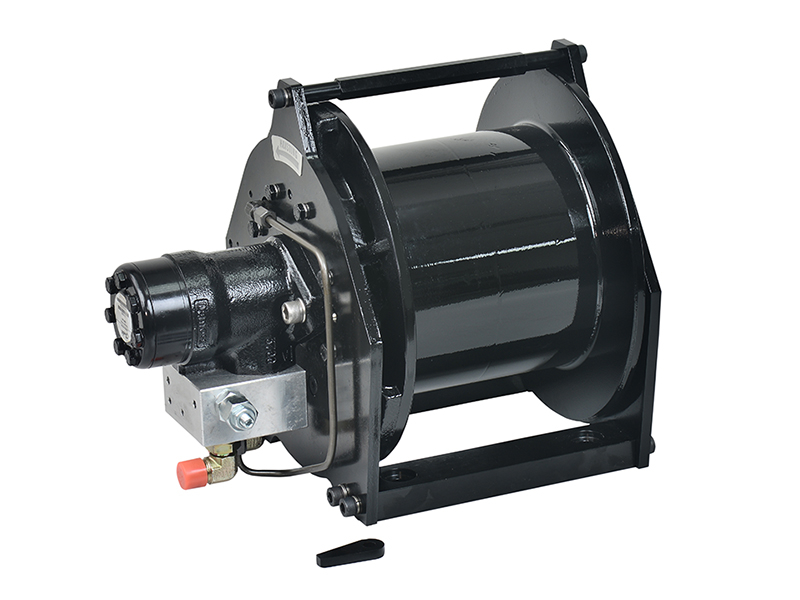

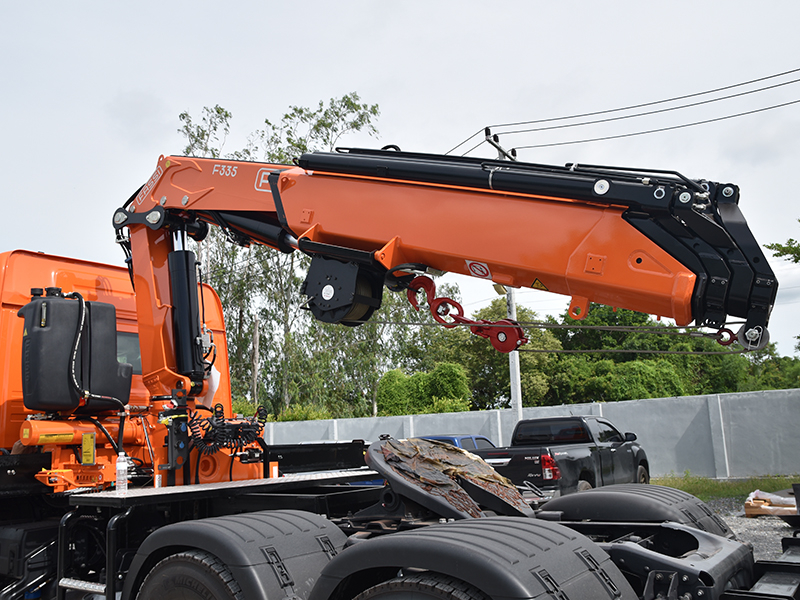

900 kg Hydraulic Hoist

Internally lubricated for reliable power and an exceptionally long service life.
Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC

SPECIFICATIONS

Part number: PN 681900
Rated line lift: 900 kg ( 1,984 lb ) single line at the top layer of rope
Line speed: 37 mpm / 121 fpm single line at the top layer of rope
Motor: 155.7 cm³/rev ( 9.5 in³/rev )
Operation pressure: 140 bar ( 2,031 psi )with maximum back pressure on return line of 5 bar
Max-Min pump flow: 35 - 15 l/min ( 9.2 - 4.0 g/min )
Gear ratio: 1-stage planetary 5:1
Brake: Multi-Disc Brake (MDB) patented and counter-balance valve together
Winch construction: steel housings with steel drum
Winch Rotation: counter clockwise rotation of the drum

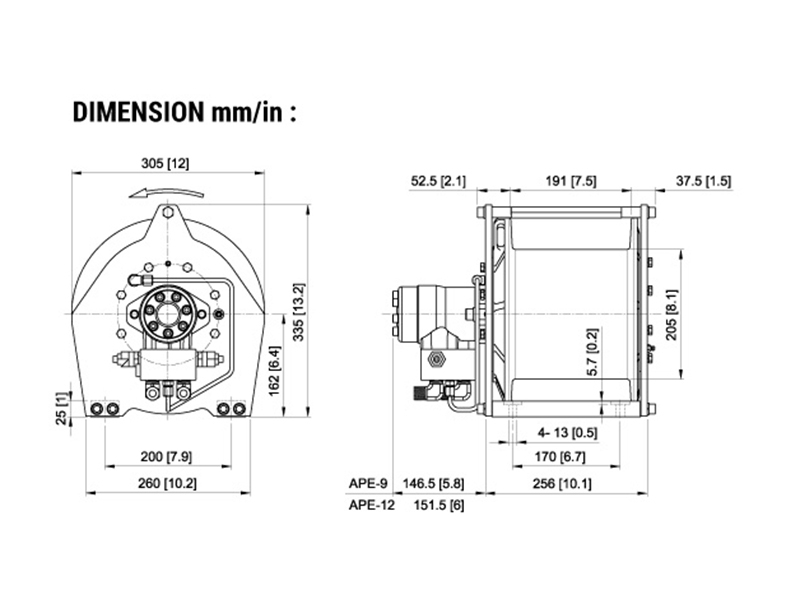

Drum size (dxDxL): 205 x 305 x 191 mm (8.1” x 12.0” x 7.5”)
Recommended wire rope:
8 mm x 68 m with 1,960 N/mm² grade with minimum breaking strength of 44.7 kN for EN 14492-2 rating
5/16” x 223 ft with EIPS grade with minimum breaking strength of 10,003 lbf for ASME B30.7 rating
Mounting bolt pattern: 200 x 170 mm ( 7.9” x 6.7”)

PERFORMANCE DATA

Line Lift and Rope Capacity

Layer of Wire Rope	Lift by Layer, kg / lb	Line Speed, mpm / fpm	Total Rope on the Drum, m / ft
1^st	1,100 / 2,425	30.1 / 99	15 / 50
2^nd	1,023 / 2,255	32.3 / 106	31.8 / 104
3^rd	956 / 2,108	34.6 / 114	49.4 / 162
4^th	900 / 1,984	37 / 121	68 / 223

The total rope on the drum may vary from figures stated elsewhere

►Load Rated

Load and speed vary according to how much wire rope is on the
drum. The first layer of rope on the drum delivers the slowest speed
and the maximum load. A full drum delivers the maximum speed and
the minimum load. For this reason, all hydraulic hoisting winches are
rated at their top layer of wire rope on the drum

Leave two free layers below the top of the drum flanges to meet
European lifting rules

Leave a minimum of ½ inch ( 13 mm ) below the tope of the drum
flange to meet ASME 30.7

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the top layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

ACCESSORIES

Option Accessories

Cable tensioner
Wire rope with hook
Up and Down limit protection device

PACKAGE

Hoist weight: 63 kg / 140 lb
Gross weight: 80 kg / 176 lb
Box dimension (L x D x H): 550 x 440 x 570 mm (21.7” x 17.3” x 22.4”)
