Rope Stopper
Premium accessory to protect the fairlead
- Part Number : PN 883399
- Protect the hawse fairlead from damage of the hook.
- The stopper is used as an isolator to eliminates hook impact when winch is cable-in.
- Two-piece design with two screws for easy installation and removal.
- Suitable for 10 mm (3/8”) & 11 mm (7/16”) in diameter synthetic rope and hawse fairlead.
- Made of rubber with tough construction.
- Stopper weight: 120 g

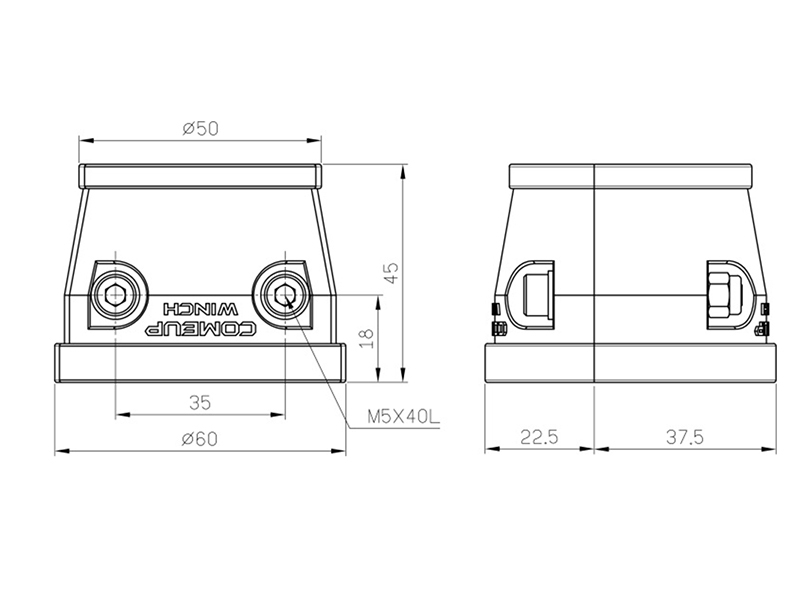

- Dimensions: 60 mm (dia.) x 45 mm (thick)
INSTALLATIONS
- Disengaged the clutch.
- Freespool and pull out the rope.
- Engaged the clutch
- Take off clevis hook from winch rope.

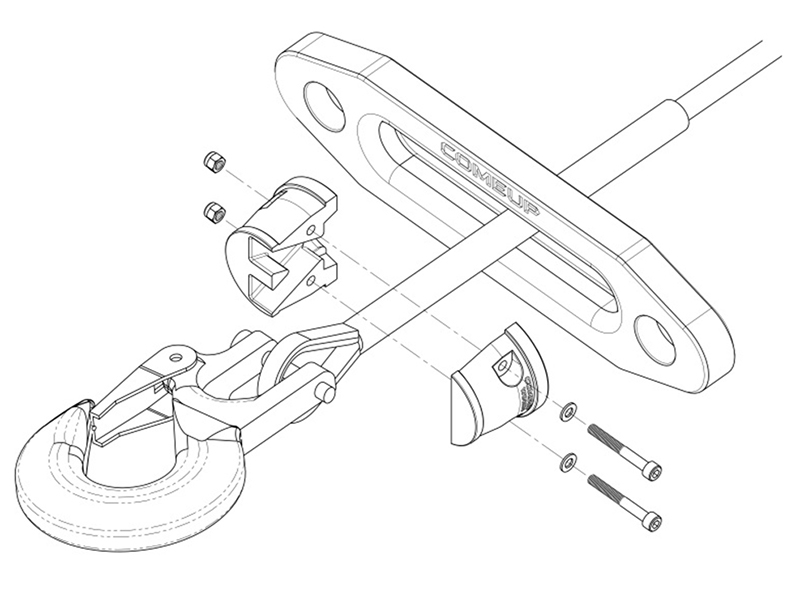

- Remove the two screws and separate the two halves of the winch rope stopper.
- Place the rope between the two halves and insert the four bolts and tighten.
- Re-attach clevis hook to rope thimble.
- Engaged clutch and retract rope onto winch drum until clevis hook is close to the winch rope stopper and hawse fairlead.
Note: Wear leather gloves
