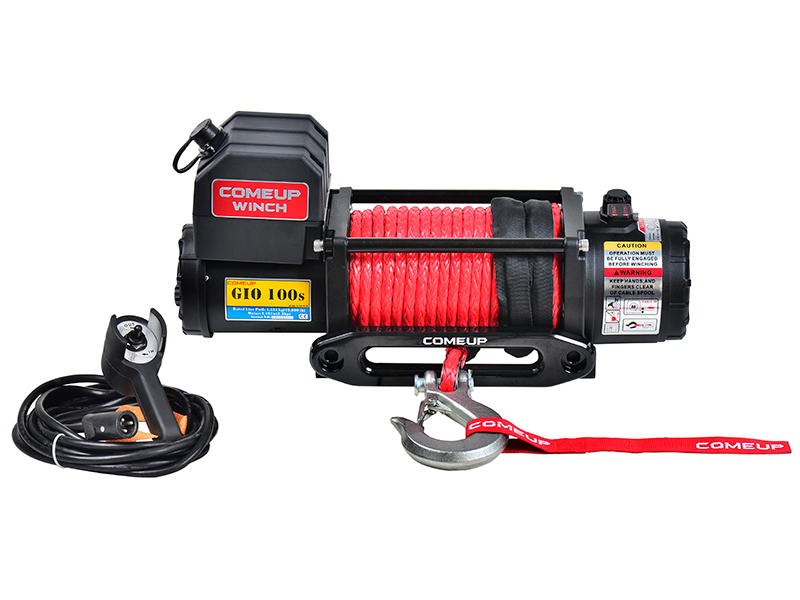

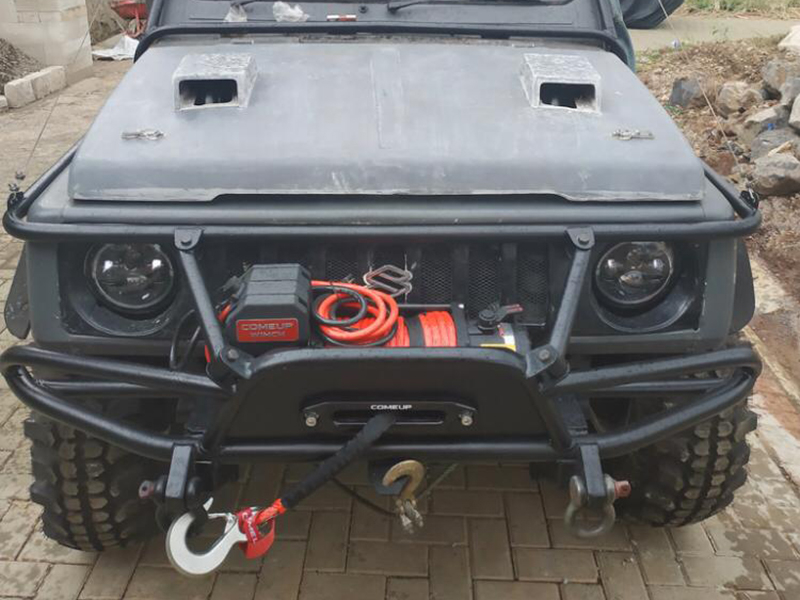

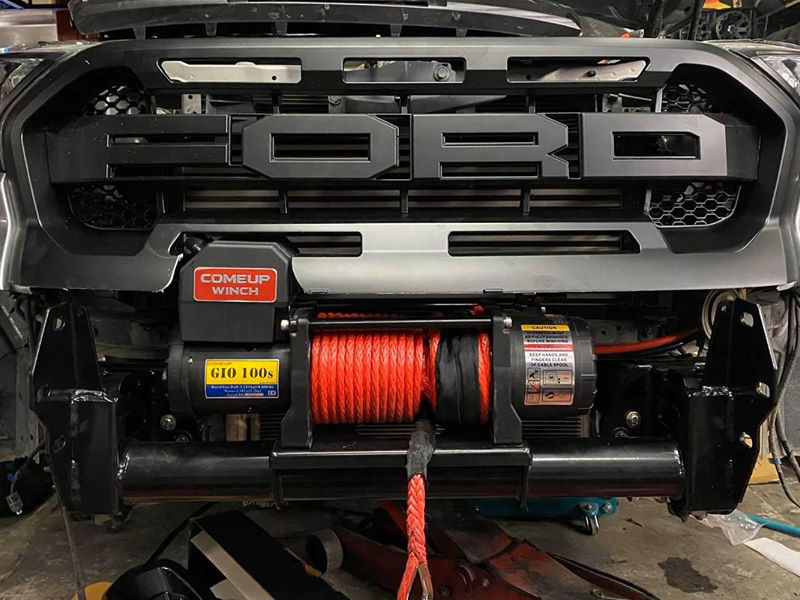

GIO 100s
4.5 Tonnes Self-Recovery Winch
- 12V DC reliable recovery winch rated at 10,000 lb. pulling exceeds your expectations.
- Series-wound motor for power and fast line speed.
- Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
- Exclusive brake design with No. 37C device for better winching control.
- Durable, smooth, and reliable three-stage planetary gear train.
- Fine powder coated finish provides better weather resistance.
- Waterproof rated IP 68.
SPECIFICATIONS
- Part number: PN 853839
- Rated line pull: 4,535 kg / 10,000 lb single line
- Motor: 4,101 w / 5.5 hp 12V series wound
- Gear train: 3-stage planetary 234.6:1
- Clutch (freespooling): Rotating ring gear
- Brake (inside the drum): Exclusive brake design with No. 37C device
- Winch construction: Aluminum die cast housings with steel drum

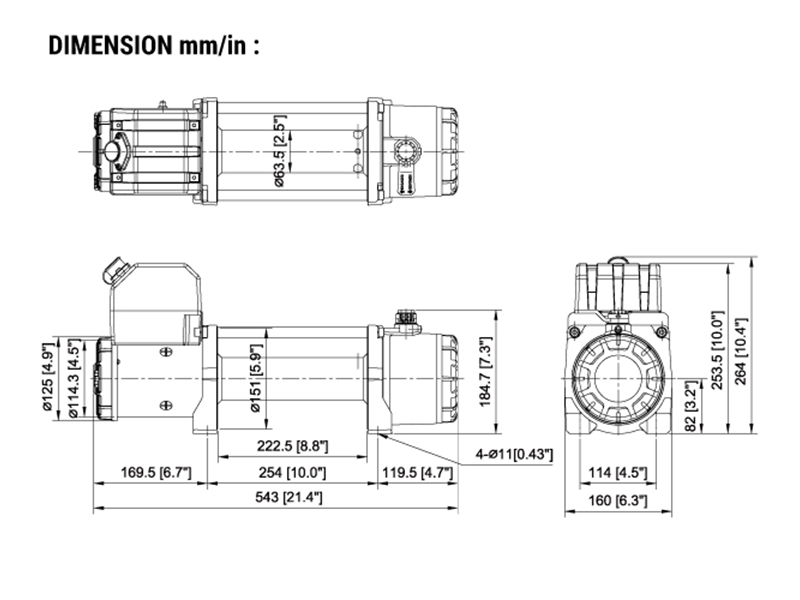

- Drum size: 63.5 mm x 222.5L mm (2.5” x 8.8”L)
- Control: Waterproof reomte w/ 5 m (17') cord
- Rope size: Synthetic rope, 10 mm x 26 m (3/8" x 85.3')
- Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
- Mounting: Foot forward or foot down mounting workable
- Finish: Matte black powder-coated
PERFORMANCE DATA
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| 12V | ||
| No load | 8.3 / 27.2 | 45 |
| 1,134 / 2,500 | 4.0 / 13.1 | 120 |
| 2,268 / 5,000 | 3.3 / 10.9 | 200 |
| 3,402 / 7,500 | 3.1 / 10.3 | 260 |
| 4,535 / 10,000 | 2.9 / 9.5 | 310 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,535 / 10,000 | 5.0 / 16.5 |
| 2nd | 3,598 / 7,932 | 11.4 / 37.4 |
| 3rd | 2,982 / 6,574 | 19.2 / 62.9 |
| 4th | 2,547 / 5,615 | 26 / 85.3 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.
ACCESSORIES
Standard Accessories
- Hawse fairlead
- Remote control w/5 m (17’) cord
- Synthetic rope w/clevis hook
- 1.8 m (6’) 2 gauge battery lead
- Handsaver strap
PACKAGE
- Winch weight: 33.7 kg / 74.3 lb
- Gross weight: 45.2 kg / 99.6 lb
- Box dimension (L x D x H) : 650 x 195 x 415 mm (25.6” x 7.7” x 16.3”)
DOWNLOAD
| GIO 100s Operation Manual | 2022-04-29 | PDF, 0.48 MB | Download |
