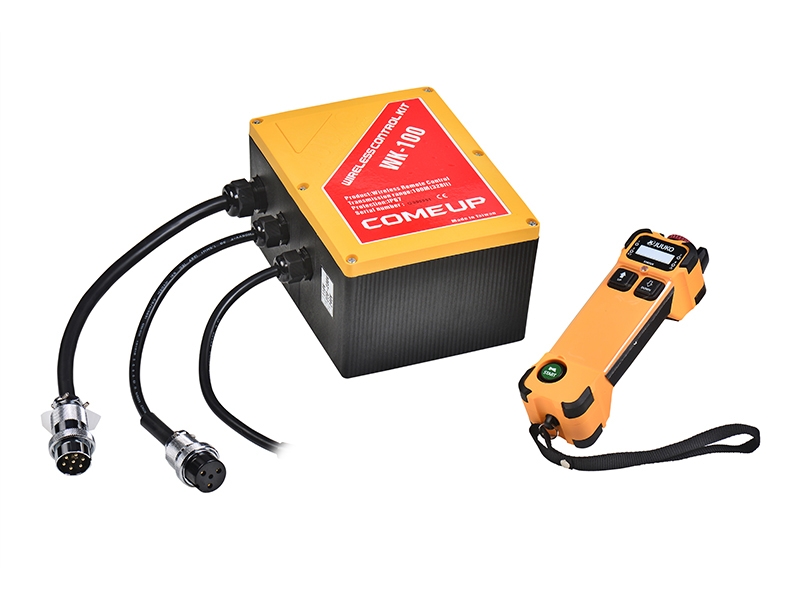

Wireless Control Kit (WK-100L)

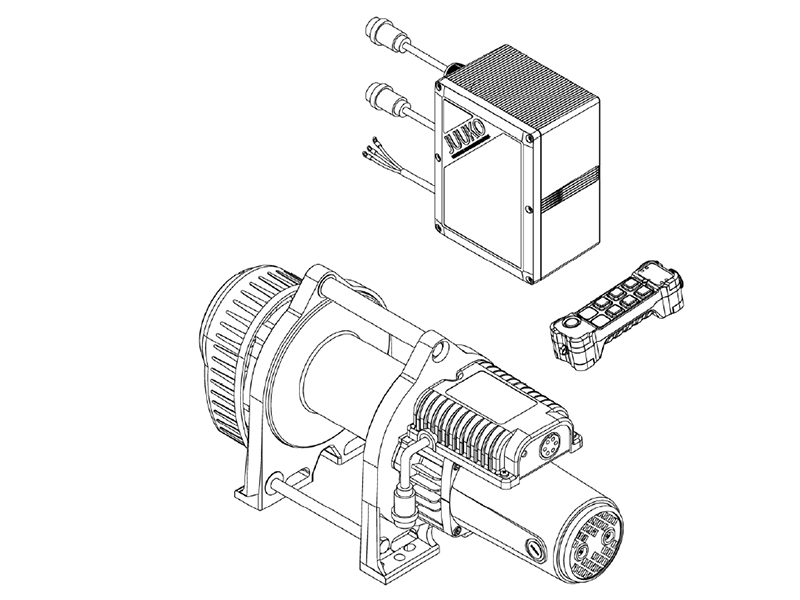

Wireless Control Kit for COMEUP CWL winch

Cut power emergency stop design (built in three relays) meets highest safety standard.
High performance Industrial radio control module with operating range up to 100M.
Industrial standard transmitter with mushroom type EMO button and LED operating indicators.
High IP rating: Transmitter IP65; Receiver: IP67

Control module			Indirect control +Wireless Control
Frequency band			433MHz
Typical operating range			100 M (328 ft)
Applicable current			AC 110V 15A / 220V 7.5A / 240V 7.5A
Function			Go up / Go down / Emergency stop
Control Unit	Power Input	Current range	110V OR 220V OR 240V
		Power lead for main power source	2.0 mmx 3C x 1.5M
	Power Output	Power lead for winch	2.0 mmx 3C/3P quick connector
		Control lead	2.0 mmx 6C/6P quick connector
	Contactors	Number	3 sets
	Receiver	Power supply	AC 110V / 220V / 240V
		Function	Go up/ Go down / built-in buzzer
	Protection degree		IP67
Transmitter	Power supply		DC3V
	Button		Emergency stop switch, Power on switch
	Power consumption		16mA
	Battery		LR6(AA)1.5V*2
	Protection degree		IP65
Environment	Operating temperature		-25°C ~ + 55°C
	Storage temperature		-40°C ~ + 65°C
	Humidity		90%RH
Complied with RED directive			2014/53/EU
