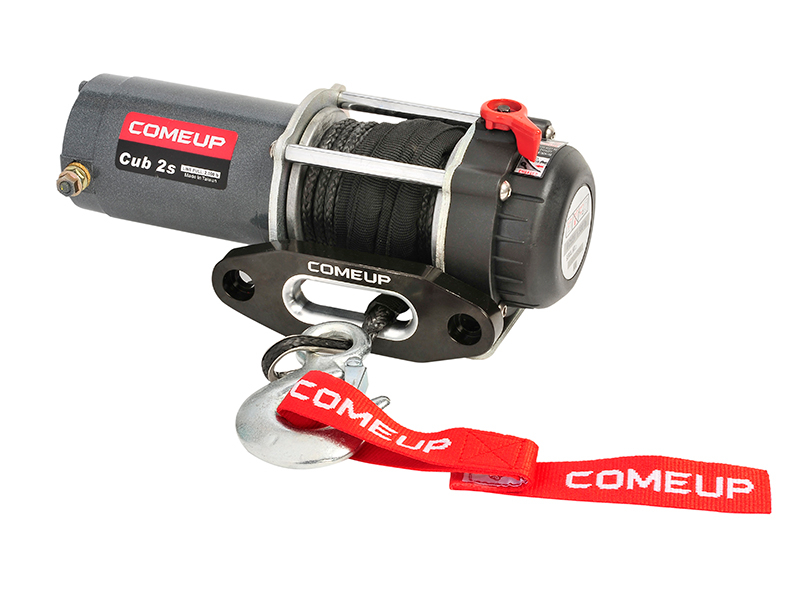

Cub 2s

High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Winch drum centered avoids tire interference of rope and provides streamlined appearance.
Mechanical spring applied and permanent magnet motor dynamic brakes together.
Cam activated clutch device for rapid rope payout.
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Part number: PN 122112
Rated line pull: 907 kg (2,000 lb) single line
Motor: 600 w / 0.8 hp 12V permanent magnet
Gear train: 3-stage planetary 103:1
Clutch (freespooling): Cam activated
Brake: Mechanical spring applied and permanent magnet motor dynamic brakes together
Winch construction: Aluminum die cast drum and steel plate housings
Drum size: 38 x 75 mm (1.5” x 3”)
Control: Handlebar rocker switch
Rope type: Synthetic rope
Rope size: 4 mm x 15.2 m (5/32” x 50’)

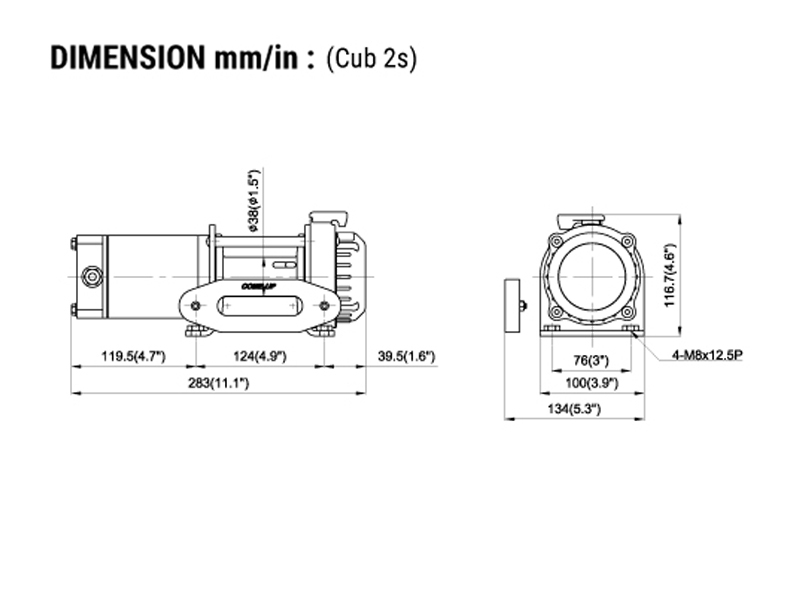

Mounting bolt pattern: 76 x 124 mm (3” x 4.9”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1^st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.
