Project Overview:

This project was developed for Fu Shuo Hydraulics to meet the needs of maintenance market applications. COMEUP designed a customized hydraulic winch specifically for 500 kg compact jib crane equipment.

Based on the existing DH-500 model, the design was optimized and upgraded into the H-500L hydraulic winch. The final solution significantly improves operational stability and safety, making it suitable for high-frequency lifting operations in maintenance applications.

• Customer: Fu Shuo Hydraulics
• Prototype Model: DH-500

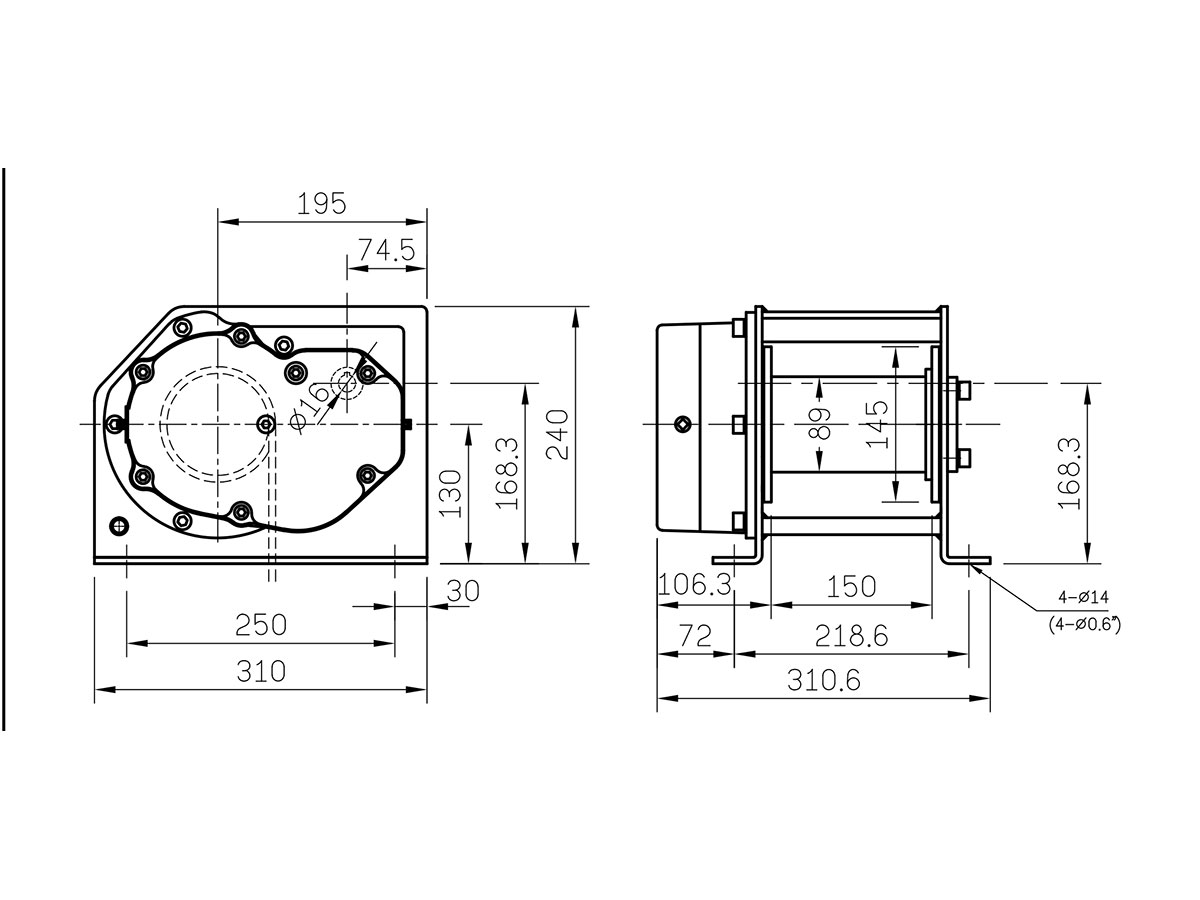

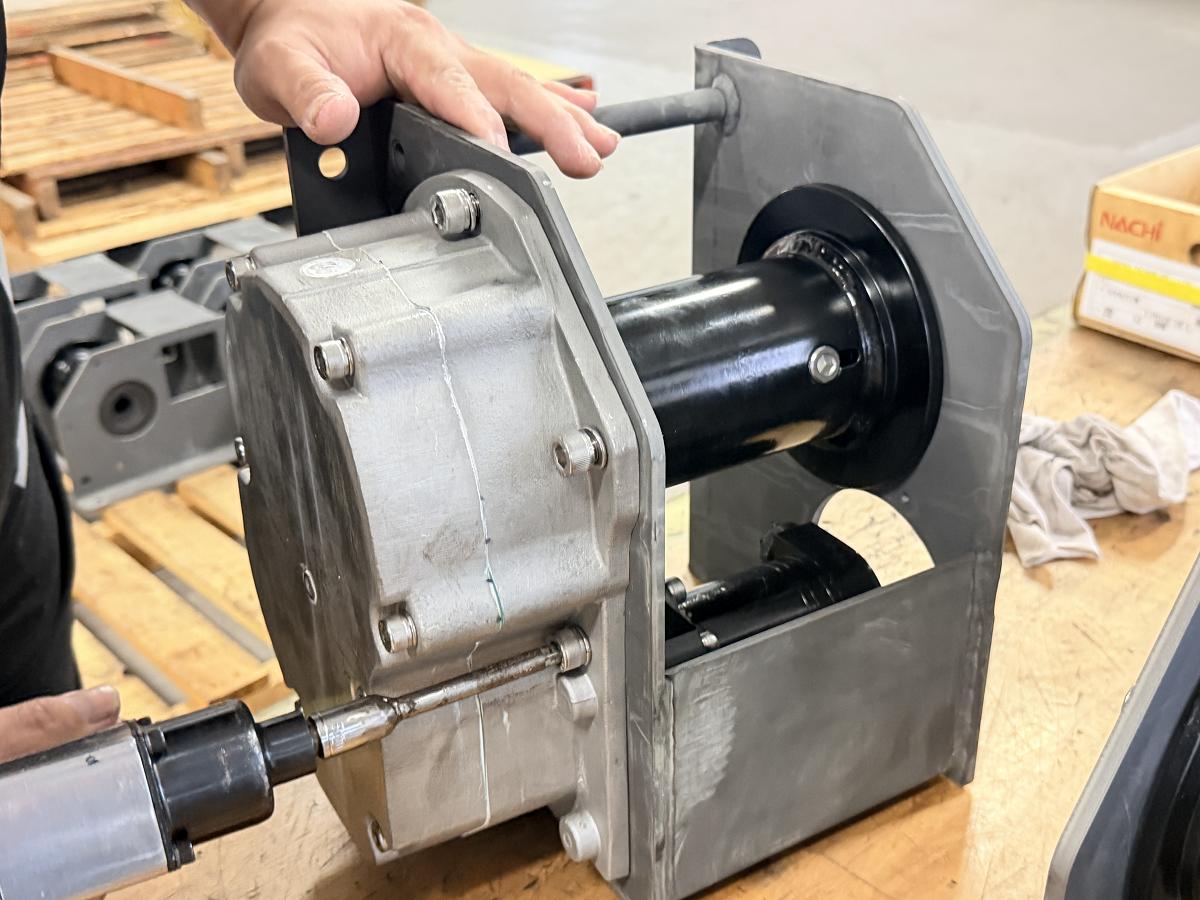

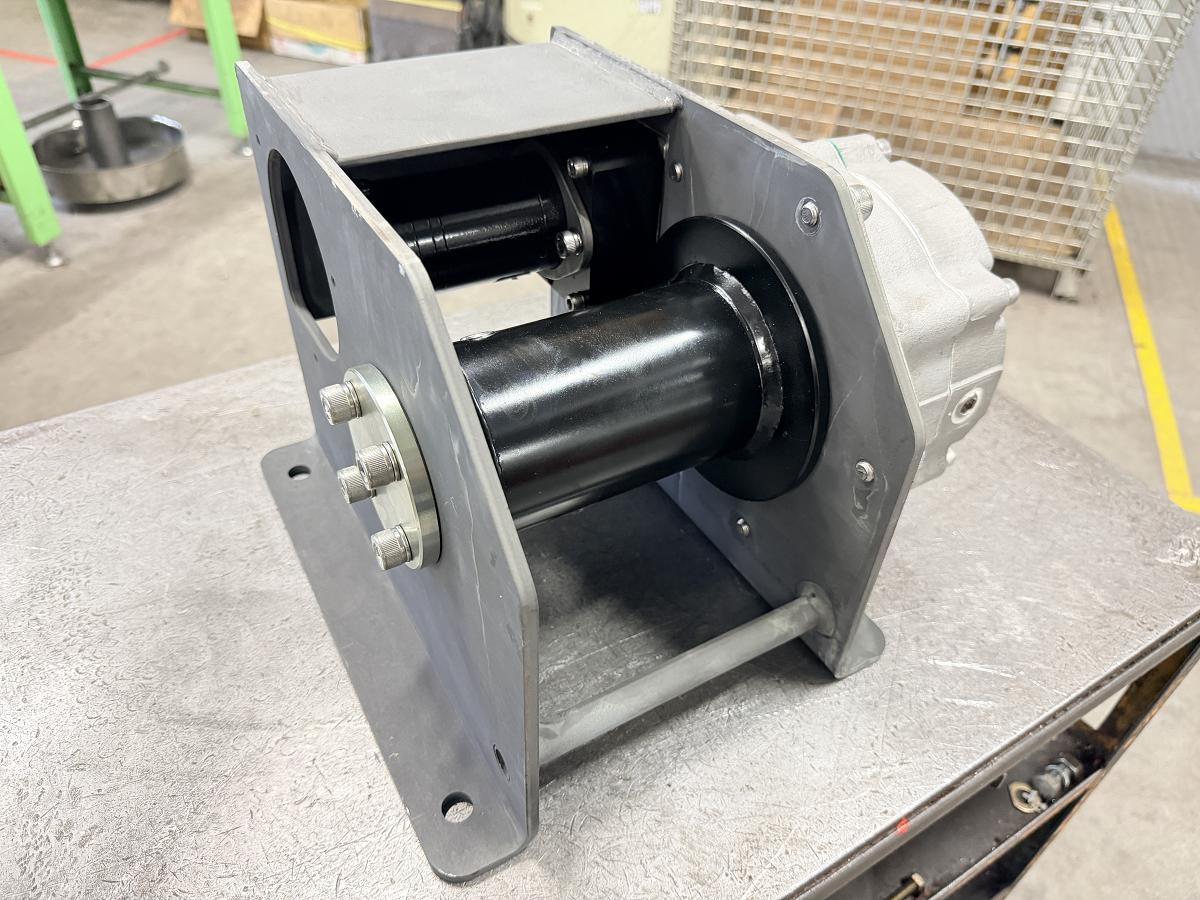

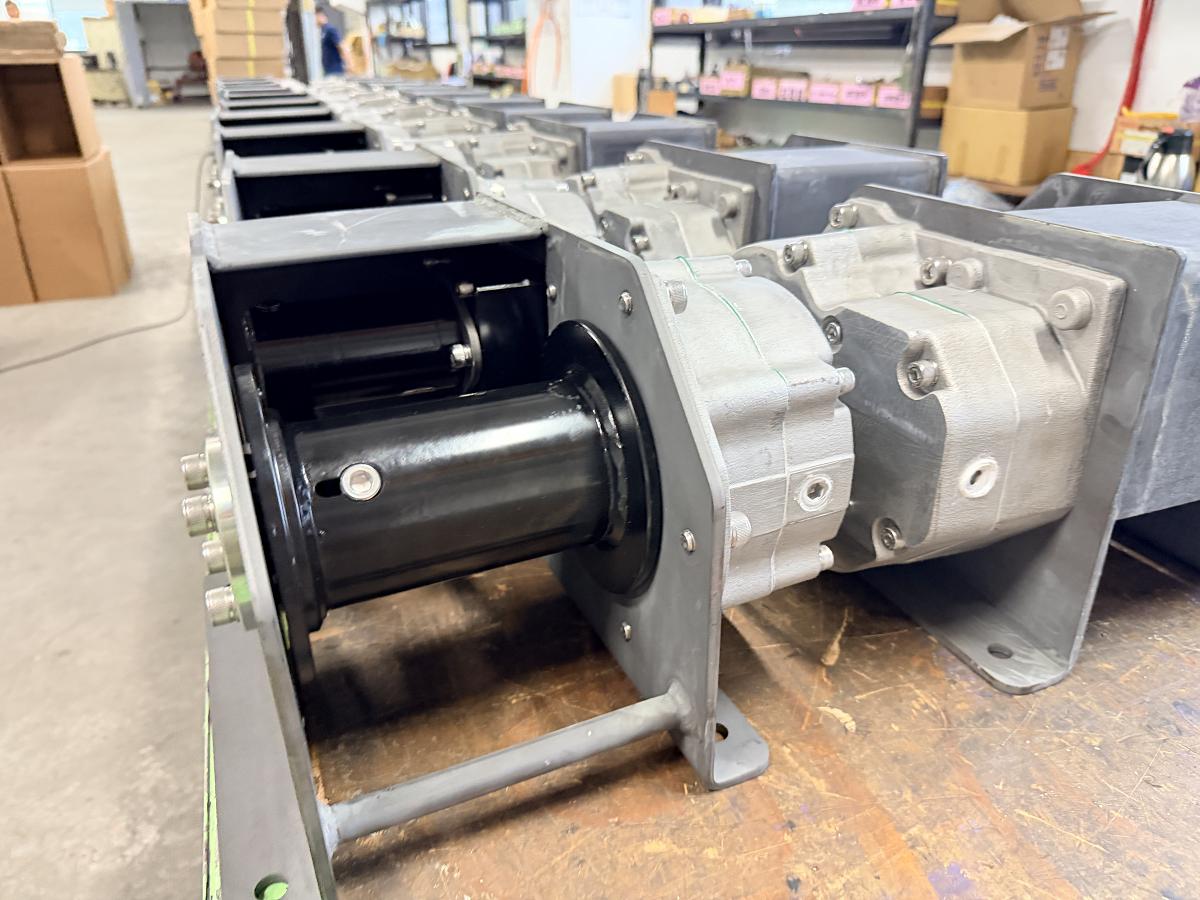

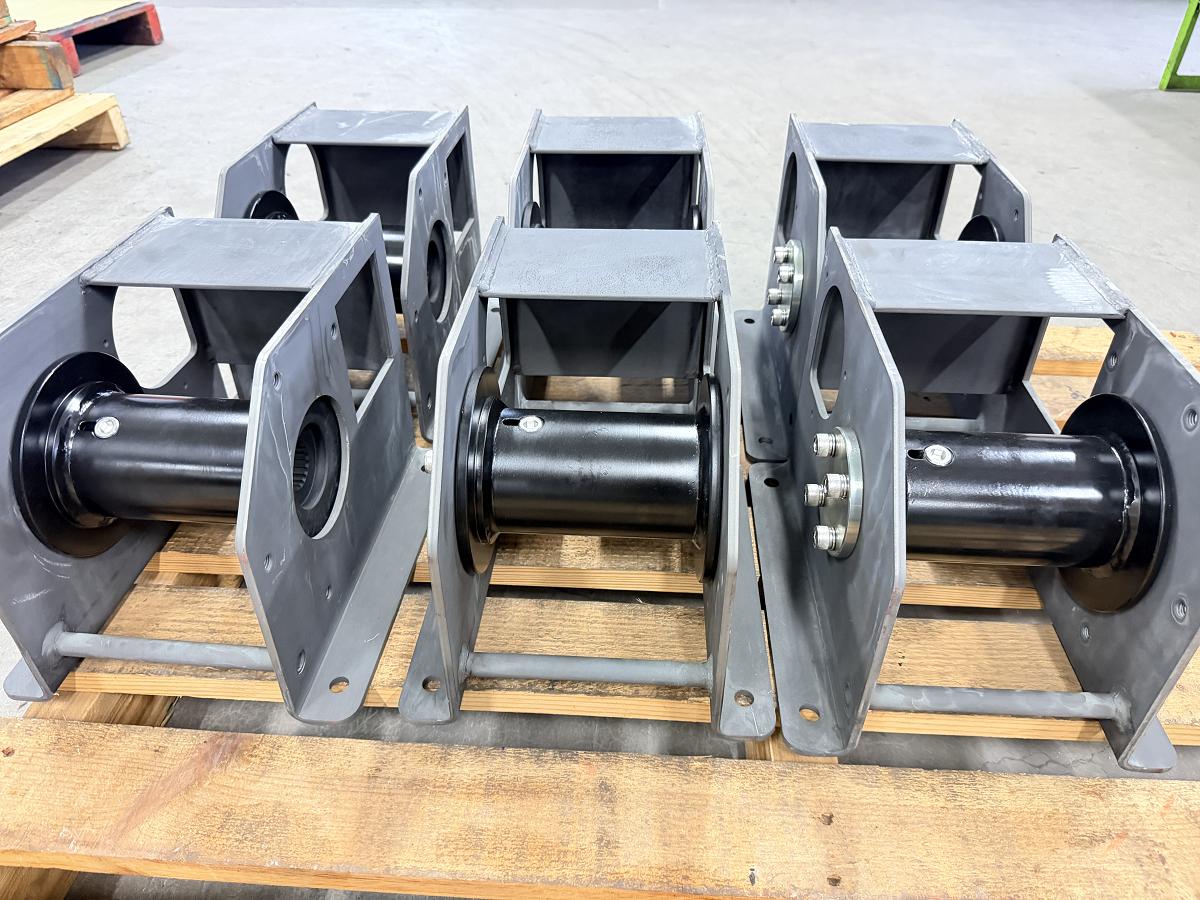

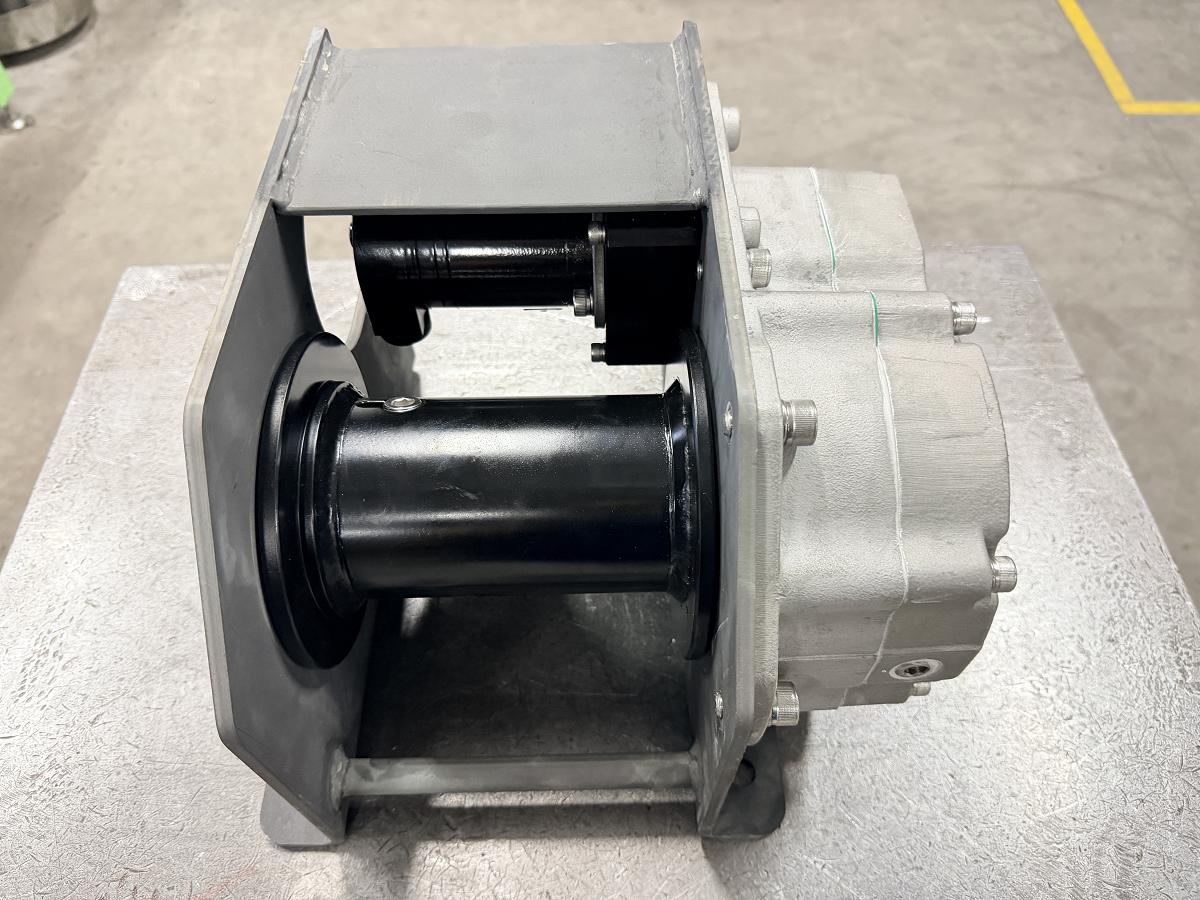

• Customized Model: H-500L Hydraulic Winch
• Specifications
  • Rated Load: 500 kg
  • Single-Line Speed: 5–6.6 m/min
  • Hydraulic Motor: MAMMS 20
  • Working Pressure: 100 bar
  • Working Flow: 20 LPM
  • Gear Ratio: 59:1
  • Wire Rope: Not Included
  • Brake Type: Ratchet-Type Mechanical Brake

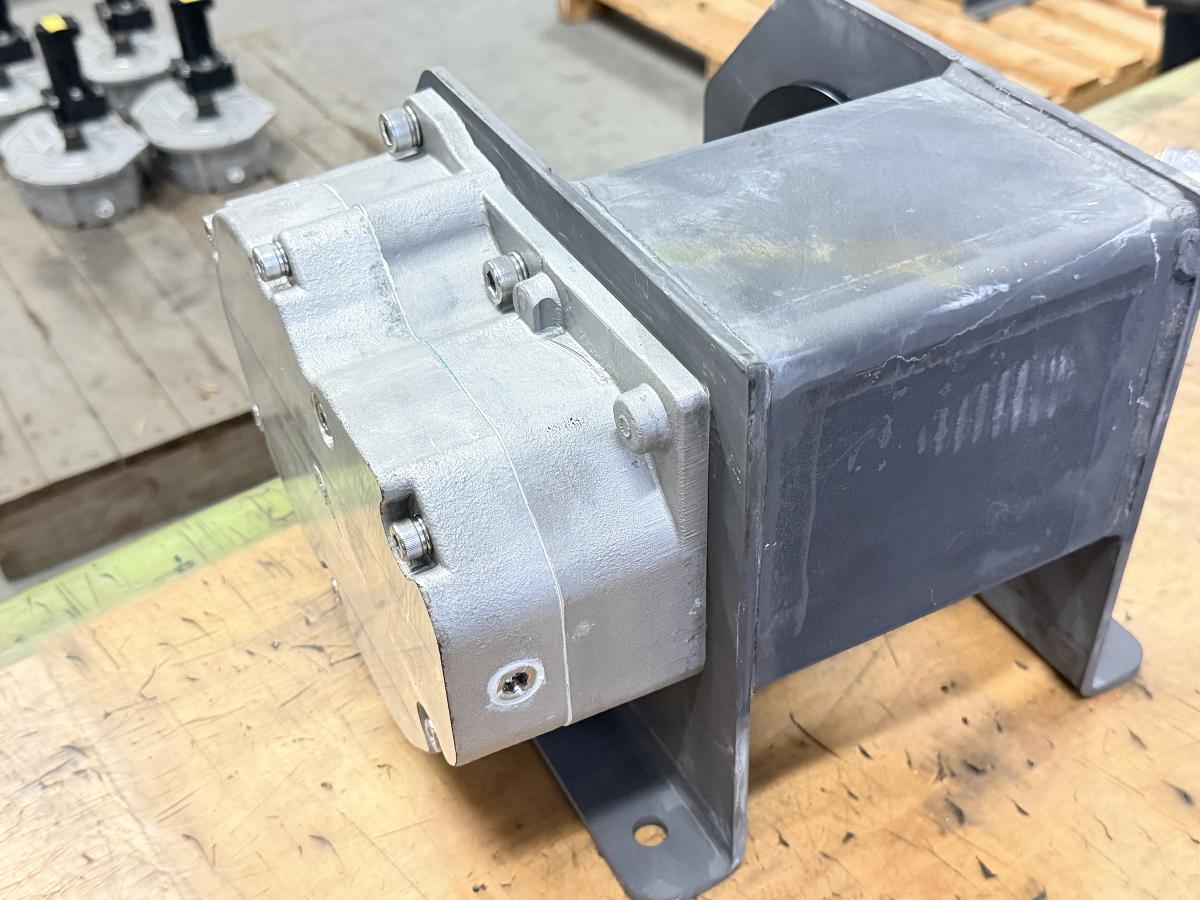

  • Reduction Mechanism: Compound Gear Reduction System
  • Project Duration: 37 Weeks

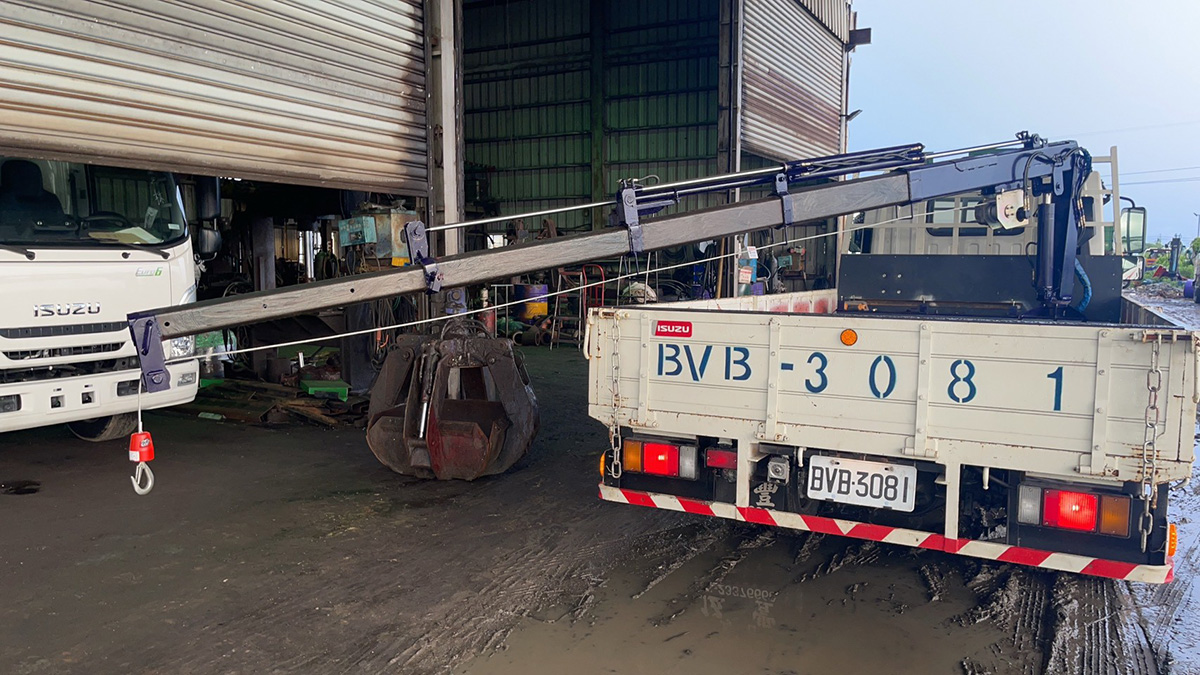

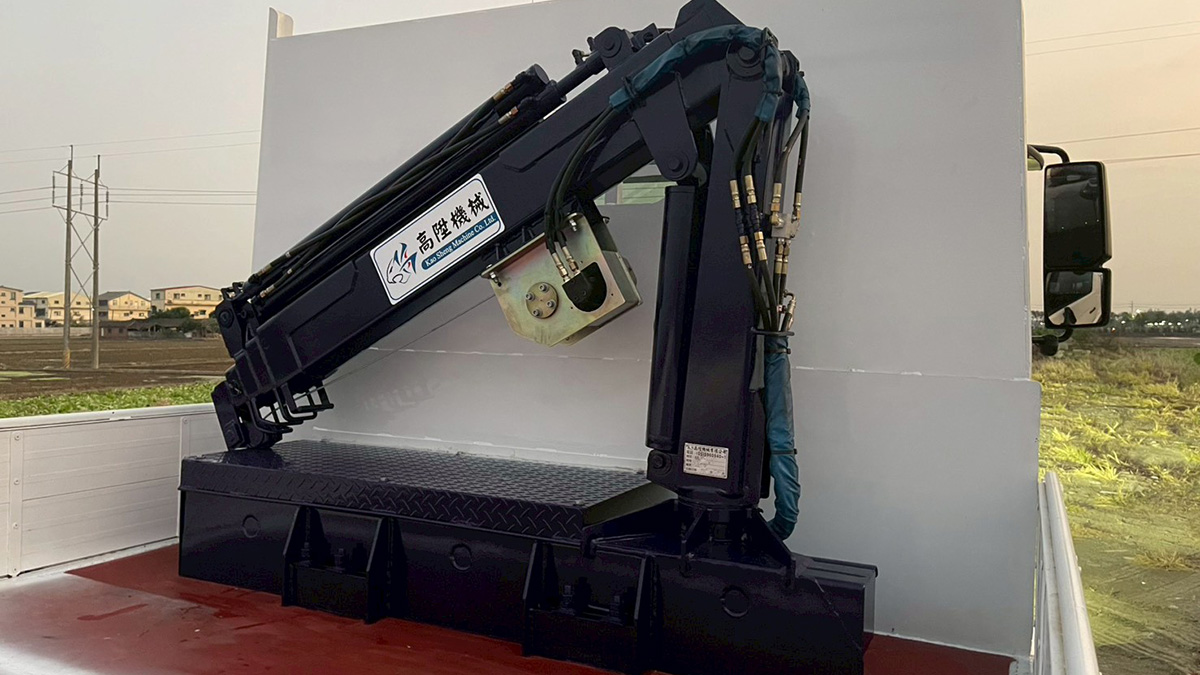

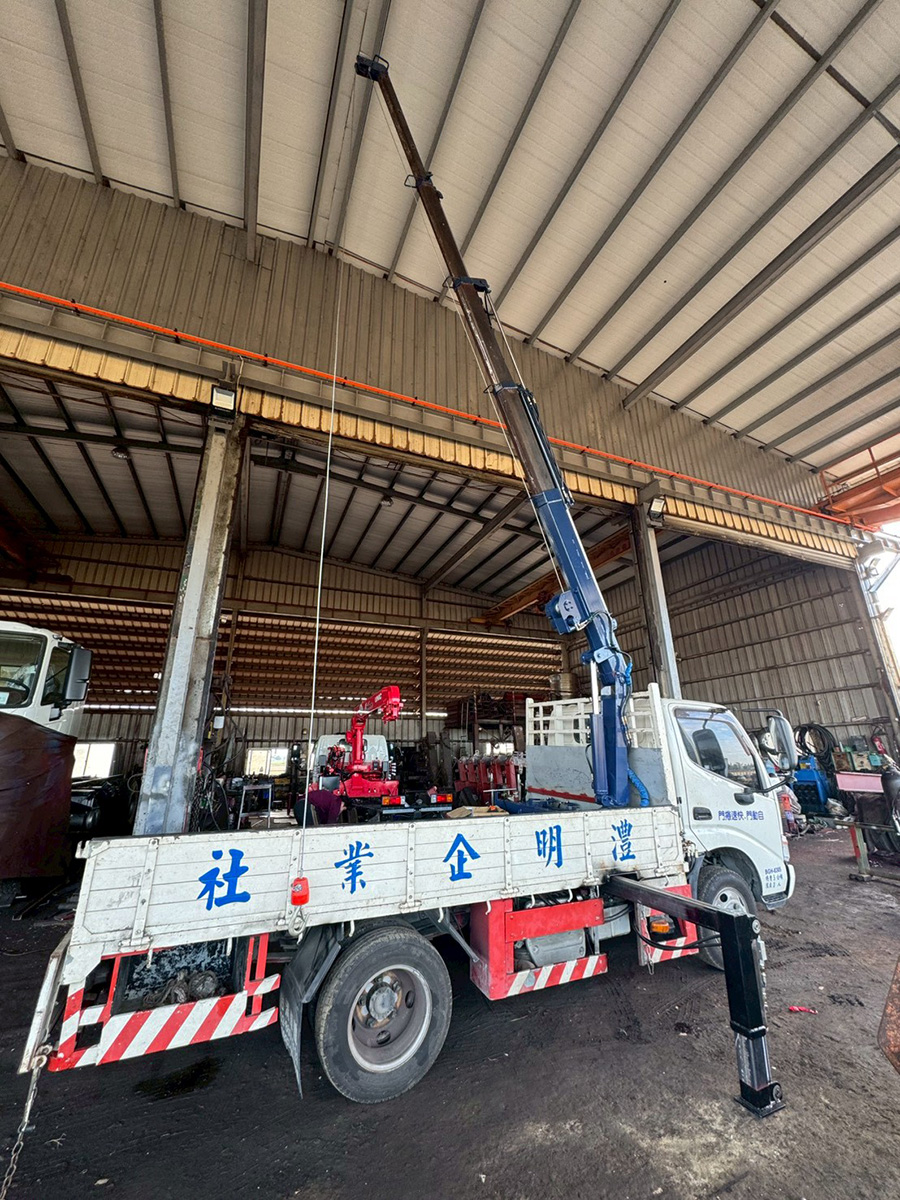

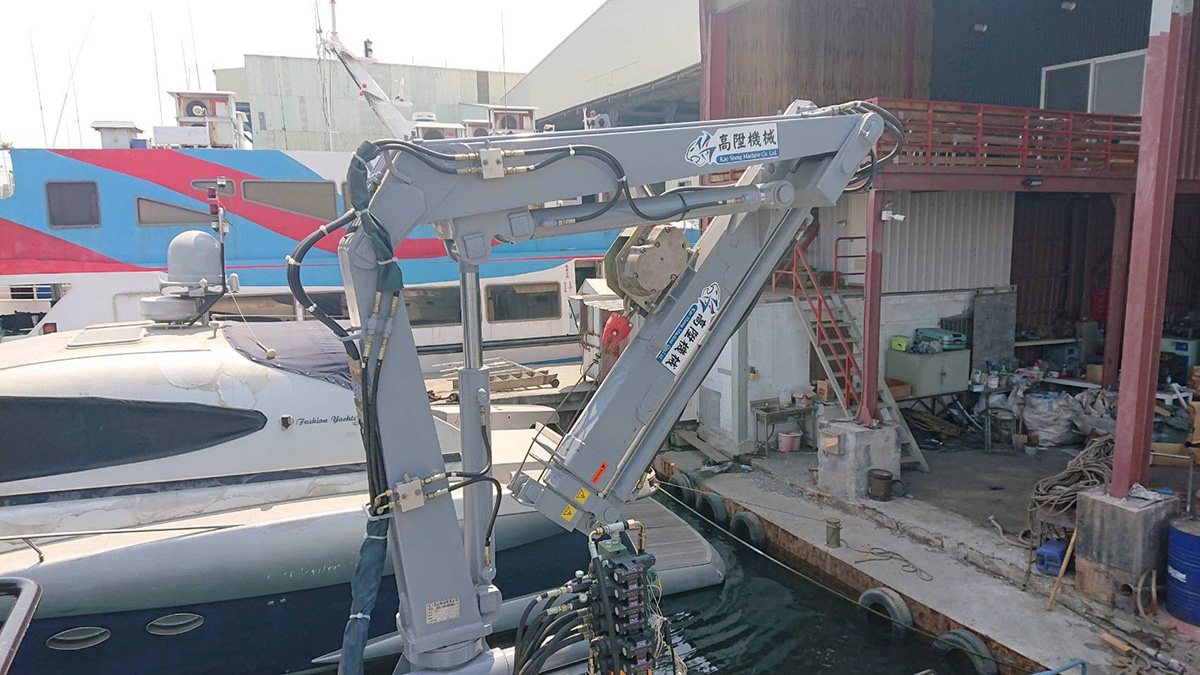

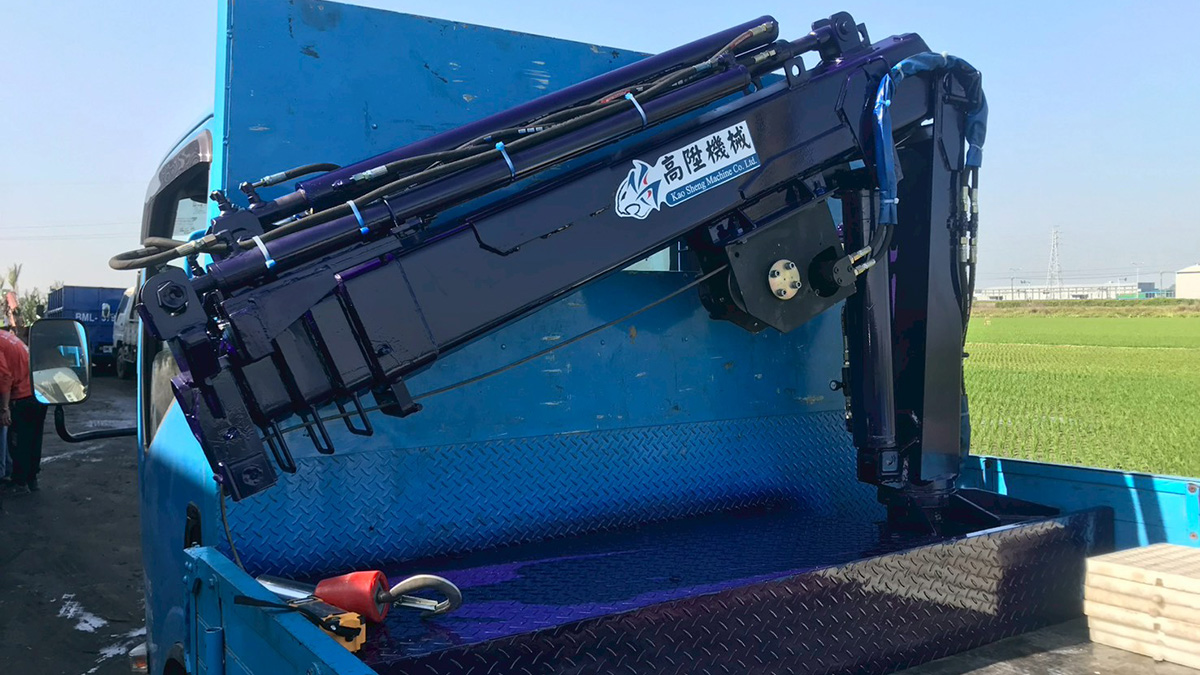

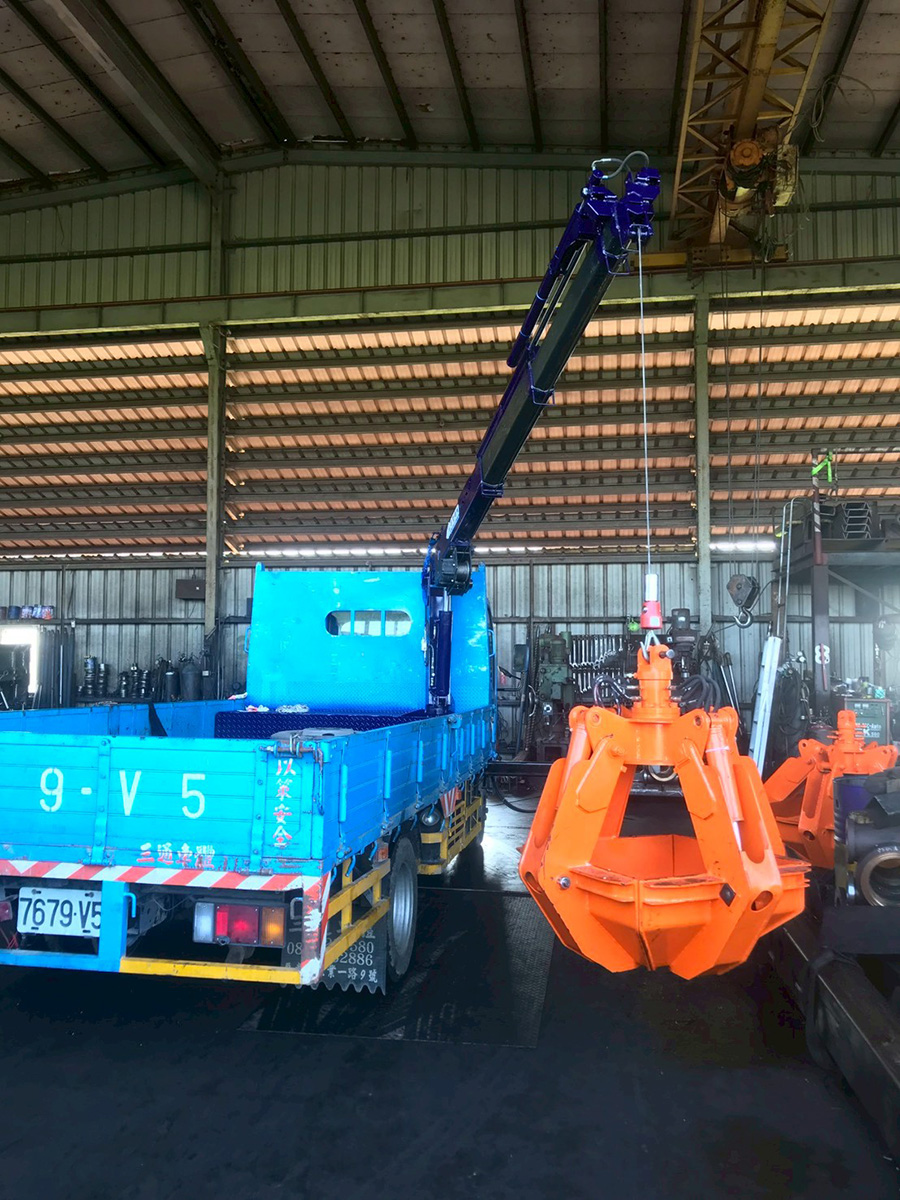

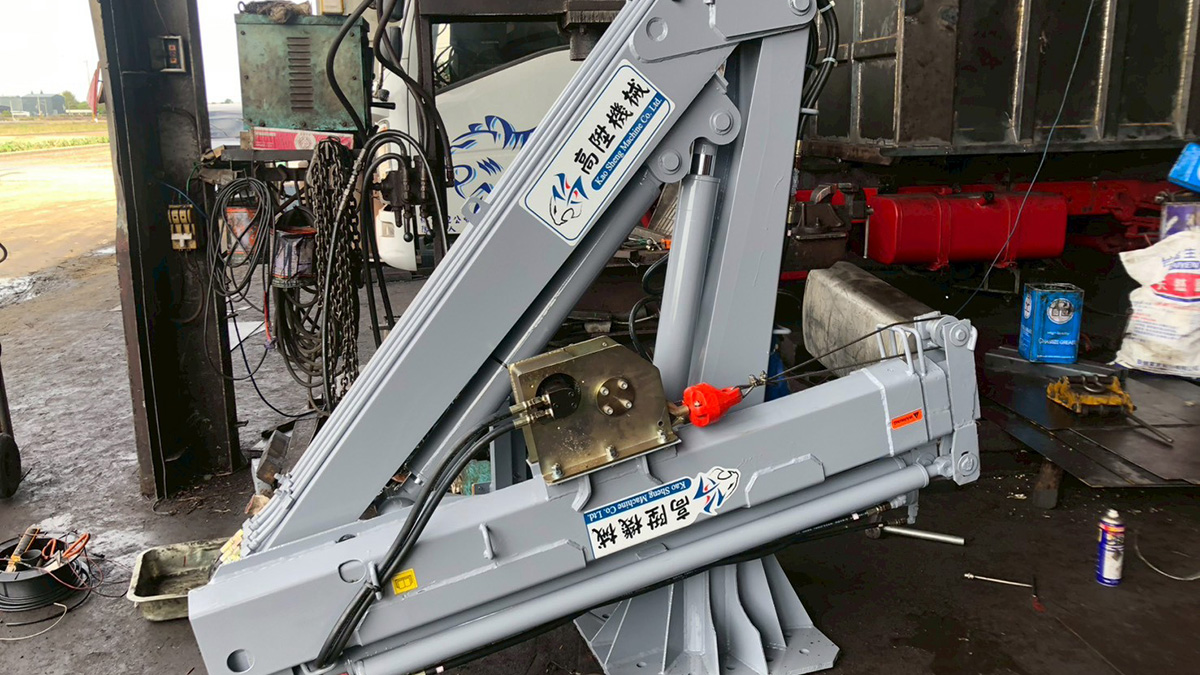

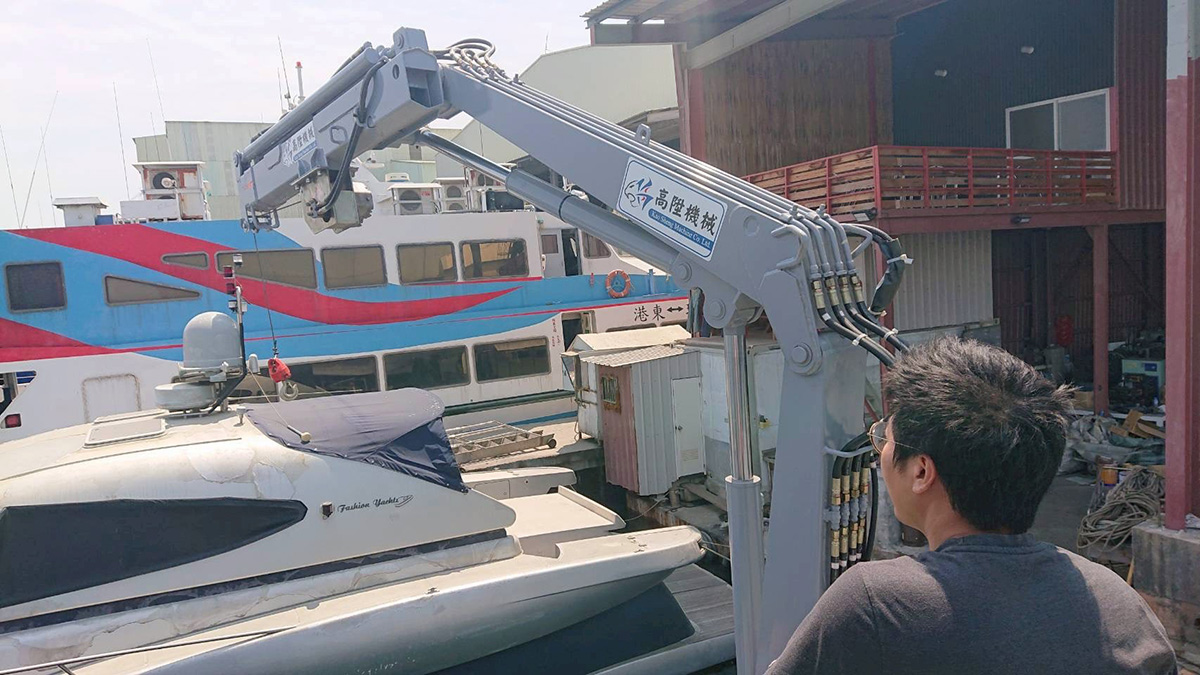

  • Application: Compact jib crane installation and maintenance market

Solution :

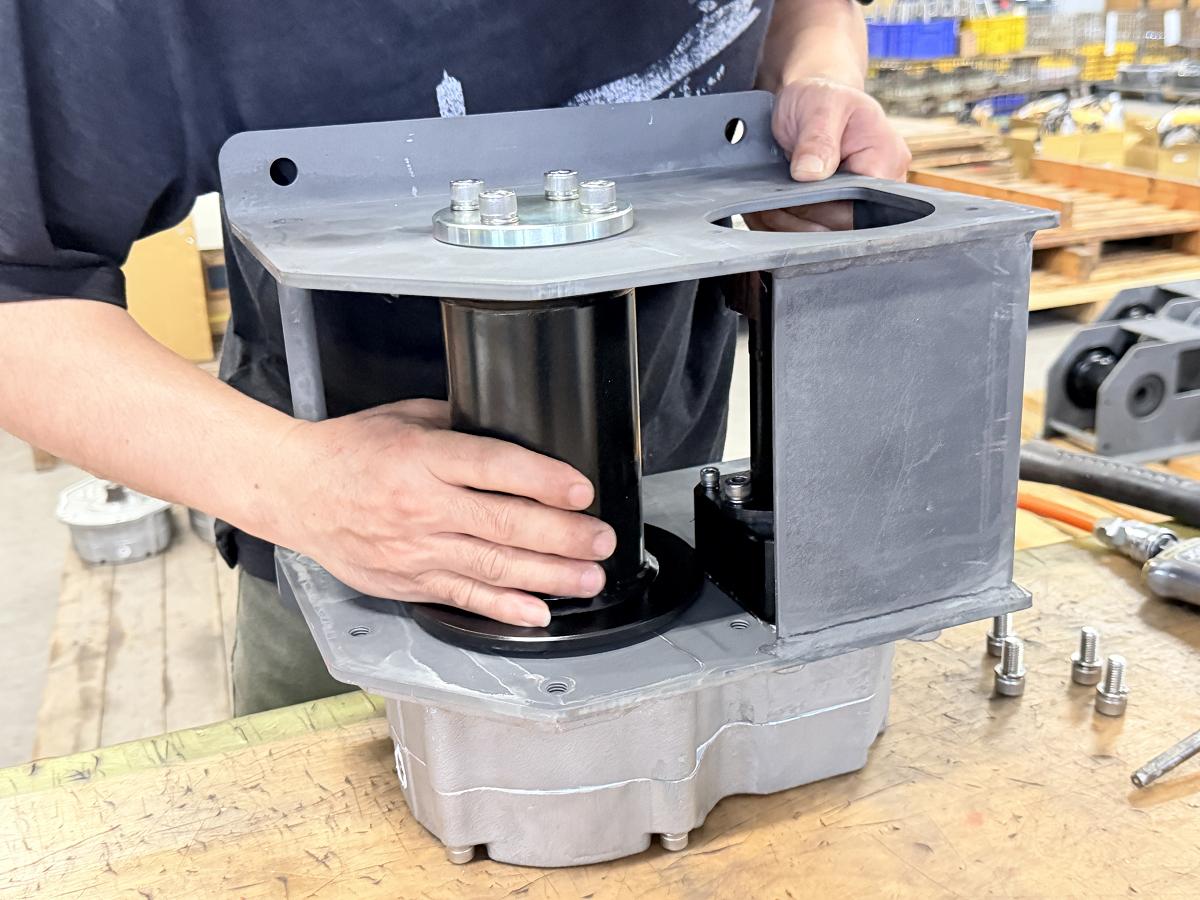

To meet the customer’s requirements, COMEUP developed the customized H-500L hydraulic winch by integrating hydraulic and mechanical design into a stable, safe, and efficient lifting solution.

✔ Stable Power Output

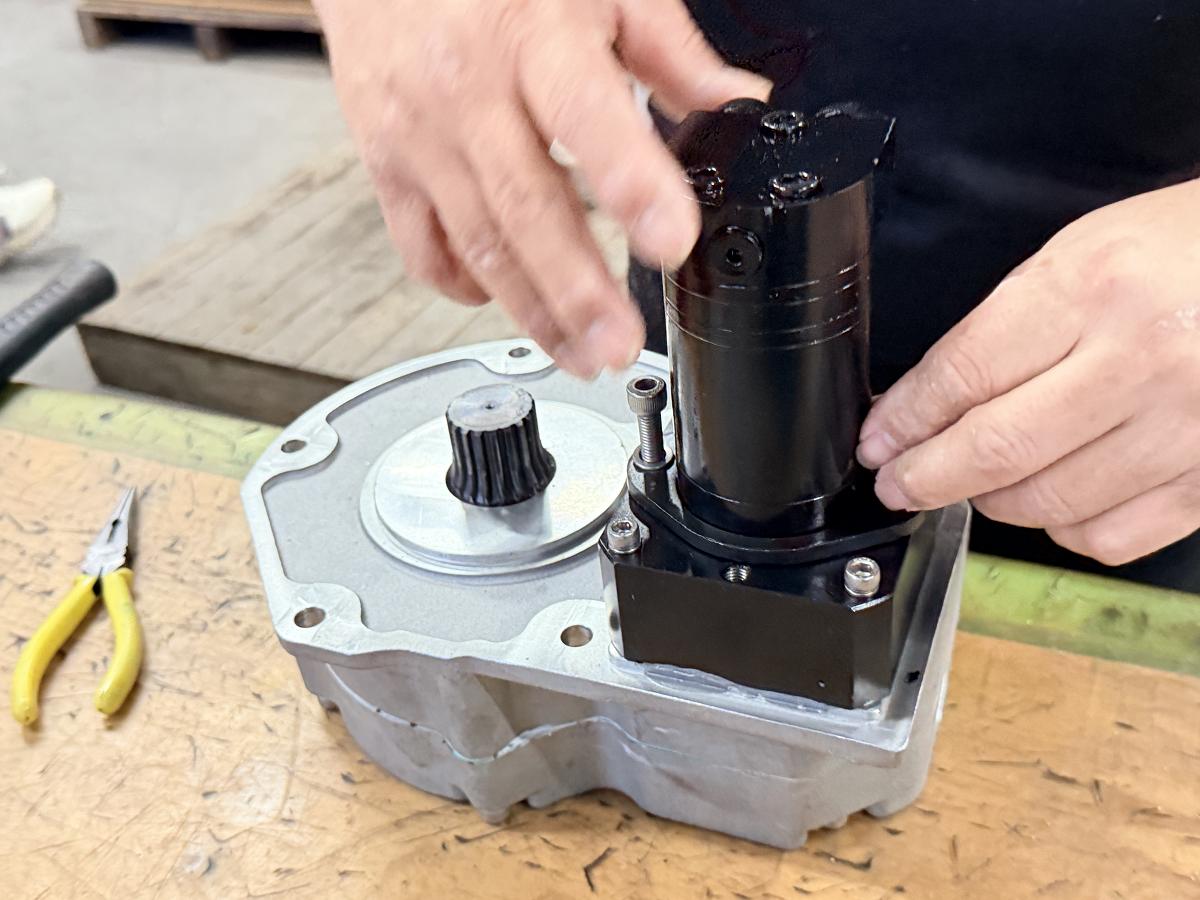

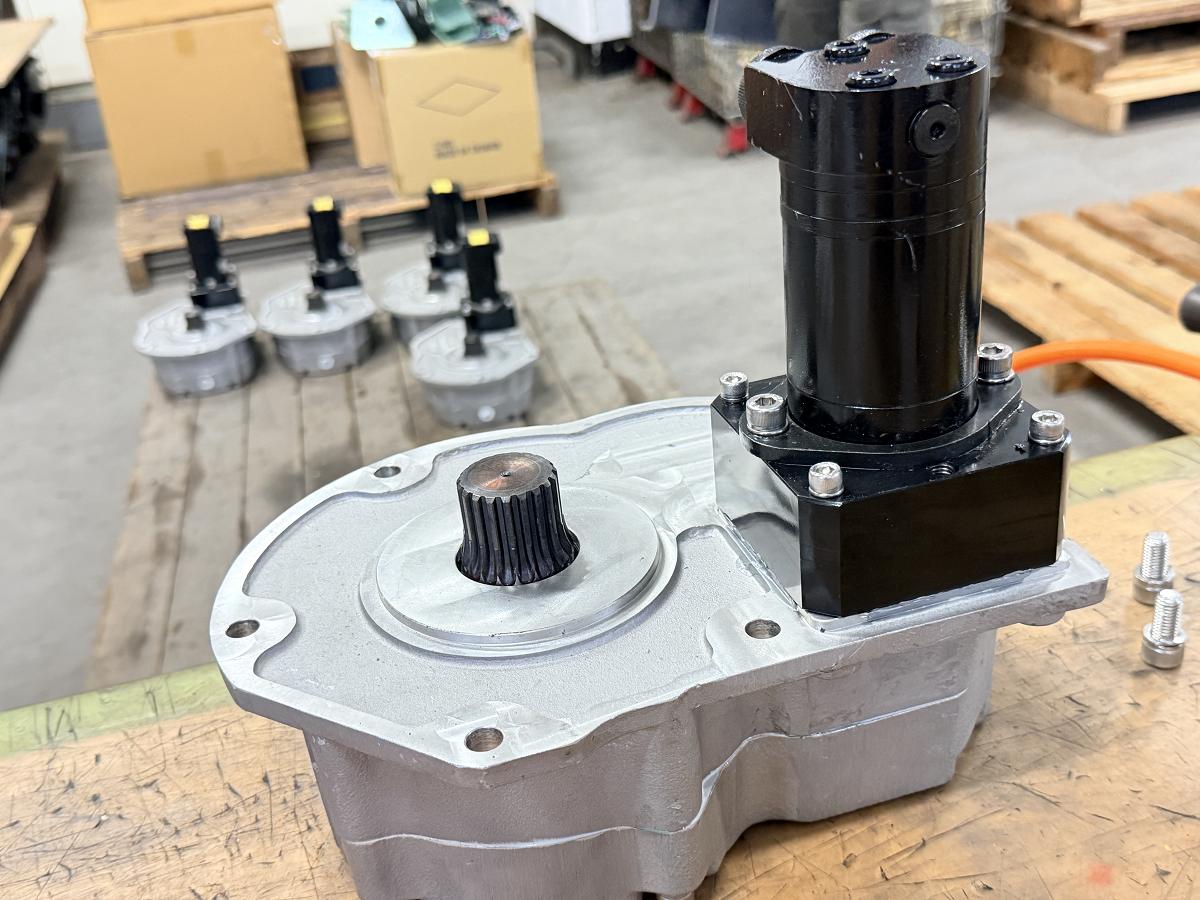

Equipped with a MAMMS 20 hydraulic motor, the winch delivers stable torque output to ensure smooth lifting operation.

✔ High-Torque Reduction Design
The 59:1 gear ratio, combined with a compound gear reduction system, effectively increases output torque while maintaining a compact design.

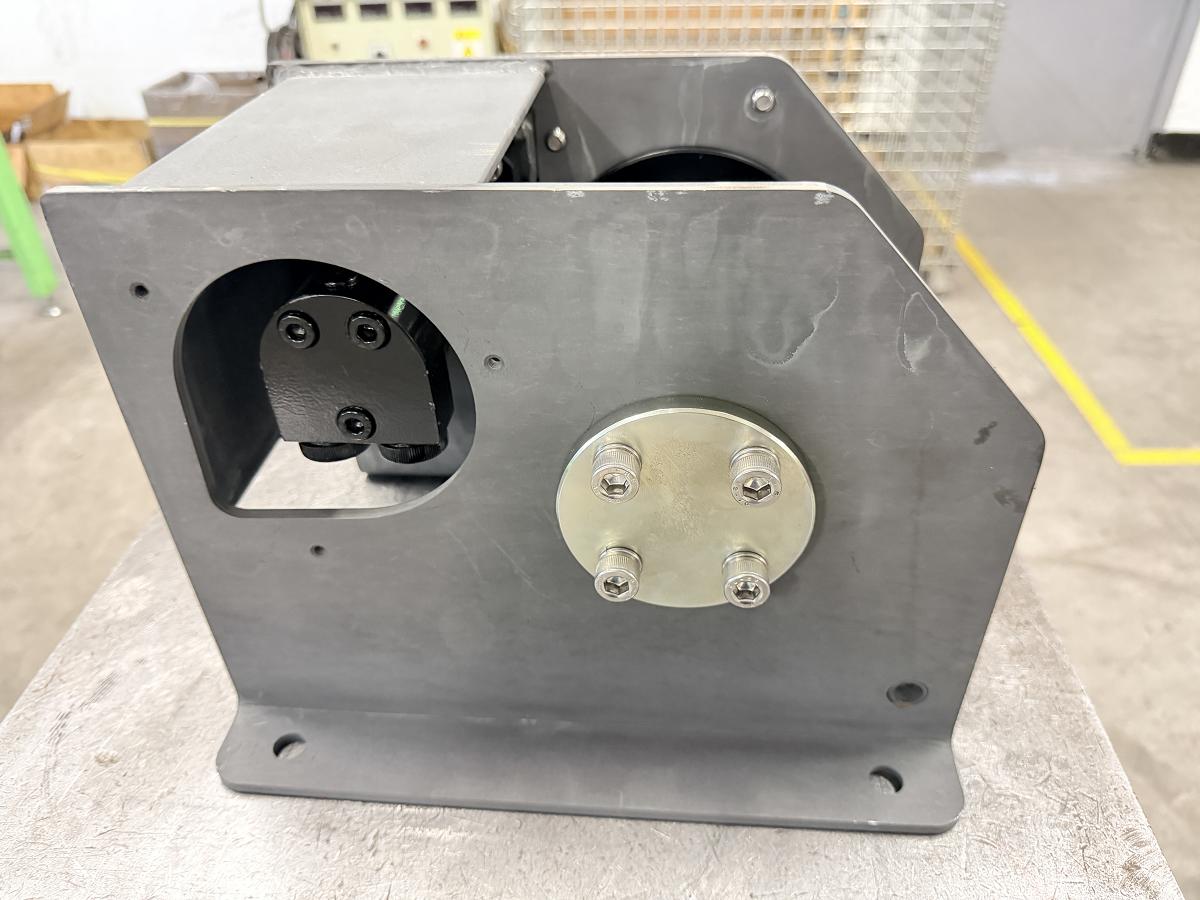

✔ Safety Brake Mechanism
The ratchet-type mechanical brake prevents load rollback, enhancing safety during maintenance operations.

✔ Precise Speed Control
The lifting speed is controlled at 5–6.6 m/min, improving operating precision and work efficiency.

Project Results:

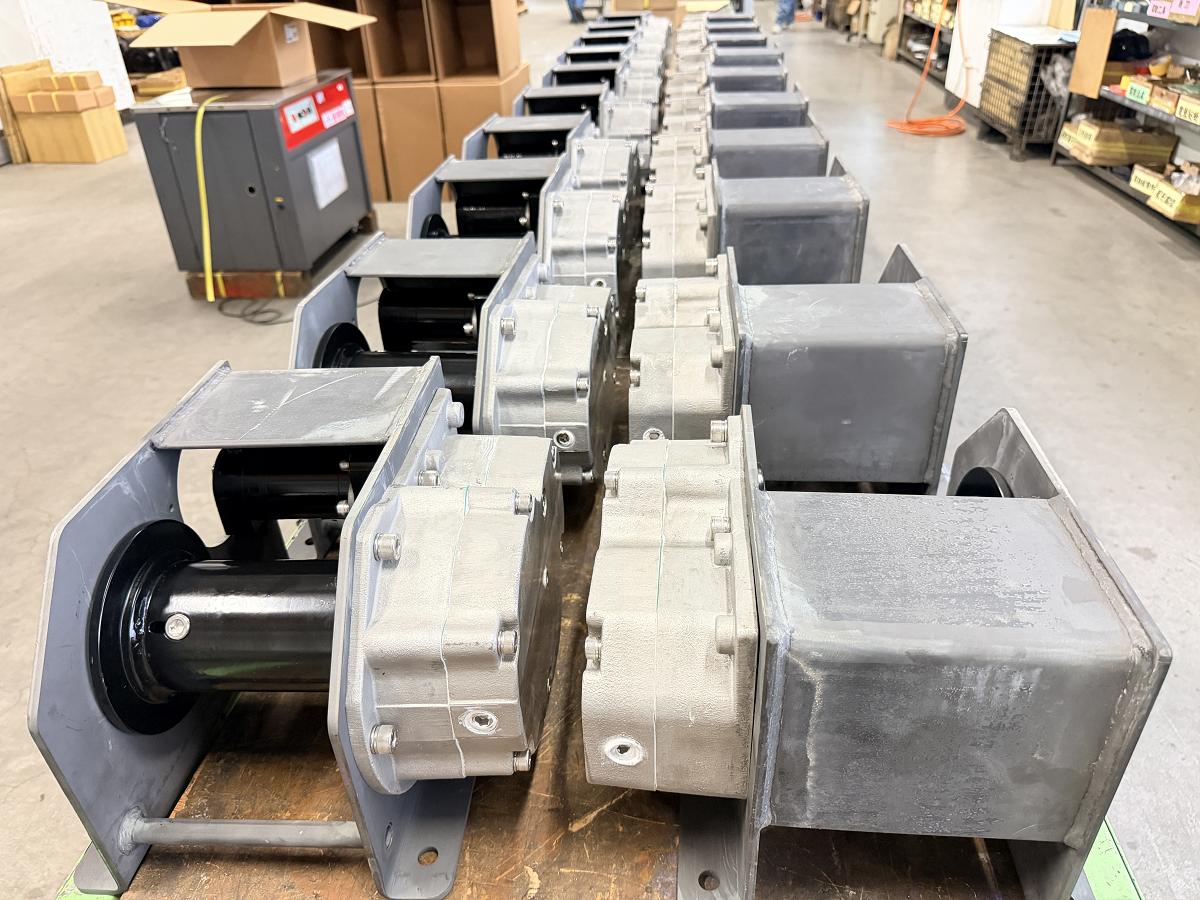

• Successfully developed a 500 kg hydraulic winch solution that meets maintenance market requirements.
• Improved the efficiency and safety of compact jib crane operations.
• Enhanced stability and durability under high-frequency use.
• Reduced installation limitations and system integration complexity through customized design.
