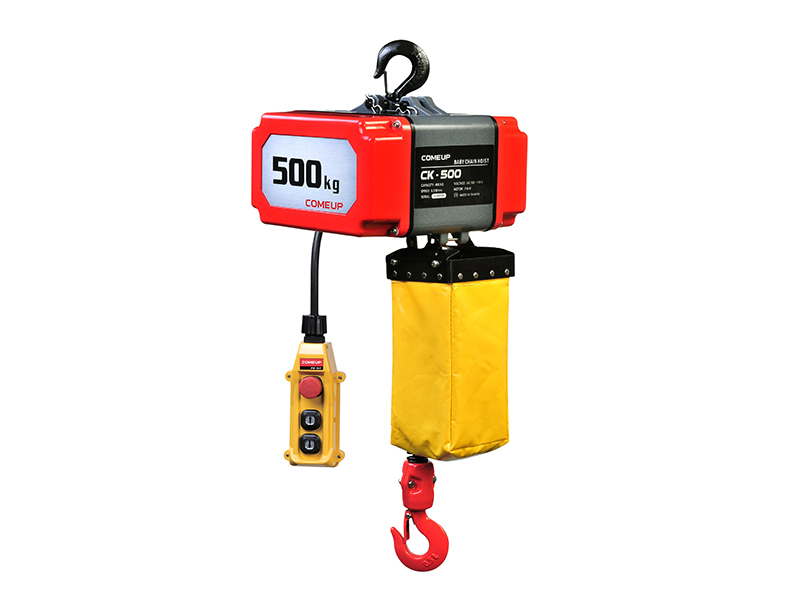

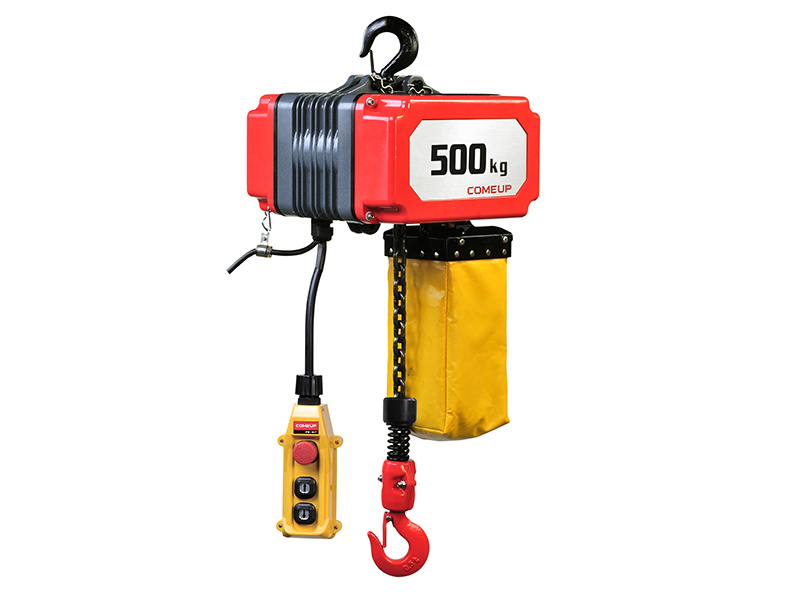

CK-500

500 kg lifting load. 100 - 240V

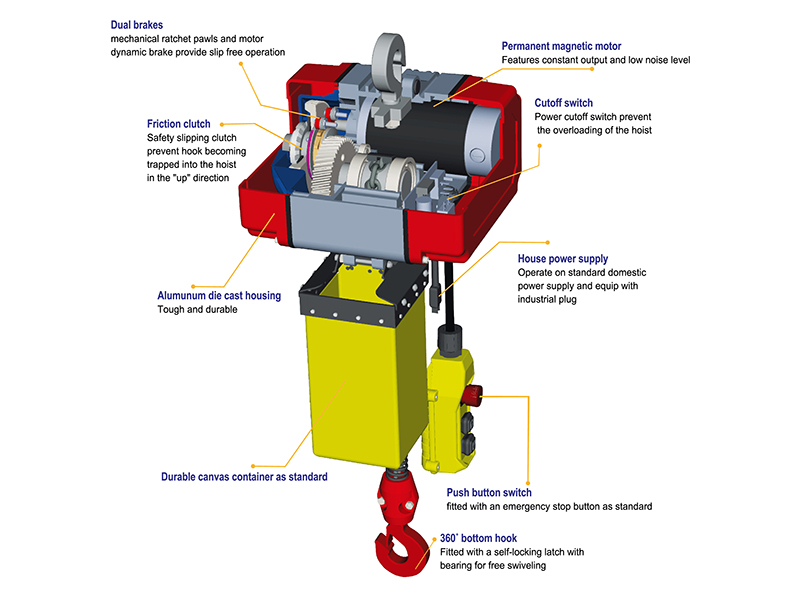

  • Permanent magnetic motor features constant output and low noise level.
  • Lightweight and compact designs are ideal for easy installation.
  • Dual brakes for double mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
  • Safety slipping clutch prevents hook becoming trapped into the hoist in the "up" direction
  • Power cutoff switch prevent the overloading of the hoist
  • Tough aluminum die cast housing provides massive structural durability.
  • Can operate on standard domestic power supply and equip with industrial plug
  • A switch w/emergency stop comes as standard;
  • A 360° bottom hook fitted with a self-locking latch has a bearing is capable of swiveling with the safe working load applied
  • Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7
